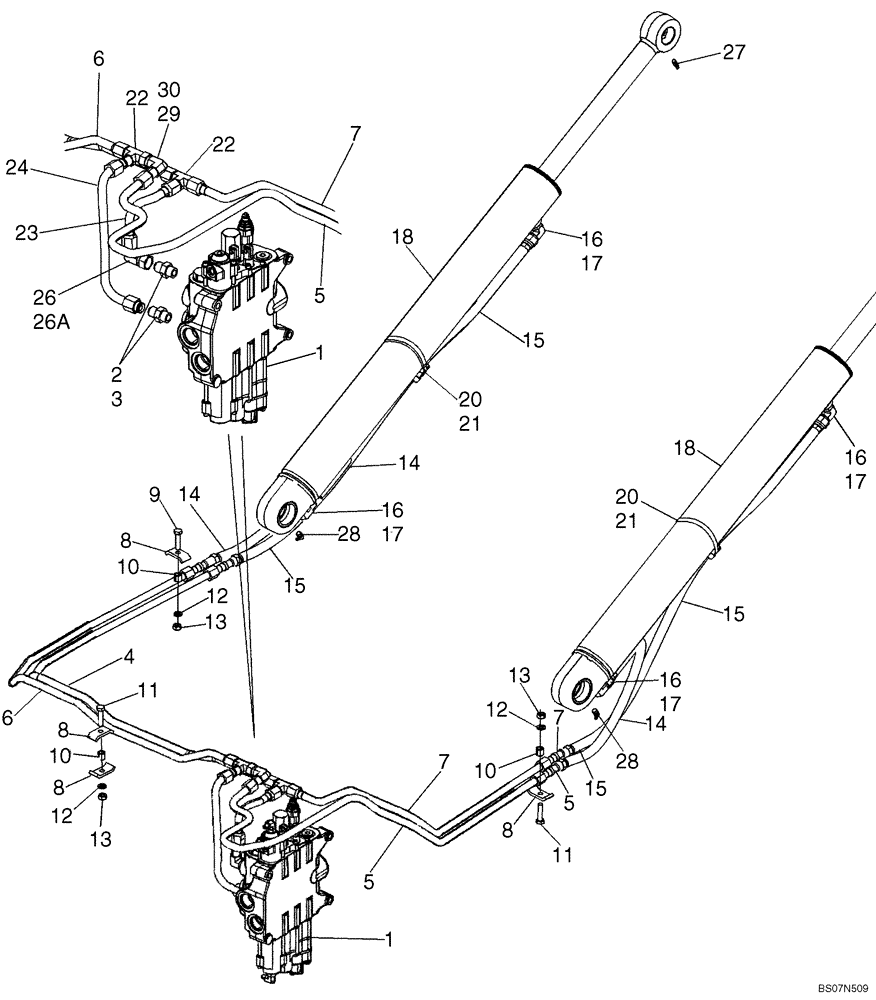

Запчасти Case 580M (08-04) - HYDRAULICS - CYLINDER, LOADER LIFT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
LOADER CONTROL VALVE; For Correct Assembly and Components, See Figures 08-30, 08-31; For Mounting, See Figure 09-01
1шт.
2
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
Incl. Ref 3
2шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
4
87622718
HYD TUBE,.625" OD
Upper Lift Port
1шт.
5
87712299
HYD TUBE
Lower Lift Port
1шт.
6
87622714
HYD TUBE,.625" OD
Lower Lift Port
1шт.
7
87642658
HYD TUBE
Upper Lift Port
1шт.
8
D138055
CLAMP
5шт.
9
614-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd
1шт.
10
120303A1
SPACER,11mm ID x 15.82mm OD x 15mm Thk
4шт.
11
614-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd
3шт.
12
892-11010
LOCK WASHER,M10
4шт.
13
829-1410
NUT,M10 x 1.5, Cl 10.9
4шт.
14
87443150
HYDRAULIC HOSE,7/8" - 14 JIC, 740mm L
740 mm (29-5/32 in)
2шт.
15
87443149
HYDRAULIC HOSE,7/8" - 14 JIC, 1130mm L
1130 mm (44-1/2 in)
2шт.
16
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Incl. Ref 17
4шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
18
384240A1
LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke
82.6 ID x 766 mm strk; Loader; See Figure 08-58
2шт.
18
384240A1R
REMAN-HYD CYLINDER
Lift Cylinder
2шт.
18
384240A1C
CORE-HYD CYLINDER
Return Number
2шт.
21
214-1472
HOSE CLAMP,#72, 4.06" - 5", Type F Worm
2шт.
22
218-595
TEE,7/8"-14, 37 Degree
2шт.
23
87625976
HYD TUBE
Upper Lift Port
1шт.
24
87675513
HYD TUBE
Lower Lift Port
1шт.
26
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
Incl. 26A
1шт.
26a
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
27
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
28
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
2шт.
29
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
Incl. 30
1шт.
30
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
