Запчасти Case 580M (07-05A) - BRAKE LINES TO TRANSMISSION - 4WD (07) - BRAKES

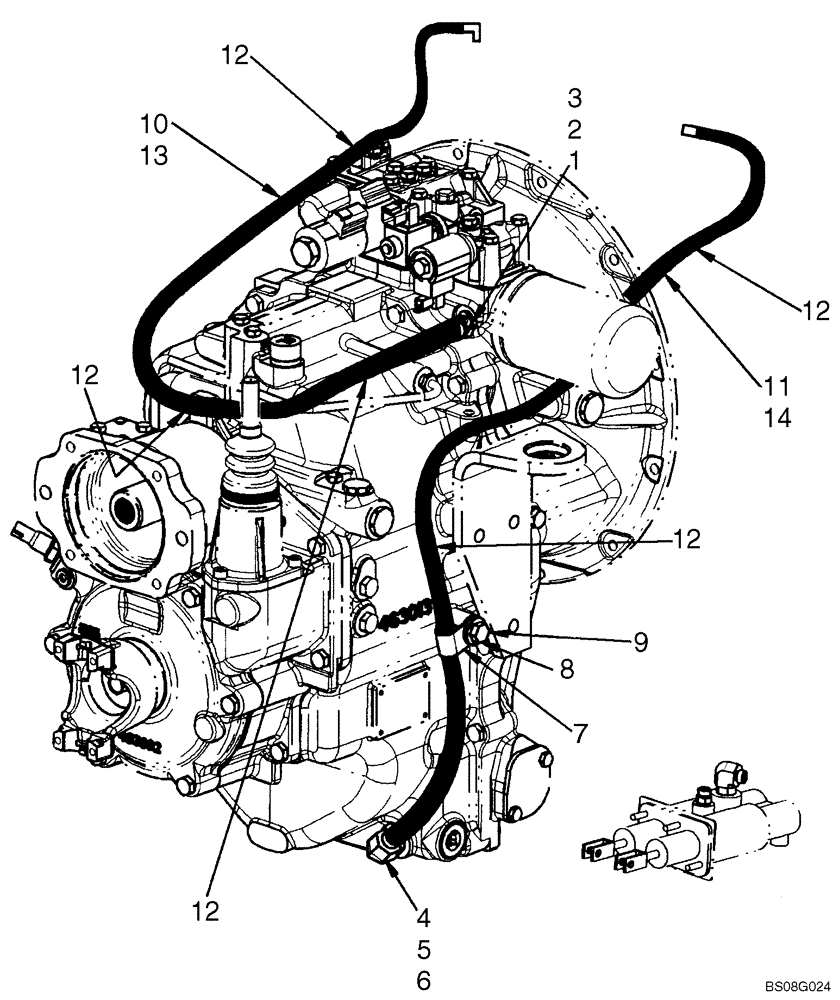

Схема запчастей Case 580M - (07-05A) - BRAKE LINES TO TRANSMISSION - 4WD (07) - BRAKES
1
7
8
9
12
3
12
2
11
12
14
6
4
12
10
12
5
13

Артикул

Название

Примечание

Количество

1

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 2, 3

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Face Seal End

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Boss End

1шт.

4

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl. 5, 6

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

7

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

10

87603513

BRAKE LINE,9.5mm ID x 1525mm L

1525 mm; Supply

1шт.

11

87603514

BRAKE LINE,9.5mm ID x 1425mm L

1425 mm; Return

1шт.

12

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

450 mm Long; No Longer Used; For Service Order (2) Ref 13, 87491619

5шт.

13

87491619

GUARD,19.1mm ID x 1400mm L

Hose Guard; 1400 mm Long

1шт.

14

87491620

GUARD

Hose Guard; 1090 mm Long

1шт.

Выбрано товаров: 14
