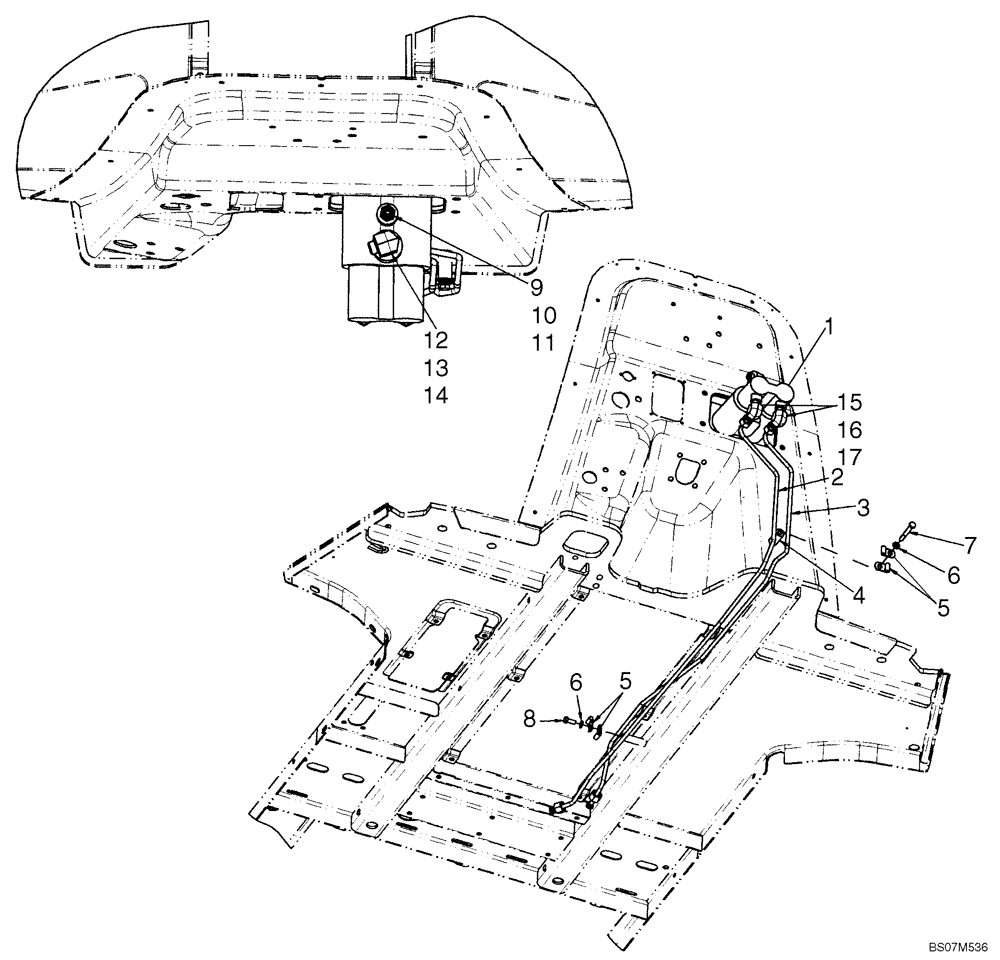

Запчасти Case 580M (07-04) - HYDRAULICS - BRAKE MASTER CYLINDER (07) - BRAKES

1

87714038

MASTER CYLINDER,130.25mm Stroke

See Figure 07-07

1шт.

1

87714038R

REMAN-MASTER CYLINDE

580M SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

1

87714038C

CORE-MASTER CYLINDER

Return Number

1шт.

2

87697589

TUBE,9.525 mm OD x 1036.7 mm L

RH Brake

1шт.

3

87697590

TUBE,9.5255 mm OD x 982.6 mm L

LH Brake

1шт.

4

87449579

SPACER,9.5mm ID x 19.05mm OD x 40mm L

Brake Tube

1шт.

5

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

4шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

9

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 10, 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 13, 14

1шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

15

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 16, 17

2шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
