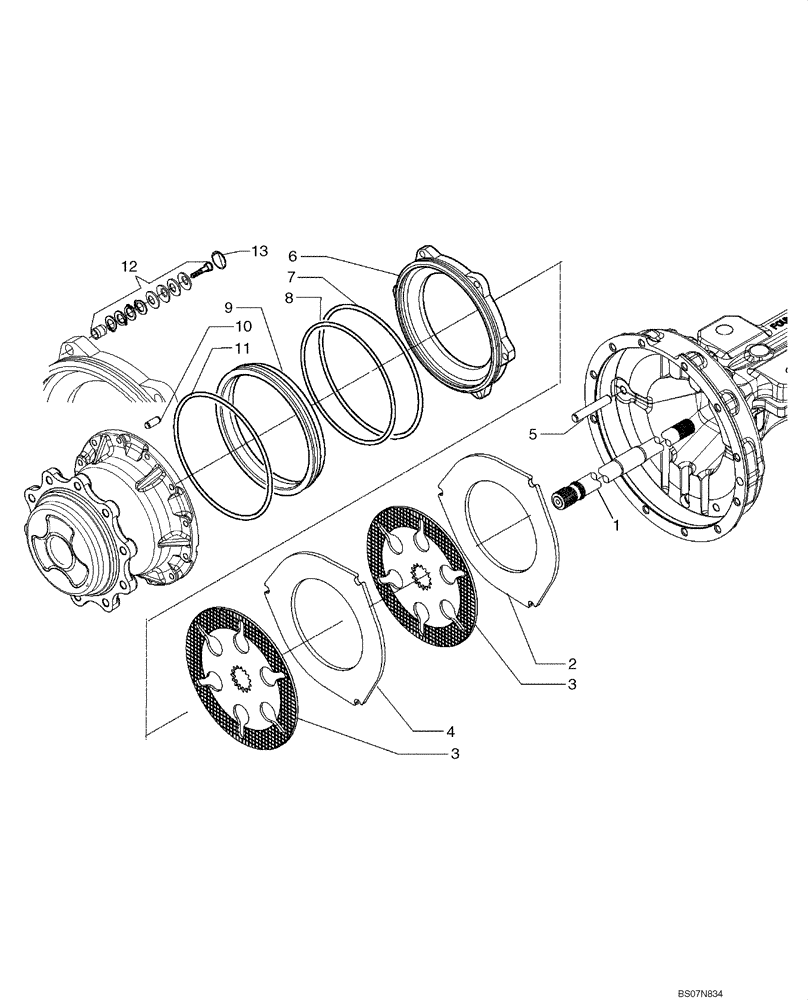

Запчасти Case 580M (07-02) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL (07) - BRAKES

87395372

REAR AXLE

Incl. Ref 1 - 13; Also Includes Parts On Figures 06-26 - 06-30, 07-02

1шт.

87395372R

REMAN-REAR AXLE

580M - SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

87395372C

CORE-REAR AXLE

Return Number

1шт.

1

87708431

SHAFT,734mm / 28.897"

RH Half Shaft (Determine from Seat Facing Radiator)

1шт.

1

87708432

SHAFT,629mm / 24.763"

LH Half Shaft (Determine from Seat Facing Radiator)

1шт.

2

87708433

BRAKE PLATE,5mm Thk

Brake Separation Plate, 5 thk

2шт.

3

87708434

BRAKE PLATE

Brake Plate

4шт.

4

87708435

BRAKE PLATE,8mm Thk

Brake Separation Plate, 8 thk

2шт.

5

139294A1

GUIDE

6шт.

6

87708436

BRAKE CYLINDER

Brake Piston

2шт.

7

87708438

O-RING

O-Ring

2шт.

8

371144A1

O-RING

Piston, External

2шт.

9

87708440

PISTON

Brake Piston

2шт.

10

D142890

DOWEL

2шт.

11

371145A1

O-RING

Piston Carrier

2шт.

12

87708441

BRAKE ADJUSTER,0.6mm

Kit, Rear Axle Self Adjust; 0.6 mm

6шт.

13

87708442

CIRCLIP

Lock Ring

6шт.
