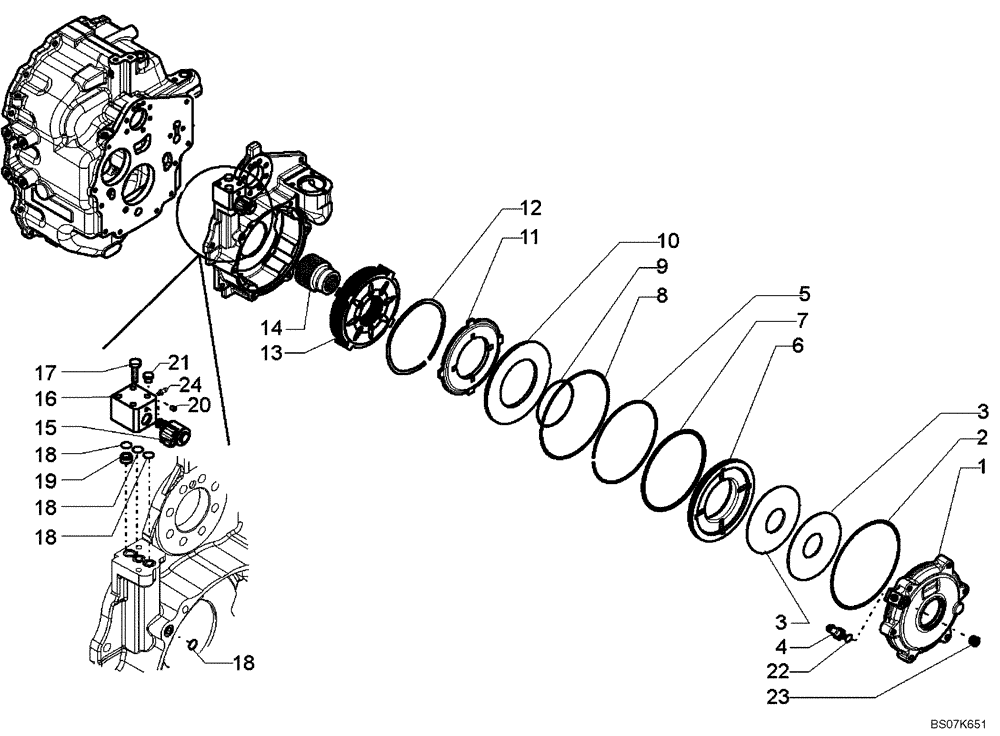

Запчасти Case 580M (07-01[01]) - TRANSMISSION ASSY, 4WD - BRAKE, PARKING (07) - BRAKES

87395301

TRANSMISSION

Four Wheel Drive; Incl Ref 1 - 24; Also Includes Parts On Figures 06-20 - 06-29, 07-01(01)

1шт.

87395301R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

87395301C

CORE-TRANSMISSION

Return Number, 4WD

1шт.

1

87701309

COVER

Brake Cover

1шт.

2

87701310

O-RING,0.103" Thk x 8.237" ID, -172, Cl 5, 75 Duro

O-Ring

1шт.

3

363485A1

BELLEVILLE WASHER,61mm ID x 170mm OD x 4.6mm Thk

Belleville Washer

2шт.

4

87701313

SENSOR

Pressure Sensor

1шт.

5

87701315

RING

Stop Ring

1шт.

6

87701317

PISTON

Brake Piston

1шт.

7

87701318

SEALING RING

SEALRING Seal With O-Ring

1шт.

8

87701320

O-RING

O-Ring

1шт.

9

87701321

SEALING RING

SEALRING Seal With O-Ring

1шт.

10

87701323

RETAINING PLATE

Retaining Plate

1шт.

11

87701324

BRAKE PLATE

Brake Counterplate

1шт.

12

87701325

SPACER

Spacer

5шт.

13

87701327

BRAKE PACKAGE

Brake Pack

1шт.

14

87701328

BUSHING

Link Bushing

1шт.

15

87701329

SOLENOID

Electrovalve

1шт.

16

87701330

CONTROL BLOCK

Control Block

1шт.

17

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

18

346583A1

O-RING

4шт.

19

87701333

ORIFICE

Bushing

1шт.

20

139312A1

PLUG,Expansion, 6mm OD

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG, Shipping Plug

1шт.

22

100760A1

O-RING

1шт.

23

E135809

PLUG

9/16

1шт.

24

933781R1

LUBE NIPPLE,M10 x 1

1шт.
