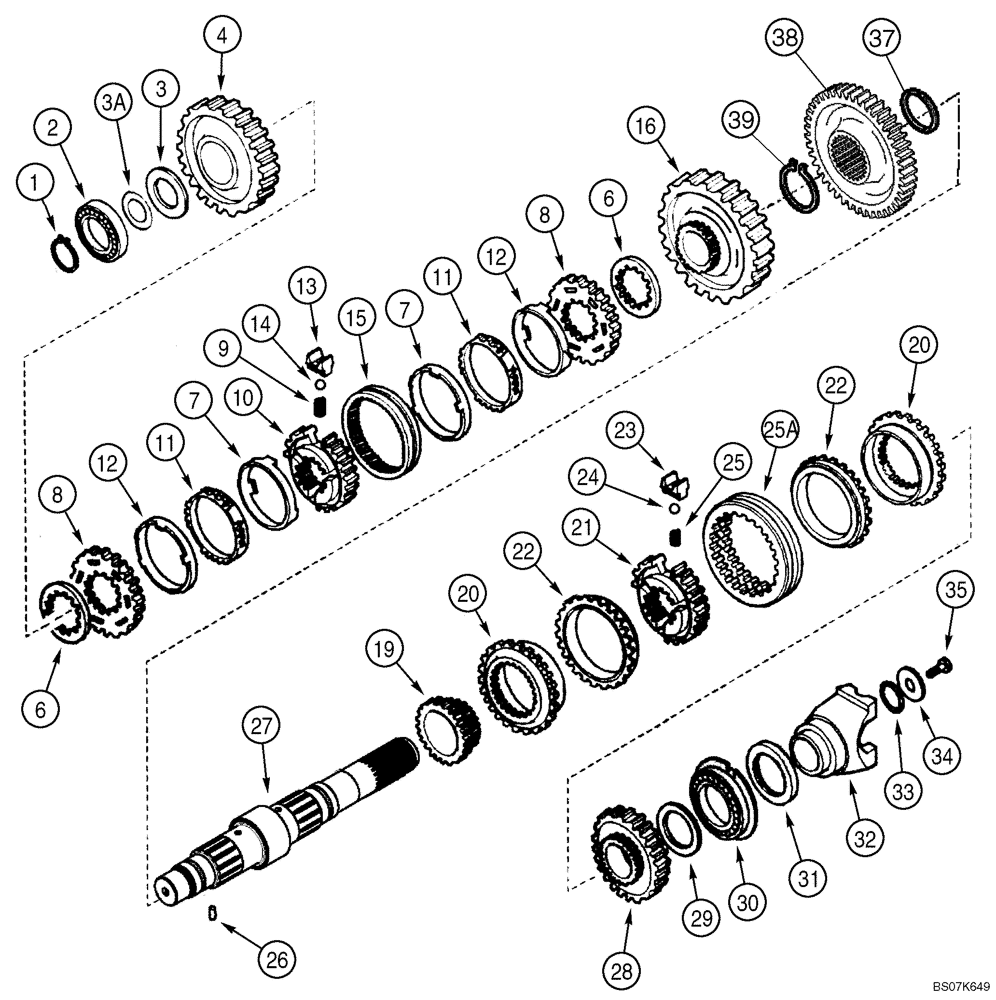

Запчасти Case 580M (06-26) - TRANSMISSION ASSY, 4WD - SHAFT, SECONDARY (06) - POWER TRAIN

87395301

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 39; Also Includes Parts On Figures 06-20 - 06-29, 07-01(01)

1шт.

87395301R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

87395301C

CORE-TRANSMISSION

Return Number, 4WD

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

3

358649A1

THRUST WASHER

1шт.

3a

358650A1

SHIM,0.05mm Thk

1шт.

3a

358651A1

SHIM,0.1mm Thk

1шт.

3a

358652A1

SHIM,0.3mm Thk

1шт.

3a

196454A1

SHIM,0.5mm Thk

1шт.

4

87701278

GEAR,44T

Driven, Second, Pinion Gear

1шт.

6

244109A1

SPACER

2шт.

190427A1

SYNCHRONIZER,90T

Service Kit, Incl. Ref 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

2шт.

8

NSS

NOT SOLD SEPARAT

Ring

2шт.

9

384773A1

COIL SPRING

3шт.

10

NSS

NOT SOLD SEPARAT

Hub

1шт.

11

NSS

NOT SOLD SEPARAT

Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

2шт.

13

326865A1

SPACER

3шт.

14

384769A1

BALL

3шт.

15

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

16

87701293

GEAR,50T

Driven, First, Pinion Gear

1шт.

19

358282A1

GEAR,23T

Driven, Fourth

1шт.

87429974

SYNCHRONIZER

Service Kit, Incl. Ref 20 - 25A

1шт.

20

NSS

NOT SOLD SEPARAT

Ring

2шт.

21

NSS

NOT SOLD SEPARAT

Hub

1шт.

22

NSS

NOT SOLD SEPARAT

Ring

2шт.

23

NSS

NOT SOLD SEPARAT

Plate

3шт.

24

NSS

NOT SOLD SEPARAT

Ball

3шт.

25

NSS

NOT SOLD SEPARAT

Spring

3шт.

25a

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

1шт.

27

87701775

SHAFT

Secondary (Rear Output Shaft) Four Wheel Drive Models

1шт.

28

358283A1

DRIVEN GEAR,33T

Third

1шт.

29

358639A1

WASHER

Thrust, 68 x 45 x 4 mm

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

32

233284A1

YOKE

Rear Drive Shaft

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

37

358654A1

RING, SNAP,65.5mm ID, Ext

RING SNAP Four Wheel Drive Models

1шт.

38

358656A1

GEAR,44T

Four Wheel Drive Models

1шт.

39

358655A1

RING, SNAP,67.4mm ID, Ext

Four Wheel Drive Models

1шт.
