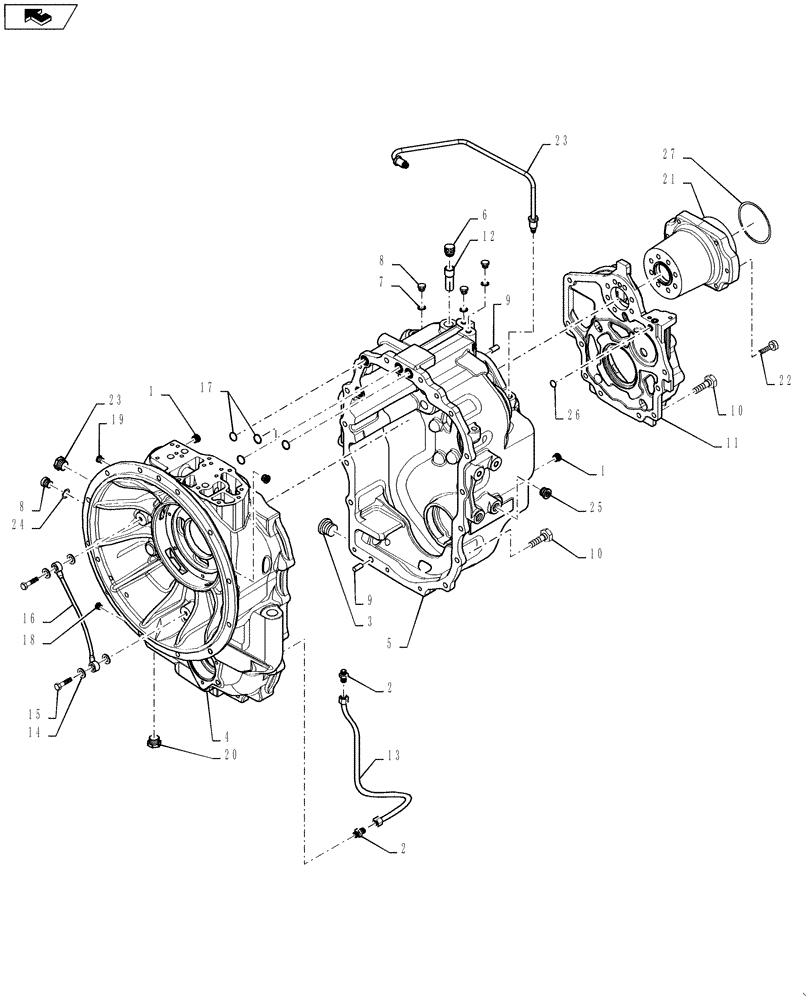

Запчасти Case 580M (06-21) - TRANSMISSION ASSY, 4WD - HOUSING (06) - POWER TRAIN

87395301

TRANSMISSION

Four Wheel Drive; Incl. Ref 1 - 28; Also Includes Part On Figures 06-20 - 06-29, 07-01(01)

1шт.

87395301R

REMAN-TRANSMISSION

Remanufactured; 4WD

1шт.

87395301C

CORE-TRANSMISSION

Return Number; 4WD

1шт.

84468417

TRANSMISSION HOUSING

TRANSMISSION HOUSING; 4WD; Incl. Ref 1 - 28

1шт.

1

9625178

PLUG,9/16" - 18 ORB

2шт.

2

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

2шт.

3

100557A1

PLUG, DRAIN,M30 x 2

1шт.

4

84318195

HOUSING

Front

1шт.

5

87701777

TRANSMISSION HOUSING

Rear

1шт.

6

1530028C1

BREATHER

1шт.

7

934667R1

SEALING RING,M10 x 14 x 1

3шт.

8

181100A1

PLUG,1/8 CAS x 8

4шт.

9

K260177

PIN

3шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

21шт.

11

87701257

COVER

1шт.

12

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

1шт.

13

181176A1

TUBE

1шт.

14

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

4шт.

15

181179A1

BANJO BOLT

2шт.

16

181232A1

TUBE

1шт.

17

181141A1

O-RING,17.12mm ID x 2.62mm Width

4шт.

18

87701779

RIVET,7mm OD

1шт.

19

181101A1

PLUG,M14 x 1.5

1шт.

20

239606A1

PLUG

1шт.

21

87701269

FLANGE

PTO

1шт.

22

87701258

BOLT,M10 x 1.5 x 45mm L

7шт.

23

87701270

PIPE

1шт.

24

87429985

SEALING WASHER,10mm ID x 18mm OD x 1.5mm Thk

1шт.

25

1725741

PLUG,M20 x 1.5 x 14mm

1шт.

26

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

27

87429982

O-RING

Pump Mounting

1шт.

28

87702570

PLUG,7mm OD

Not Illustrated

1шт.
