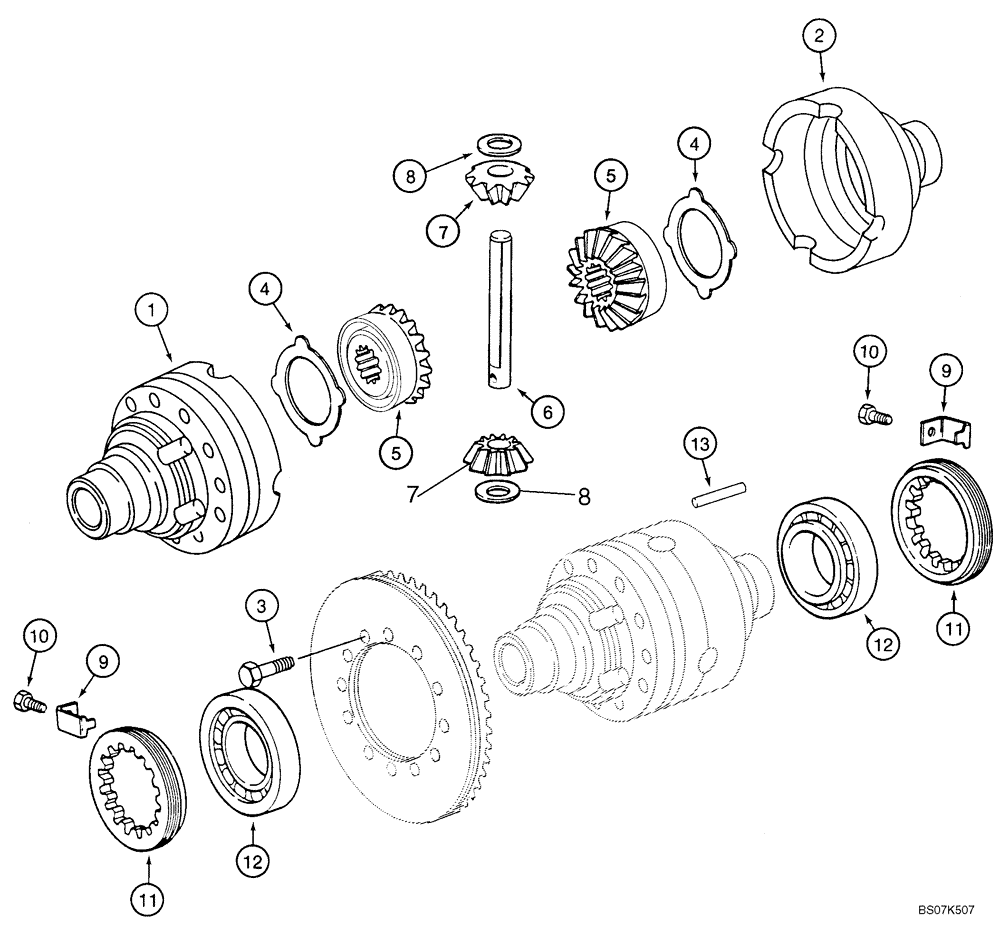

Запчасти Case 580M (06-07) - AXLE, FRONT DRIVE - DIFFERENTIAL (06) - POWER TRAIN

87395365

4WD AXLE ASSY

Front, Incl. Ref 1 - 13; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87395365R

REMAN-AXLE DIFFERENT

580M SERIES 3 LOADER BACKHOE TIER 3 (2/08-)

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

294933A1

HOUSING

Differential, Incl. Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

3

5194194

BOLT,Hex, M10 x 75

12шт.

4

1967003C1

THRUST WASHER

2шт.

5

231397A1

SERVICE KIT

Differential Gear Set, Service Replacement, Incl. Ref 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Gear, Side

2шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Pinion Gear

1шт.

7

NSS

NOT SOLD SEPARAT

Pinion Gear

2шт.

8

9966352

THRUST WASHER

2шт.

9

5194191

LOCKING PLATE

Bracket

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

5194190

RING NUT,M94 x 2

Locking

2шт.

12

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

13

9966356

ROLL PIN,7mm OD x 40mm L

1шт.
