(06-05) - AXLE, FRONT DRIVE - SHAFTS, AXLE

Запчасти Case 580M (06-05) - AXLE, FRONT DRIVE - SHAFTS, AXLE (06) - POWER TRAIN

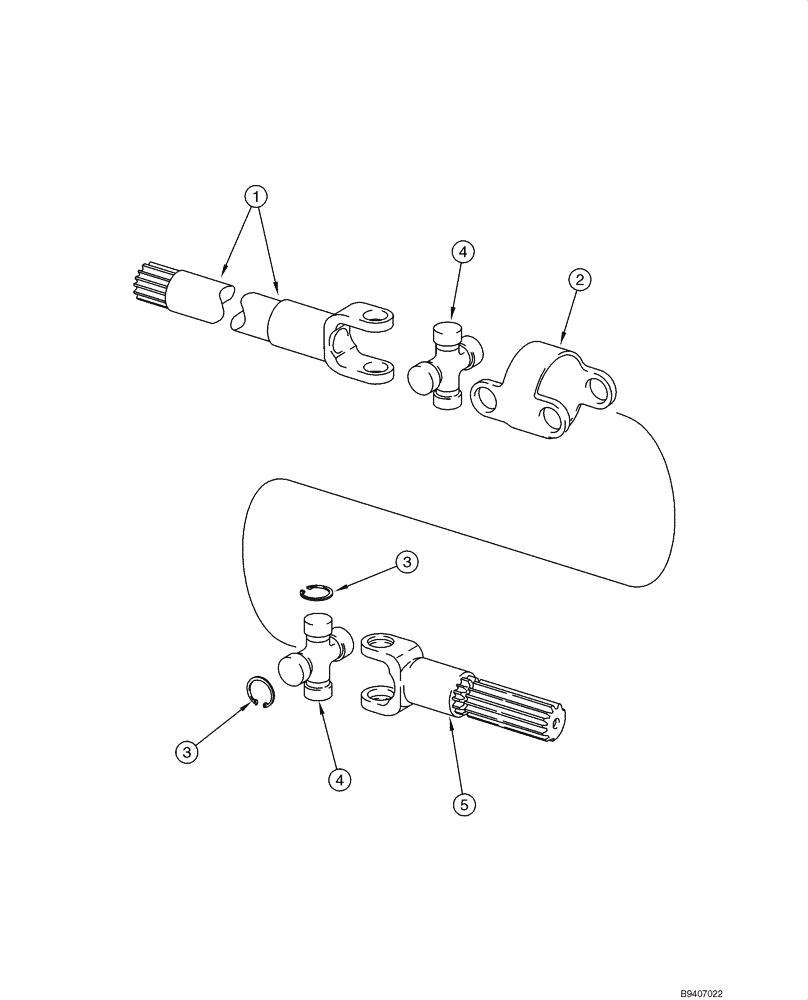

Схема запчастей Case 580M - (06-05) - AXLE, FRONT DRIVE - SHAFTS, AXLE (06) - POWER TRAIN
1
3
2
5
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395365

4WD AXLE ASSY

Front, Incl. Ref 1 - 5; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87395365R

REMAN-AXLE DIFFERENT

580M SERIES 3 LOADER BACKHOE TIER 3 (2/08-)

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

144461A1

AXLE-SHAFT, ARTICULA

Incl Ref 1 - 5

2шт.

1

144462A1

SHAFT

Long, Differential side

2шт.

2

390029A1

BODY

2шт.

3

N14410

RING

16шт.

4

144465A1

U-JOINT SPIDER

Incl. Ref 3

4шт.

5

144463A1

SHAFT

Short, Wheel Side

2шт.
