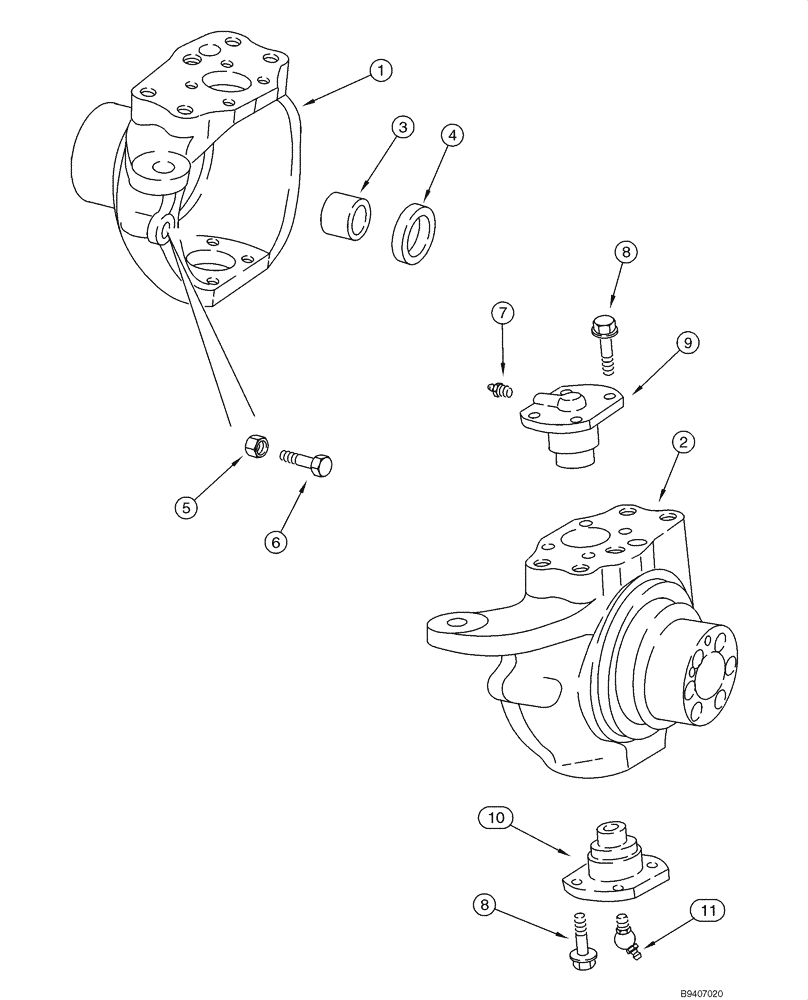

Запчасти Case 580M (06-03) - AXLE, FRONT DRIVE - HOUSING, SWIVEL (06) - POWER TRAIN

87395365

4WD AXLE ASSY

Front, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87395365R

REMAN-AXLE DIFFERENT

580M SERIES 3 LOADER BACKHOE TIER 3 (2/08-)

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

1

87710156

STEERING KNUCKLE

Left-Hand

1шт.

2

87710159

STEERING KNUCKLE

Right-Hand

1шт.

3

100532A1

BUSHING

Used With Right-Hand or Left-Hand Swivel Housing, Not Included With Housing, Purchase Separately

2шт.

4

87710145

OIL SEAL

SEALRING

2шт.

5

85805986

NUT,M16

2шт.

6

5194264

BOLT

M16 X 75

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

8

100533A1

BOLT,Self-Lock, M12 x 30mm

M12 x 30

16шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King

2шт.

10

122264A1

PIN

King

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.
