(05-08) - AXLE, FRONT (86990837) - HUB AND BEARINGS

Запчасти Case 580M (05-08) - AXLE, FRONT (86990837) - HUB AND BEARINGS (05) - STEERING

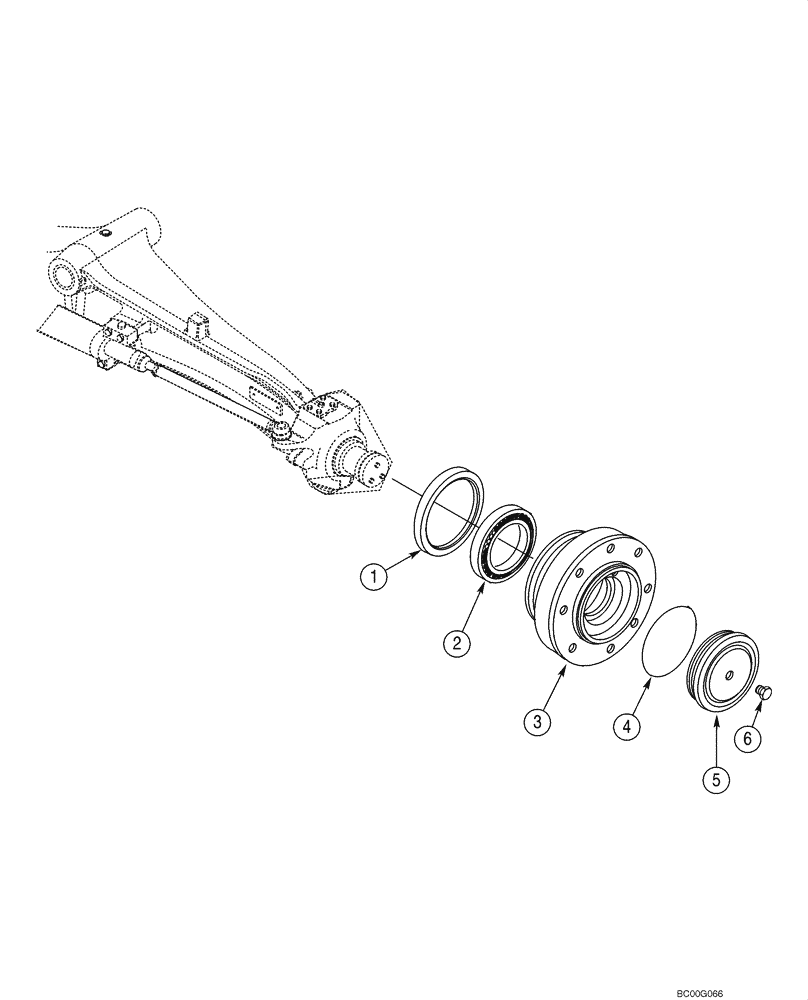

Схема запчастей Case 580M - (05-08) - AXLE, FRONT (86990837) - HUB AND BEARINGS (05) - STEERING
5
1
2
4
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

86990837

AXLE

Front, Two Wheel Drive; Incl. 1 - 6; Also Includes Parts On Figures 05-05 - 05-08

1шт.

1

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

2шт.

2

324213A1

ROLLER BEARING

2шт.

3

401065A1

HUB

2шт.

4

401066A1

O-RING

2шт.

5

401067A1

COVER

2шт.

6

D142898

PLUG,M10 x 1

10 x 1 mm

2шт.
