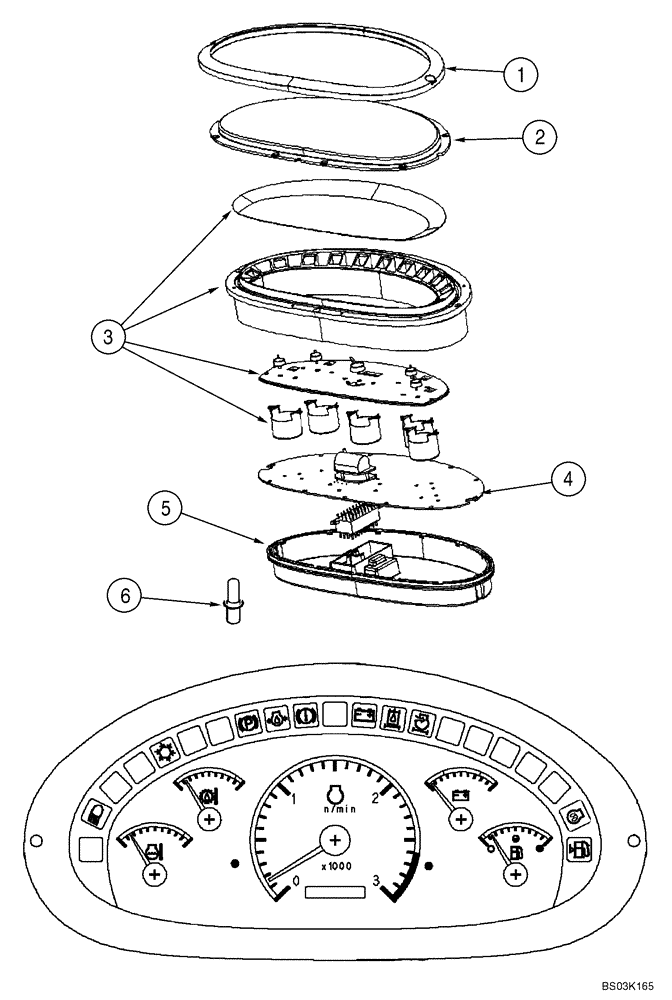

Запчасти Case 580M (04-12) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

87419320

INSTRUMENT CLUSTER

Incl. Ref 1 - 4, 5, 6; Includes Analog Hourmeter, Ref 4; No Longer Available, Order 87337149 Cluster

1шт.

87337149R

REMAN-INSTR CLUSTER

580M SERIES 2 LOADER BACKHOE (TIER 2) (NA) (2/04-), Reman for new PN 87419320

1шт.

87337149C

CORE-CLUSTER, INSTR

Return Number

1шт.

87337149

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Incl. Ref 1 - 3, 4A - 6

1шт.

87337149R

REMAN-INSTR CLUSTER

580M SERIES 2 LOADER BACKHOE (TIER 2) (NA) (2/04-)

1шт.

87337149C

CORE-CLUSTER, INSTR

Return Number

1шт.

1

370755A1

BEZEL

Black

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 1/4, Screw; Trim

2шт.

2

370756A1

LENS

Clear; Includes O-Ring Which Is Not Serviced Separately

1шт.

3

NSS

NOT SOLD SEPARAT

Gauge Includes Overlay, Seal and Gauges Which Are Not Serviced Separately; No Longer Available For Service; Order 87337149 Instrument Cluster

1шт.

4

87423397

HOURMETER

Analog, Circuit Board; Includes Seal and Hourmeter Which Are Not Serviced Separately; Used With 87419320 Analog Cluster; No Longer Available For Service; Order 87337149 Instrument Cluster

1шт.

87337149R

REMAN-INSTR CLUSTER

580M SERIES 2 LOADER BACKHOE (TIER 2) (NA) (2/04-), Reman for new 87423397

1шт.

87337149C

CORE-CLUSTER, INSTR

Return Number

1шт.

4a

NSS

NOT SOLD SEPARAT

Digital PCB/Hourmeter; Includes Seal and Hourmeter Which Are Not Serviced Separately; Interchangeable With Ref 4 Hourmeter In 87419320 Analog Cluster; No Longer Available For Service; Order 87337149 Instrument Cluster

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 3/8, Screw

25шт.

5

370760A1

REAR COVER

Rear; Includes O-Ring Which Is Not Serviced Separately

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 3/4, Screw; Rear Cover

2шт.

6

388053A2

BULB,14V, 1W

1W, 14V; Includes Socket

1шт.
