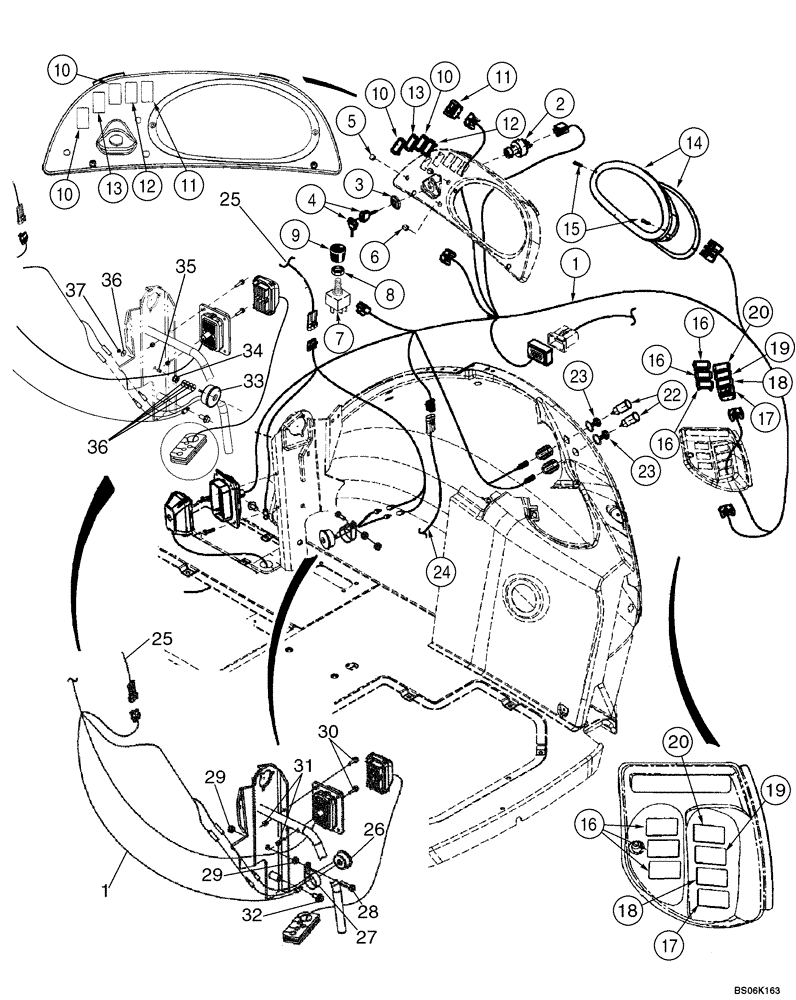

Запчасти Case 580M (04-09) - HARNESS, SIDE CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

87418542

WIRE HARNESS

Side Console Harness

1шт.

282775A1

IGNITION SWITCH

Incl. Ref 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Switch, Without Keys

1шт.

3

NSS

NOT SOLD SEPARAT

Nut

1шт.

4

1964831C2

IGNITION KEY

Padded

1шт.

5

397569A1

PLUG

7/16 in, Dome, If Used; For Air Conditioning Switch and Knob; See Figure 09-65

2шт.

6

397570A1

PLUG

1/2 in, Dome, If Used; For Heater Switch and Knob; See Figure 09-64

1шт.

7

245258A1

ROTARY SWITCH

Blower

1шт.

121415A1

FUSE,25A, Mini, Clear

Blower and Wiper

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

9

400379A1

KNOB,23mm

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

If Used

1-4шт.

11

133715A1

LIGHT SWITCH

Rear Work Lamps

1шт.

12

235002A1

ROCKER SWITCH

Ride Control, If Used

1шт.

13

133716A1

ROCKER SWITCH

Four Wheel Drive, If Used

1шт.

121412A1

FUSE,10A, Mini, Red

Four Wheel Drive

1шт.

14

87419320

INSTRUMENT CLUSTER

See Figure 04-12

1шт.

87337149R

REMAN-INSTR CLUSTER

580M SERIES 2 LOADER BACKHOE (TIER 2) (NA) (2/04-), Reman for new PN 87419320

1шт.

87337149C

CORE-CLUSTER, INSTR

Return Number

1шт.

15

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

2шт.

16

86000535

PLUG,1.427" x .62", Plastic

If Used

1-6шт.

17

386852A2

SWITCH

Horn

1шт.

18

386788A1

WINDSHIELD WIPER SWI

Rear Window Washer, If Used

1шт.

19

386786A1

ROCKER SWITCH

Rear Wiper, If Used

1шт.

20

86000535

PLUG,1.427" x .62", Plastic

If Used

1шт.

22

283779A1

POWER SOCKET,12V

30 amp Maximum

2шт.

23

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

2шт.

25

NSS

NOT SOLD SEPARAT

Harness, Loader Control Lever; Included In Loader Control Lever Handle

1шт.

26

D137468

BUZZER

Without Stud; Engine Water Temperature, Engine Oil Pressure and Parking Brake; If Used

1шт.

27

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

If Used

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

If Used

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

If Used

2шт.

30

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

31

832-10406

NUT,M6 x 1, Cl 8

2шт.

32

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

87537152

WIRE HARNESS

Chassis Options Harness; Includes (4) L71879 Diodes; Replaces 87436675

1шт.

L71879

DIODE ELEMENT,400V, 3A

4шт.

33

87387852

ALARM

With #8-32 x 1 inch Socket Set Screw Loctited to Alarm; Engine Water Temperature, Engine Oil Pressure and Parking Brake; If Used

1шт.

34

87389175

GROMMET

Rubber; If Used

1шт.

35

87398413

SPACER

If Used

1шт.

36

895-30108

WASHER,4.3mm ID x 15mm OD x 1.2mm Thk

Flat; #4; If Used

5шт.

37

225-14108

NUT,#8-32

If Used

1шт.
