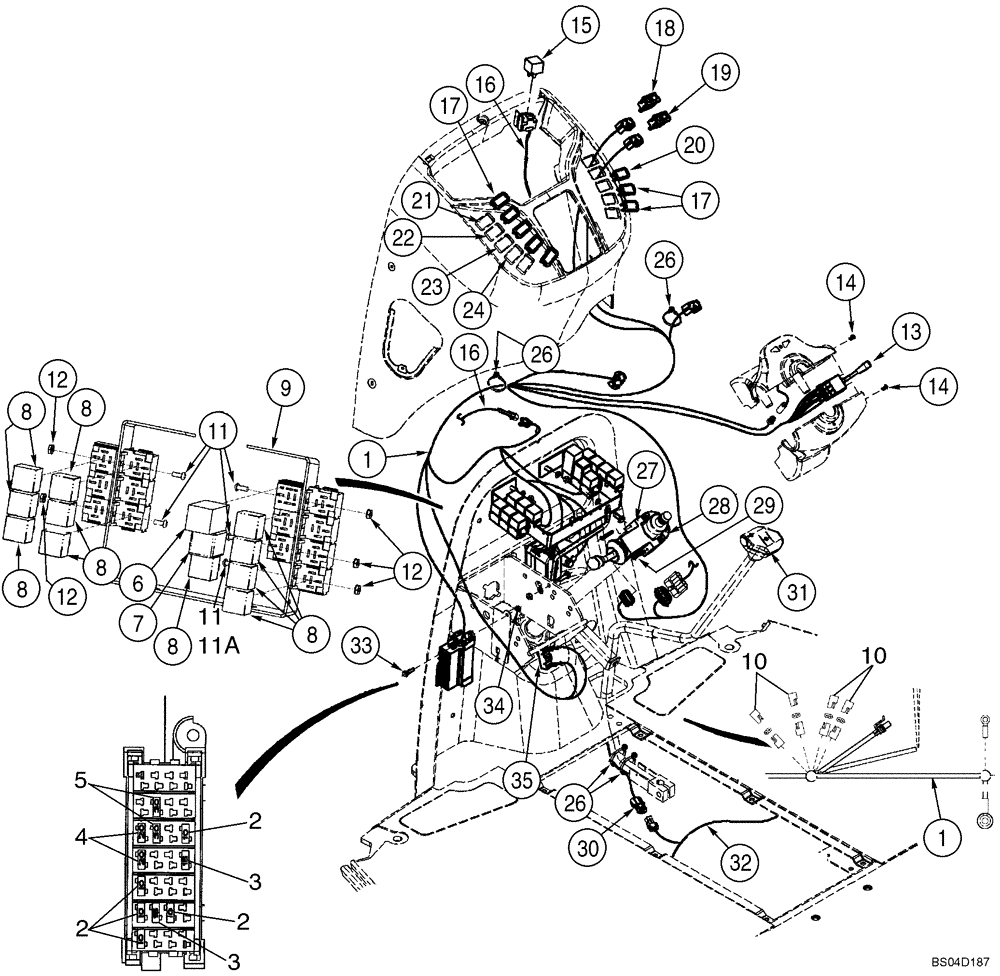

Запчасти Case 580M (04-07) - HARNESS, FRONT CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

87418541

WIRE HARNESS

Front Console Harness

1шт.

2

121412A1

FUSE,10A, Mini, Red

Red

5-6шт.

3

121413A1

FUSE,15A, Mini, Blue

Blue

2-3шт.

4

121414A1

FUSE,20A, Mini, Yellow

Yellow

2шт.

5

121416A1

FUSE,30A, Mini, Green

Green

2шт.

6

87578455

RELAY,12V, Turn Signal and Hazard

Relay, Flasher, Hazard; Turn Signal; Replaces D147166

1шт.

7

347706A3

RELAY,12V, 5A

Sealed Time Delay, Shuttle Interlock Timing Relay, Forward Reverse Control

1шт.

8

87436836

RELAY,12V, 40 Amp

40 amp, 12V

11шт.

9

361900A1

BRACKET

Relay Mounting

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

4шт.

11

87301687

SCREW,HWH, #10 - 32 x 1/2"

Replaces 490-1108 Washerless Screw Used On Some Models

6-7шт.

11a

490-1106

SCREW,Cross Pan Hd, #10-32 x 3/8"

No Longer Used, Order 87301687 1/2 inch Long Screw, Ref 11

1шт.

12

231-24409

NUT,#10-32

Replaces 193-1000 Nut With External Tooth Lock Washer Used On Some Models

7шт.

13

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.

14

84178909

SCREW,M4 x 12mm

M4 x 12

2шт.

15

87436836

RELAY,12V, 40 Amp

40 amp, 12V; Air Conditioning; Attaches To Front Console Options Harness

1шт.

16

87537153

WIRE HARNESS

Front Console Options; Includes (1) L71879 Diode; Replaces 87433546

1шт.

L71879

DIODE ELEMENT,400V, 3A

1шт.

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

Mounts Relay Recepticle

1шт.

193-1000

NUT,Keps, w/LW,#10-32

Mounts Relay Recepticle

1шт.

17

86000535

PLUG,1.427" x .62", Plastic

Accessory; If used

2-8шт.

18

386849A1

ROCKER SWITCH

Front Work Lamps

1шт.

19

386850A1

ROCKER SWITCH

Hazard Lamps

1шт.

20

386851A1

BEACON SWITCH

Rotating Beacon; If Used

1шт.

21

86000535

PLUG,1.427" x .62", Plastic

If Used

1шт.

22

386785A1

WINDSHIELD WIPER SWI

Front Wiper; If Used

1шт.

23

386787A1

WINDSHIELD WASHER SW

Front, If Used

1шт.

24

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler; If Used

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

27

278328A1

SWITCH

Shuttle Shift; Transmission Forward/Neutral/Reverse Switch

1шт.

28

366889A2

HALF-COLLAR

HALF COLLAR Shuttle Lever; Includes Threaded Insert

1шт.

29

397990A1

SCREW,Phillips Drive, Pan HD, M5 x 0.8 x 35mm

M5 x 35

2шт.

30

123809A2

WIRE HARNESS

Clutch Cutout; Transmission Gear Shift Lever; For Lever, See Figure 06-11

1шт.

31

123097A1

SWITCH

Clutch Cutout; For Lever and Knob, See Figure 06-11; If Used

1шт.

31

87312712

SWITCH

Clutch Cutout; For Lever and Knob, See Figure 06-11; Otto 21649 Marking; If Used

1шт.

32

87433543

WIRE HARNESS

Engine, Main Chassis; Packard Connectors At Trans. Control Valve & 4WD Solenoids; No Longer Available, Order 87450932 Service Kit; 87450932 Service Kit Is No Longer Available, Order 87456949 Harness Service Kit

1шт.

87450932

WIRE HARNESS

Service Kit, Includes 87450481 Main Chassis Harness and 87450931Transmission Jumper Harness; No Longer Available, Order 87456944 Chassis Harness & 87450931 4WD Transmission Jumper Harness

1шт.

32

87450481

WIRE HARNESS

Main Chassis Harness; Packard Connectors At Trans. Control Valve Solenoid & Deutsch Connector At 4WD Solenoid; No Longer Available, Order 87456949 Chassis Harness Service Kit

1шт.

32

87456944

WIRE HARNESS

Main Chassis; Deutsch Connectors At Fwd/Rev & 4WD Solenoids; For Service Order 87456949 Chassis Harness Service Kit; Not Illustrated

1шт.

87456949

SERVICE KIT

Main Chassis; Includes 87456944 Chassis Harness, 87450931 4WD Jumper Harness, 87456948 Fwd/Rev Jumper Harness

1шт.

32a

87450931

WIRE HARNESS

4WD Transmission Jumper Harness; 1 Packard / 1 Deutsch Connector; Attaches to 4WD Connection on Main Chassis Harness, Not Illustrated

1шт.

32b

87456948

WIRE HARNESS

Fwd/Rev Transmission Jumper Harness; 2 Deutsch / 1 Packard Connector; Attaches to Transmission Control Valve Solenoid Connection On Main Chassis Harness; Not Illustrated

1шт.

L71879

DIODE ELEMENT,400V, 3A

3шт.

33

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

34

832-10406

NUT,M6 x 1, Cl 8

1шт.

35

D148108

SWITCH

Brake Lamp; Includes Hardware; For Mounting, See Figure 07-03

1шт.

87537152

WIRE HARNESS

Chassis Options; Includes (4) L71879 Diodes; Replaces 87436675

1шт.

L71879

DIODE ELEMENT,400V, 3A

4шт.
