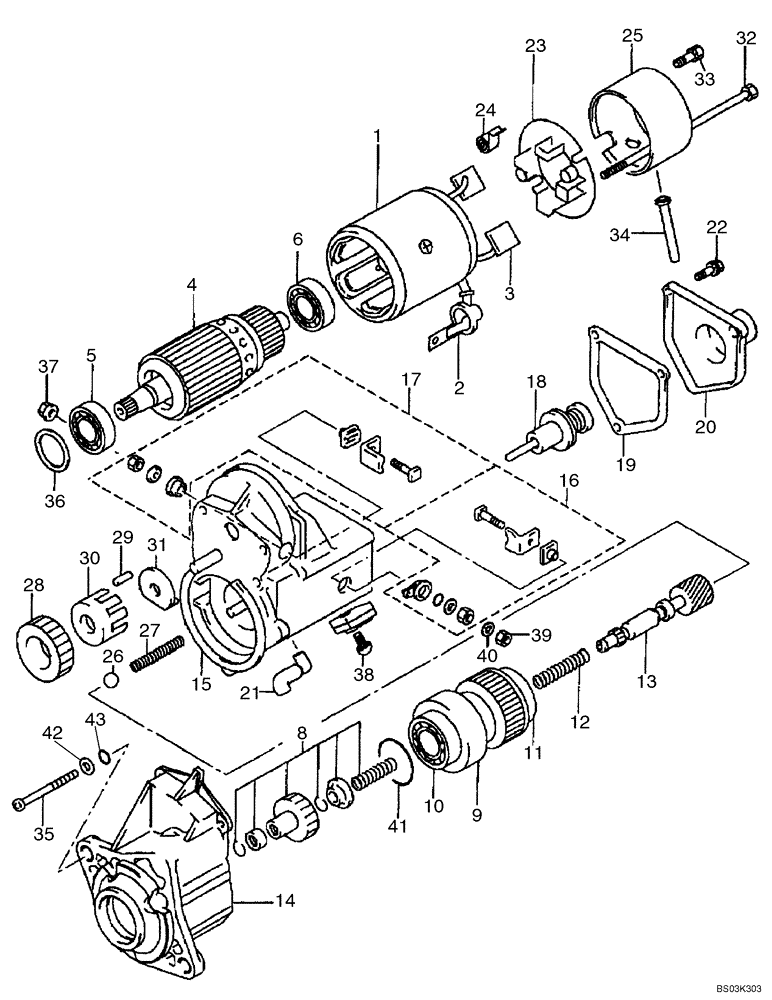

Артикул
Название
Примечание
Количество
86992395R
REMAN-STARTER,12V, 2.7kW
Remanufactured, STARTER
1шт.
86992395C
CORE-STARTER,12V, 2.7kW
Return Number
1шт.
1
87438992
STATOR
Housing, Yoke; Incl. Ref 2, 3
1шт.
2
87438993
HOUSING
Ring
1шт.
3
87438925
COMMUTATOR BRUSH
Brush Kit
2шт.
4
87438926
ARMATURE
Armature; Incl. Ref 5, 6
1шт.
5
87438927
BALL BEARING
Ball Bearing, 35 mm OD
1шт.
6
87438928
BALL BEARING
Ball Bearing, 30 mm OD
1шт.
87438994
CLUTCH ASSEMBLY
Clutch; Incl. Ref 8 - 13
1шт.
8
87438929
KIT, STARTER MTR REP
Clutch Pinion Kit
1шт.
9
87438930
KIT, STARTER MTR REP
Clutch Assembly; Incl. Ref 10, 11
1шт.
10
87438931
BALL BEARING
Ball Bearing, 47 mm OD
1шт.
11
87438932
BALL BEARING
Ball Bearing, 47 mm OD
1шт.
12
87438933
COMPRESSION SPRING
Compression Spring
1шт.
13
87438935
SHAFT
Clutch Shaft
1шт.
14
87438937
HOUSING
Housing
1шт.
15
87438940
SOLENOID
Magnetic Switch Assembly; Incl. Ref 16 - 22
1шт.
16
87438941
KIT, STARTER MTR REP
Terminal M
1шт.
17
87438942
KIT, STARTER MTR REP
Terminal C
1шт.
18
87438944
PLUNGER ASSY.
Plunger
1шт.
19
87438946
GASKET
Solenoid Switch Gasket
1шт.
20
87438948
COVER
Solenoid Cover
1шт.
21
87438995
BUSHING
Bushing, Drain
1шт.
22
87438950
BOLT
Bolt With Washer; M5 x 14
3шт.
23
87438996
HOLDER
Brush Holder; Incl. Ref 24
1шт.
24
87438997
SPRING
Brush Tension Spring
4шт.
25
87438999
COVER
Housing
1шт.
26
87439000
BALL
Ball
1шт.
27
87439001
COMPRESSION SPRING
Compression Spring
1шт.
28
87439002
GEAR
Pinion
1шт.
29
87439003
ROLLER
Roller, Clutch
5шт.
30
87439004
RETAINER
Retainer
1шт.
31
87439005
RETAINER
Snap Retainer
1шт.
32
87438951
BOLT
M6 x 182 Bolt
2шт.
33
87439006
CAPTIVE WASHER SCREW,Phil Pan Hd, M5 x 9.40mm
Bolt With Washer; M5 x 9.4
2шт.
34
87439007
BUSHING
Bushing, Drain
1шт.
35
87439008
SCREW,Sl Pan Hd, M6 x 70mm
Adapter Screw, M6 x 70
3шт.
36
87438954
WASHER
Felt Washer
1шт.
37
87439009
NUT
M10 Nut
1шт.
38
87438956
BOLT
M5 x 10 Bolt
1шт.
40
892-11010
LOCK WASHER,M10
1шт.
41
87439010
SEAL,2.4mm Thk x 47.2mm ID
Seal
1шт.
42
87439061
WASHER
Washer, 9/32 x 1/2 x 3/64
3шт.
43
87439011
O-RING
O-Ring, 4.8 ID
3шт.
Выбрано товаров: 46
