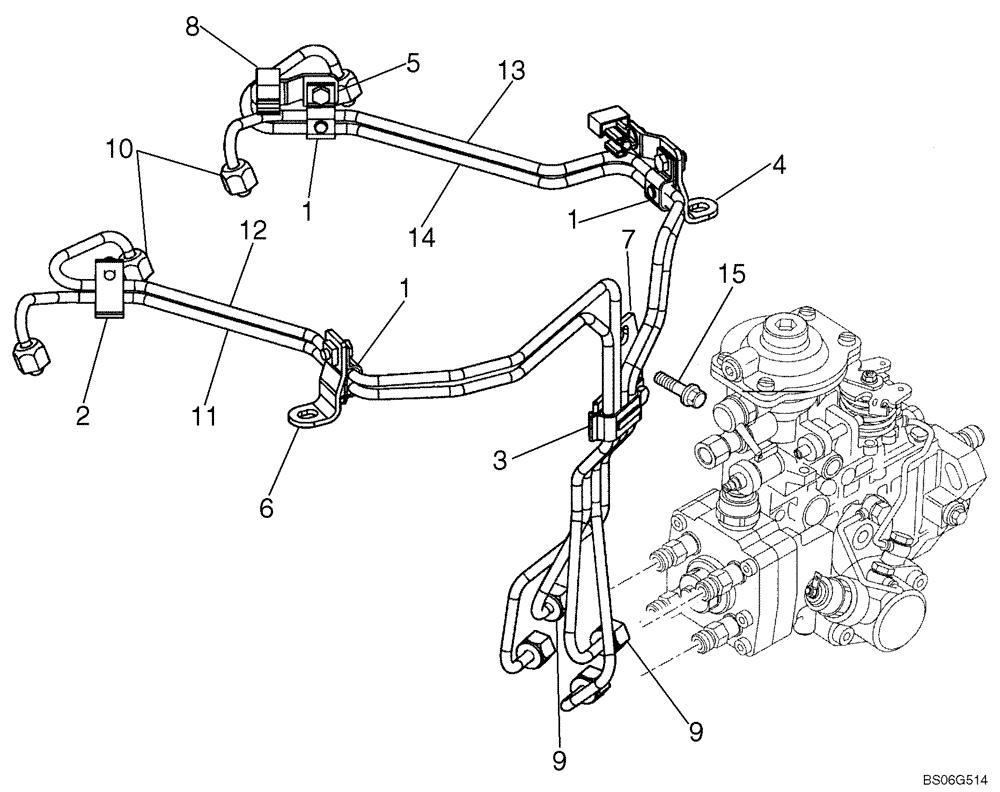

Запчасти Case 580M (03-07) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

2852075

PIPE SET

- Assy; Fuel Injection Tube; Incl. Ref 2- Ref 15

1шт.

1

2852871

BRACKET

Fuel Injection Pipe Bracket

3шт.

2

2852872

BRACKET

Fuel Injection Pipe Bracket

1шт.

3

2852873

BRACKET

Fuel Injection Pipe Bracket

1шт.

4

2852874

BRACKET

Fuel Injection Pipe Bracket

1шт.

5

2852875

BRACKET

Fuel Injection Pipe Bracket

1шт.

6

2852876

BRACKET

Fuel Injection Pipe Bracket

1шт.

7

2852877

BRACKET

Fuel Injection Pipe Bracket

1шт.

8

2852878

CLAMP BRACKET

2шт.

9

2852879

NUT

Hex Nut

4шт.

10

2852880

NUT

Hex Nut

4шт.

11

2852881

INJECTION PIPE

Cylinder #1

1шт.

12

2852882

INJECTION PIPE

Cylinder #2

1шт.

13

2852883

INJECTION PIPE

Cylinder #3

1шт.

14

2852884

INJECTION PIPE

Cylinder #4

1шт.

15

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.
