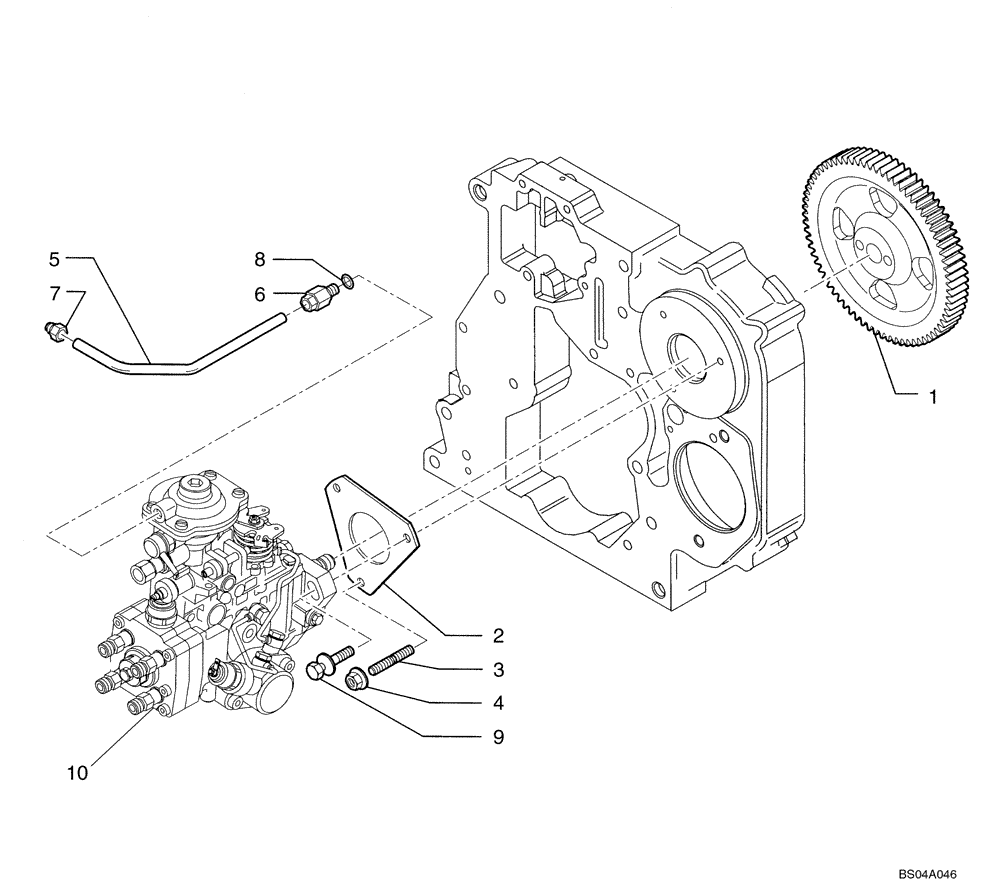

Запчасти Case 580M (03-06) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

2854340

GEAR,52 T

Replaces 4894774

1шт.

1

4893229

FLANGE NUT,M14

Used to Attach Ref# 1 Gear to Ref# 10 Injection Pump

1шт.

1

4894736

SPRING WASHER,14.2mm ID x 24.1mm OD x 2.55mm Thk

Used to Attach Ref# 1 Gear to Ref# 10 Injection Pump

1шт.

2

2852885

GASKET,1.2mm Thk

1шт.

3

2852294

STUD,M8 x 1.25 x 30

2-3шт.

4

4899003

FLANGE NUT,M8 x 1.25

2-3шт.

2852093

PLUG

Air Transfer Connection; Models Without Turbocharged Engine; Includes 4899055 O-Ring

1шт.

5

2852059

TUBE

Models With Turbocharged Engine

1шт.

6

4893518

TUBE,M8 x 1 x 29.5 L

1шт.

7

4896770

TUBE NUT,M10 x 1

1шт.

8

2852057

SEALING WASHER,M8 x 12 x 1 Thk

1шт.

9

2852091

SCREW

M8 x 31; No Longer Used, Order Ref 3 Stud

1шт.

10

REF

INSTRUCTION

INJECTION PUMP; See Figure 03-04

1шт.
