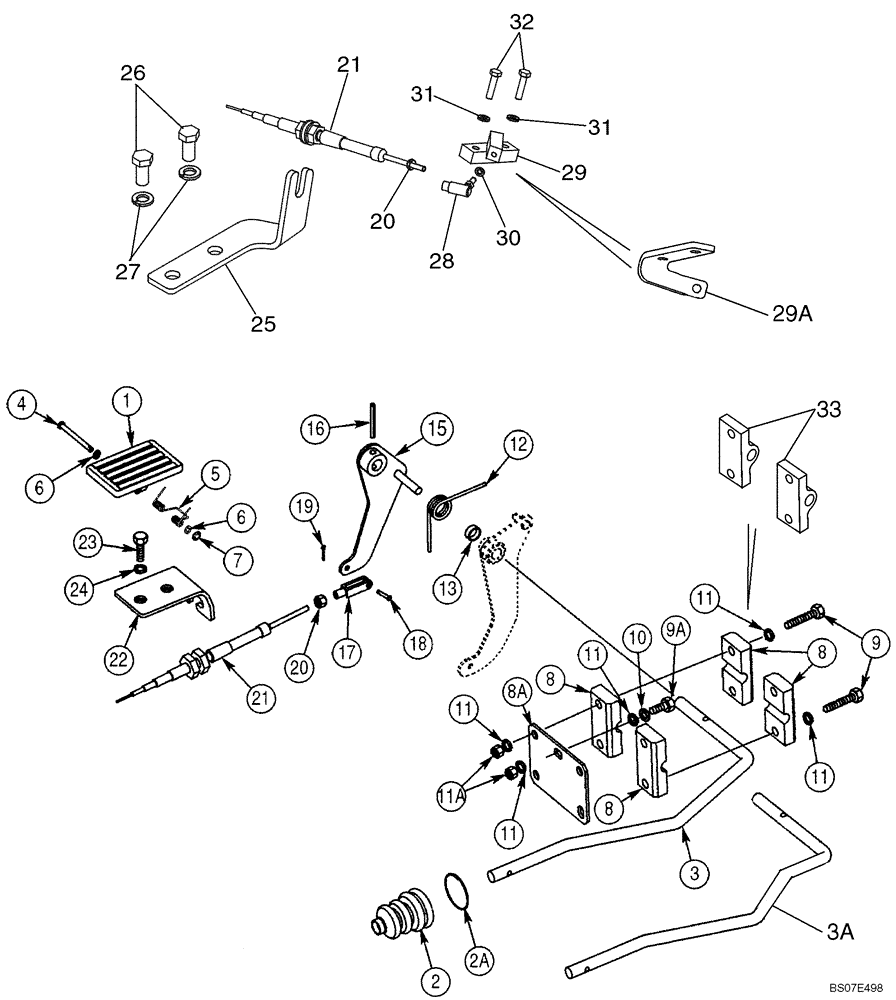

Запчасти Case 580M (03-03) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

1

282242A1

PEDAL

Plastic

1шт.

2

132931A1

BOOT

Accelerator Pedal Rod

1шт.

2a

189109A1

SPRING,Compression, 42mm OD

Retainer

1шт.

3

378960A1

ROD

No Longer Used, For Service Order 87593642, Ref 3A

1шт.

3a

87593642

ROD,12.7mm OD

1шт.

4

322860A1

PIN,7.9mm OD x 55.6mm L

1шт.

5

256776A1

SPRING

1шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

7

103-1518

SNAP RING,#18, Ext

1шт.

8

D124857

CLAMP

If Used

4шт.

8a

378955A1

PLATE

1шт.

9

604-8050

BOLT,Hex, M8 x 50mm, Cl 8.8

Used With Ref 8 Blocks

4шт.

9

87378776

BOLT,Hex, M8 x 30mm, Cl 8.8

Special; M8 x 30; Used With Ref 33 Blocks

4шт.

9a

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

892-11008

LOCK WASHER,8mm ID

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

11a

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

380483A2

SPRING

1шт.

13

378958A1

SPACER, RING

1шт.

15

378956A3

LEVER ASSY.

1шт.

16

838-3640

PIN,M6 x 40, Coiled

1шт.

17

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

18

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

19

432-48

COTTER PIN,1/16" x 1/2"

1шт.

20

225-14210

NUT,#10-32

2-3шт.

21

87340754

CABLE,1829mm L

To Injection Pump; Replaces 380021A1; 87330325

1шт.

22

397065A2

BRACKET

1шт.

23

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

87432547

BRACKET

With Holes; Models Without Turbocharged Engine; When Stock Is Exhausted, Order 87446095 Bracket With Slots

1шт.

25

87446095

BRACKET

With Slots; Models With Turbocharged Engine; Not Illustrated

1шт.

26

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

27

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

28

87421807

JOINT ASSY.

1шт.

29

87421471

BLOCK ASSY.

No Longer Available, Order 87452823 Bracket, Ref 29A

1шт.

29a

87452823

BLOCK ASSY.

BRACKET, Throttle Cable

1шт.

30

892-11005

LOCK WASHER,M5

1шт.

31

892-11006

LOCK WASHER,M6

2шт.

32

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

Used with 87421471 Block, Ref 29; If used

2шт.

32

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Used with 87452823 Bracket, Ref 29A; If Used

2шт.

33

87345006

BLOCK

Throttle Pivot Block; If Used

2шт.
