Запчасти Case 580M (02-39) - FAN DRIVE (02) - ENGINE

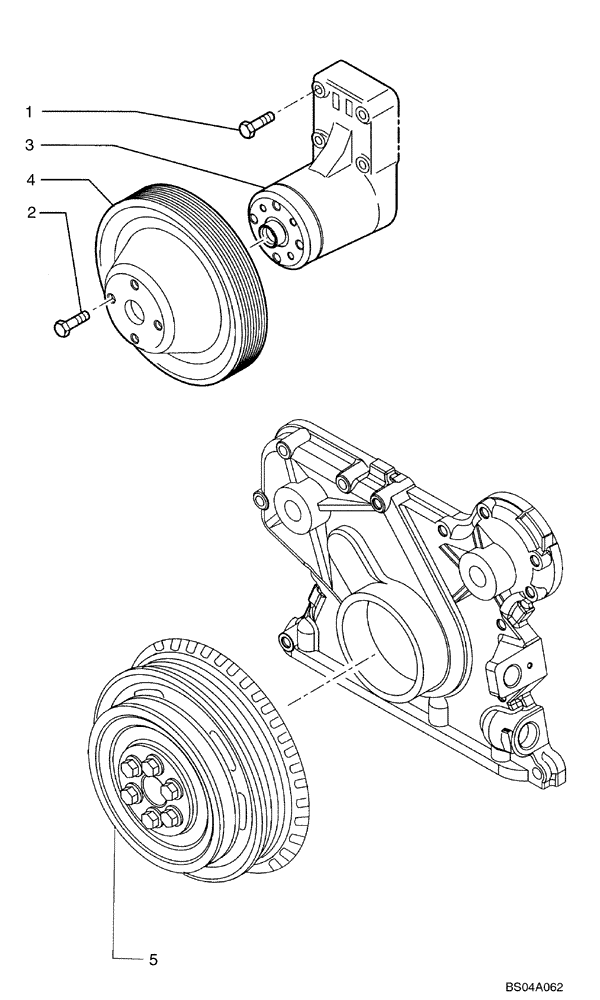

Схема запчастей Case 580M - (02-39) - FAN DRIVE (02) - ENGINE
4
3
1
5
2

Артикул

Название

Примечание

Количество

1

4899053

SCREW,Hex Flg, M8 x 45

4шт.

2

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

4шт.

3

2852170

SUPPORT

Includes (1) 2852171 Split Ring, (1) 2852172 Screw, (1) 4892732 Bearing, (1) 4892426 Hub, (1) 4890732 Hub Retainer

1шт.

2852171

SNAP RING

Split Ring

1шт.

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

4892426

HUB

1шт.

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

Hub Retainer

1шт.

4

J914462

PULLEY,163mm OD

1шт.

5

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.

Выбрано товаров: 10
