Запчасти Case 580M (02-38) - WATER PUMP - CONTROL (02) - ENGINE

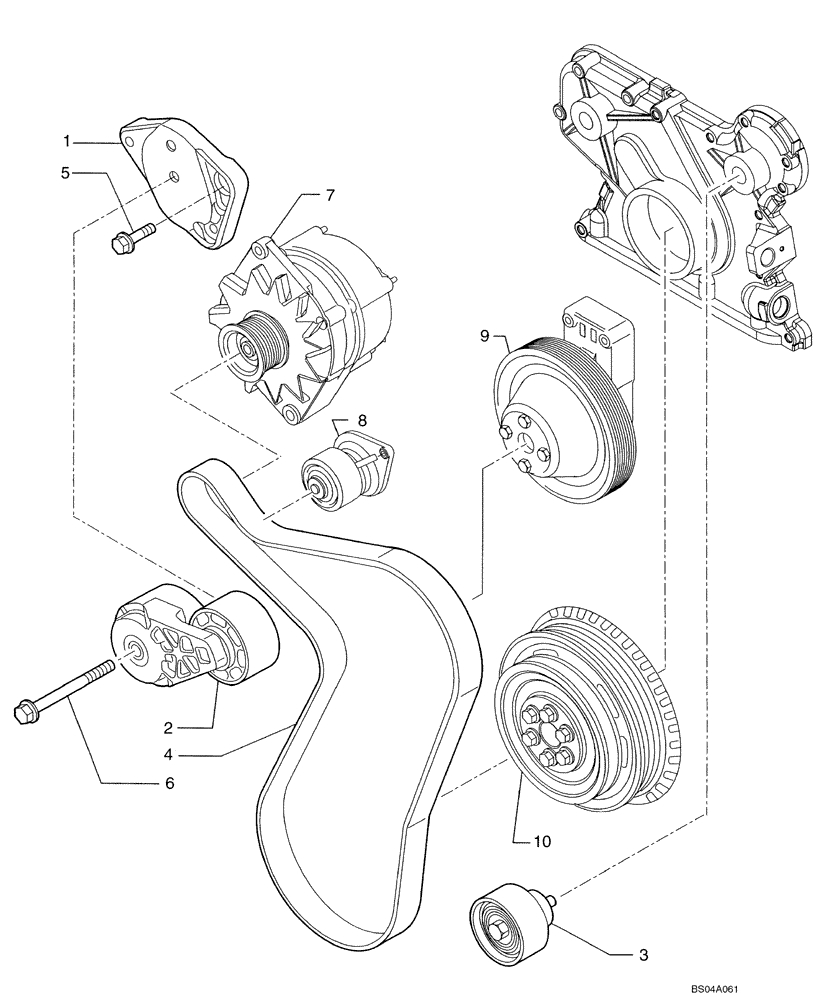

Схема запчастей Case 580M - (02-38) - WATER PUMP - CONTROL (02) - ENGINE
6
3
10
8
9
1
4
2
7
5

Артикул

Название

Примечание

Количество

1

2852163

SUPPORT

Support

1шт.

2

2852161

BELT TENSIONER

Water Pump

1шт.

2

2855622

BELT TENSIONER

Alt, Serial Range: Part-2852161

1шт.

3

2852162

PULLEY,65mm OD

Pulley, Water Pump

1шт.

4

REF

INSTRUCTION

BELT; See Figure 02-01

1шт.

5

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

Replaces 4899031, M8 x 25 Gr 9.8; Used on Some Models

2шт.

6

4899109

SCREW,Hex, M10 x 1.5 x 80

1шт.

7

REF

INSTRUCTION

ALTERNATOR; See Figure 04-02

1шт.

8

REF

INSTRUCTION

WATER PUMP; See Figure 02-35

1шт.

9

REF

INSTRUCTION

FAN DRIVE; See Figure 02-39

1шт.

10

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.

Выбрано товаров: 11
