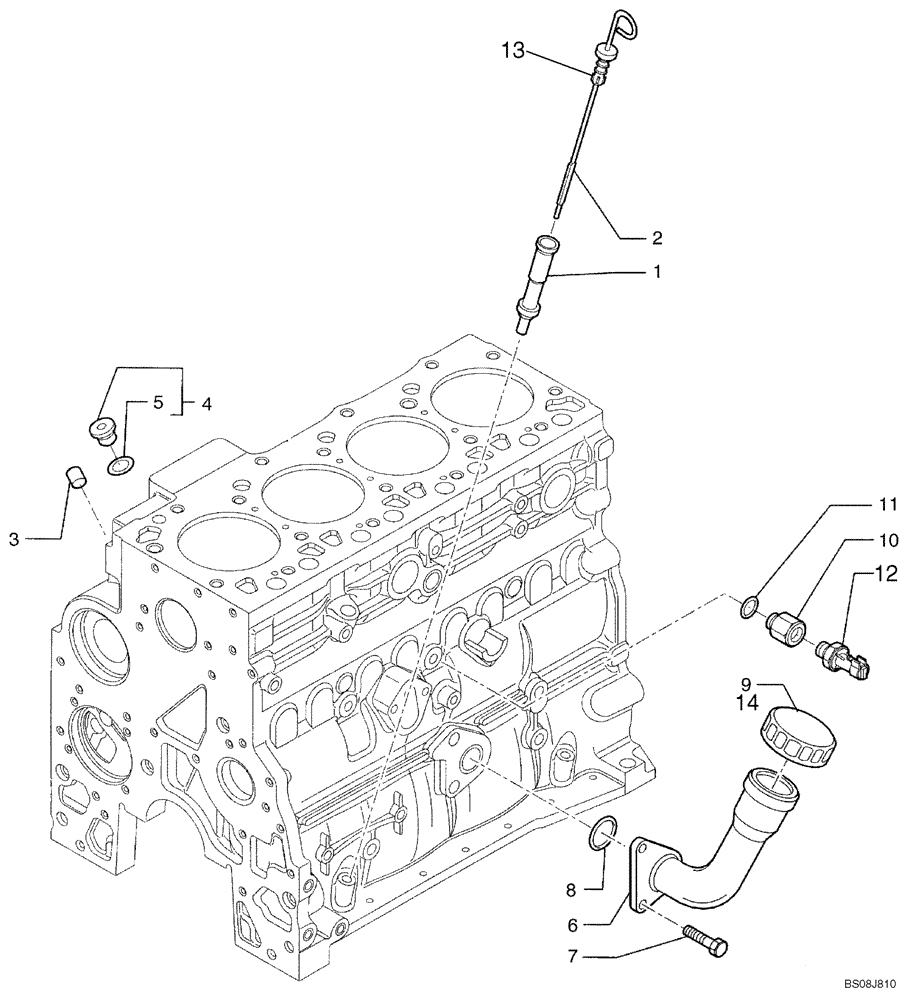

Запчасти Case 580M (02-30) - ENGINE, OIL (02) - ENGINE

1

2852122

TUBE,81 mm Length

1шт.

2

2852125

DIPSTICK,351.5mm L

Incl. 13

1шт.

3

4895406

EXPANSION PLUG,9.8mm OD

Replaces 4899036

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

Incl. Ref 5

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

2853407

NECK FILLER,143, 117.3 mm Length

Tube

1шт.

7

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

8

2852135

O-RING,2.6mm Thk x 37.7mm ID

O-Ring

1шт.

9

2853410

FILLER CAP,Female

Incl. 14

1шт.

10

2852140

HYD CONNECTOR

Reducer

1шт.

11

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

2852889

PRESSURE SWITCH

Oil Pressure

1шт.

13

2852127

GASKET,5mm ID, 18mm OD, 13mm OD, 43mm L

1шт.

14

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.
