Запчасти Case 580M (02-27) - DYNAMIC BALANCER, GEARS & SHAFTS (2830952) (02) - ENGINE

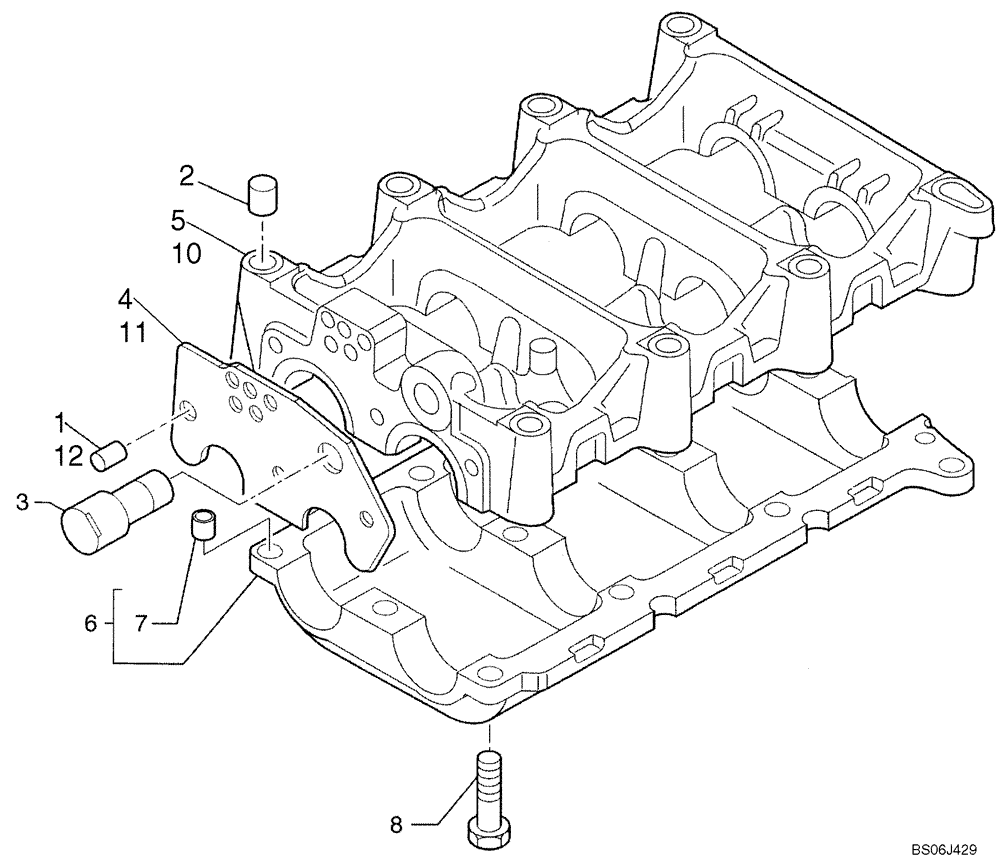

Схема запчастей Case 580M - (02-27) - DYNAMIC BALANCER, GEARS & SHAFTS (2830952) (02) - ENGINE
5
8
6
10
12
11
2
7
1
4
3

Артикул

Название

Примечание

Количество

2831300

HOUSING

Incl. Ref 1 - 8, 12; 2830953 Balancer Assy and 2853225 Balancer Assy; If Used; Replaces 2830952 Housing

1шт.

1

4892836

DOWEL

1шт.

2

4899027

DOWEL,M14.05 x 14 L

2шт.

3

2830948

IDLE SHAFT

1шт.

4

2830905

THRUST PLATE

1шт.

5

2830934

HOUSING

1шт.

6

2831101

HOUSING

Incl. Ref 7

1шт.

7

4891209

DOWEL,M13 x 8 L

2шт.

8

2830411

BOLT,Flng, M8 x 1.25 x 30mm

Flange, M8 x 30

3шт.

8

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

9шт.

2855744

HOUSING

Incl. Ref 2, 3, 10 - 12; 2855743 Balancer Assembly; If Used

1шт.

10

2855745

HOUSING

Housing Assy

1шт.

11

2855746

THRUST PLATE

1шт.

12

2831305

DOWEL,M8 x 17 L

1шт.

Выбрано товаров: 14
