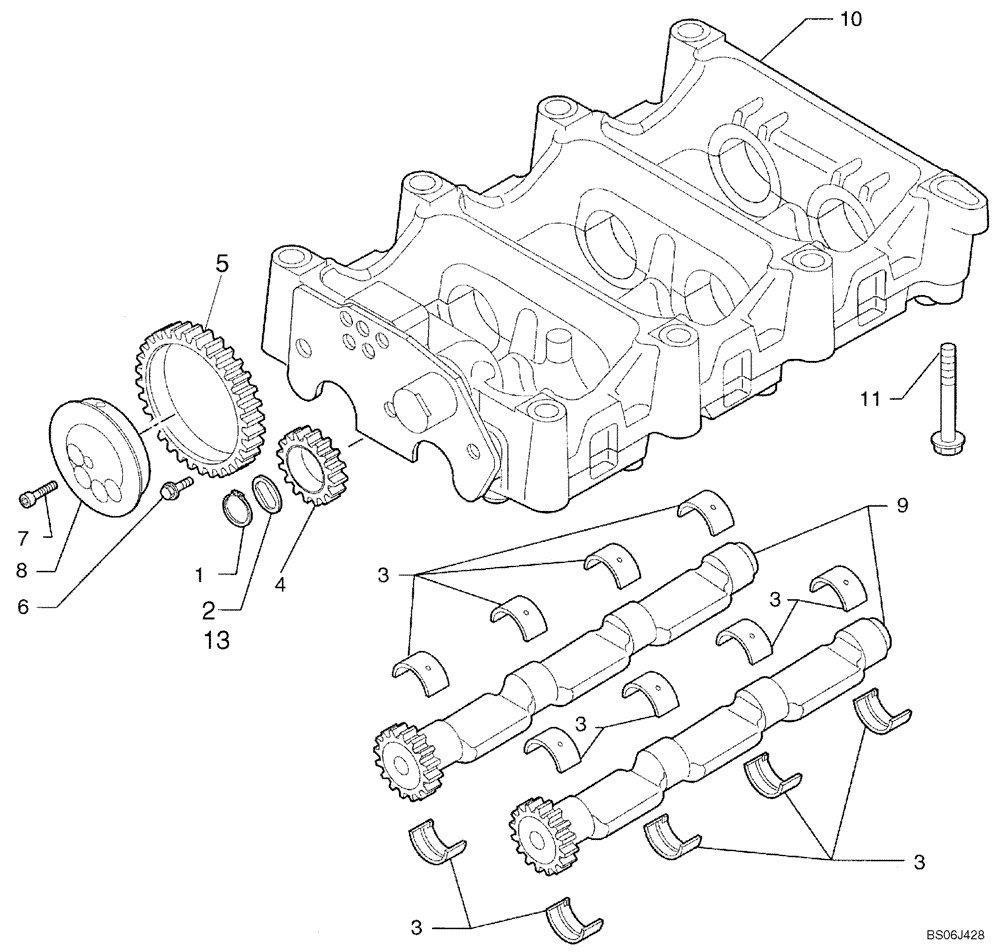

Запчасти Case 580M (02-26[*]) - DYNAMIC BALANCER, GEARS & SHAFTS (02) - ENGINE

1

4897125

SNAP RING,Ext, M23

1шт.

2

4897123

THRUST BEARING

1шт.

3

8093883

SET OF STD MAIN BRGS

Replaces 4897071;

16шт.

4

4897048

IDLER GEAR

1шт.

5

4896947

IDLER GEAR

1шт.

6

4895586

SCREW,Hex, Flg Hd, M8 x 16

3шт.

7

2830433

HEX SOC SCREW

(4) Used with 2830953 Balancer Assy

5-4шт.

8

2831031

IDLE SHAFT

No Longer Available; Order 2855743 Balance Assy, Ref 12

1шт.

9

2831354

SHAFT

2830953 And 2855743 Balancer Assy; Replaces 2831023

2шт.

9a

2853226

SHAFT ASSY.

2853225 Balancer Assy

2шт.

10

2831300

HOUSING

See Figure 02-27; 2830953 And 2853225 Balancer Assy; Replaces 2830952

1шт.

10

2855744

HOUSING

See Figure 02-27; 2855743 Balancer

1шт.

11

4899109

SCREW,Hex, M10 x 1.5 x 80

7шт.

11

4897934

SCREW,Hex, Flg Hd, M10 x 100

1шт.

12

2830953

BALANCER

Incl. Ref 1 - 9, 10; If Used

1шт.

12

2853225

HOUSING

Incl. Ref 1 - 8, 9A, 10; Includes (5) Ref 7 Screws; Fifth Screw Is Used During Assembly Under Balancer to Lock Shaft, But Must Be Removed After Balancer Is Assembled to Block; If Used

1шт.

12

2855743

BALANCER

Incl Ref 1, Ref 3 - 9, 2855744 Housing, Ref 10, Ref 13; If Used

1шт.

13

2855753

THRUST PLATE

Thrust Plate Brg; Used with 2855743 Ref 12

1шт.
