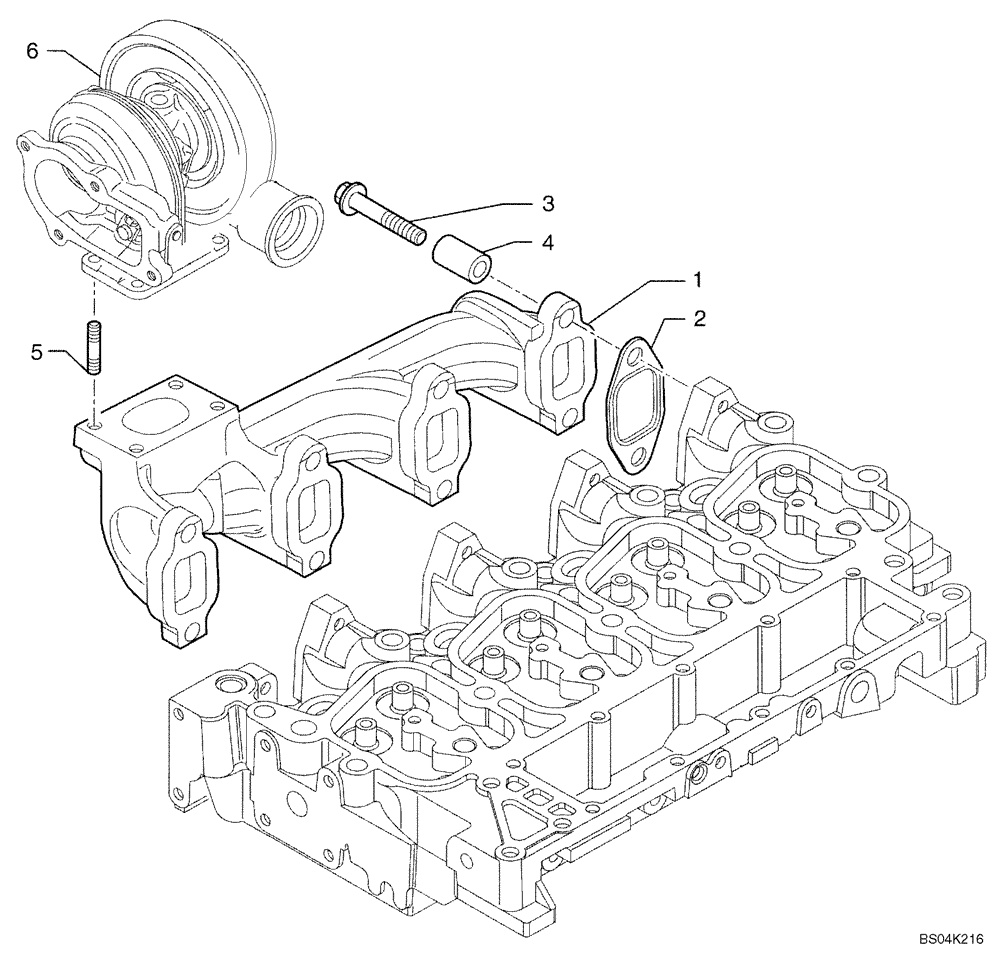

Запчасти Case 580M (02-20) - MANIFOLD - EXHAUST (02) - ENGINE

1

2831203

EXHAUST MANIFOLD

Models With Turbocharged Engine

1шт.

1

2852270

EXHAUST MANIFOLD

Models Without Turbocharged Engine

1шт.

2

2830445

MANIFOLD GASKET

4шт.

3

2852834

SCREW,Hex Flg, M10 x 1.5 x 40mm

Flange, M10 x 40; Models Without Turbocharged Engine

8шт.

3

2852744

SCREW,Flng, M10 x 1.5 x 65mm

Models with Turbocharged Engine

8шт.

4

2831209

SPACER

Models With Turbocharged Engine

8шт.

4

4895336

SPACER

Models Without Turbocharged Engine

8шт.

5

4899859

STUD,M8 x 37

Replaces 4899119

4шт.

6

REF

INSTRUCTION

TURBOCHARGER; See Figure 2-29

1шт.
