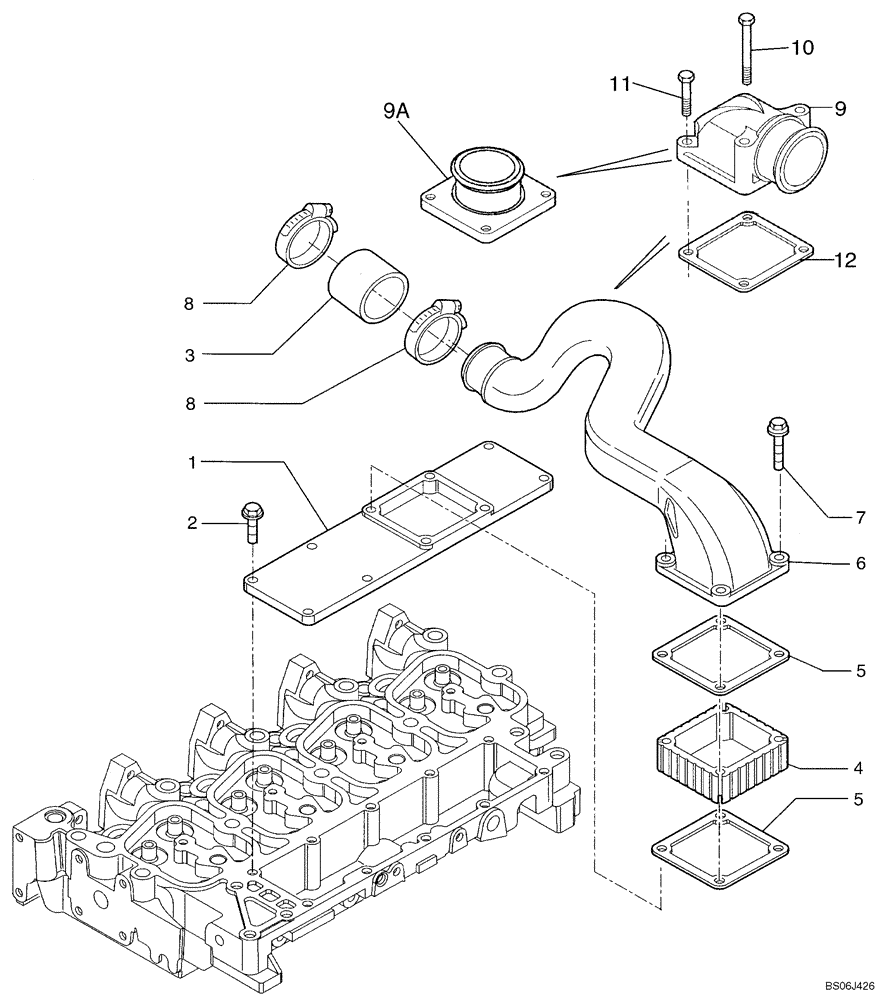

Запчасти Case 580M (02-19) - MANIFOLD - INTAKE (02) - ENGINE

1

2852044

INLET MANIFOLD

With or Without Turbocharged Engine; If used

1шт.

1

2856462

INLET MANIFOLD

COVER, With or Without Turbocharged Engine; If Used

1шт.

2

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

With or Without Turbocharged Engine

6шт.

3

2852029

HOSE,50mm ID x 64mm L

With Turbocharged Engines

1шт.

4

4895648

SPACER

With or Without Turbocharged Engine

1шт.

REF

INSTRUCTION

MODELS WITH TURBOCHARGED ENGINE

1шт.

5

4899921

GASKET,1.2mm Thk

2шт.

6

2852030

SUCTION PIPE

1шт.

7

4895294

BOLT,Flng, M8 x 1.25 x 80mm, Cl 10.9

4шт.

8

4899629

HOSE CLAMP,50.8mm - 63.5mm

If Used

2шт.

8

2853076

HOSE CLAMP

70 mm; If Used

2шт.

8

4895641

HOSE CLAMP,52.32mm - 76.2mm

Alternate, Serial Range: Part-2853076

2шт.

REF

INSTRUCTION

MODELS WITHOUT TURBOCHARGED ENGINE

1шт.

9

2852040

ELBOW

90 deg Air Inlet; If Used

1шт.

9a

2853867

AIR INTAKE

If Used

1шт.

10

2852266

FLANGE BOLT,Hex, M8 x 1.25 x 140mm

2шт.

11

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

2шт.

12

4899921

GASKET,1.2mm Thk

2шт.
