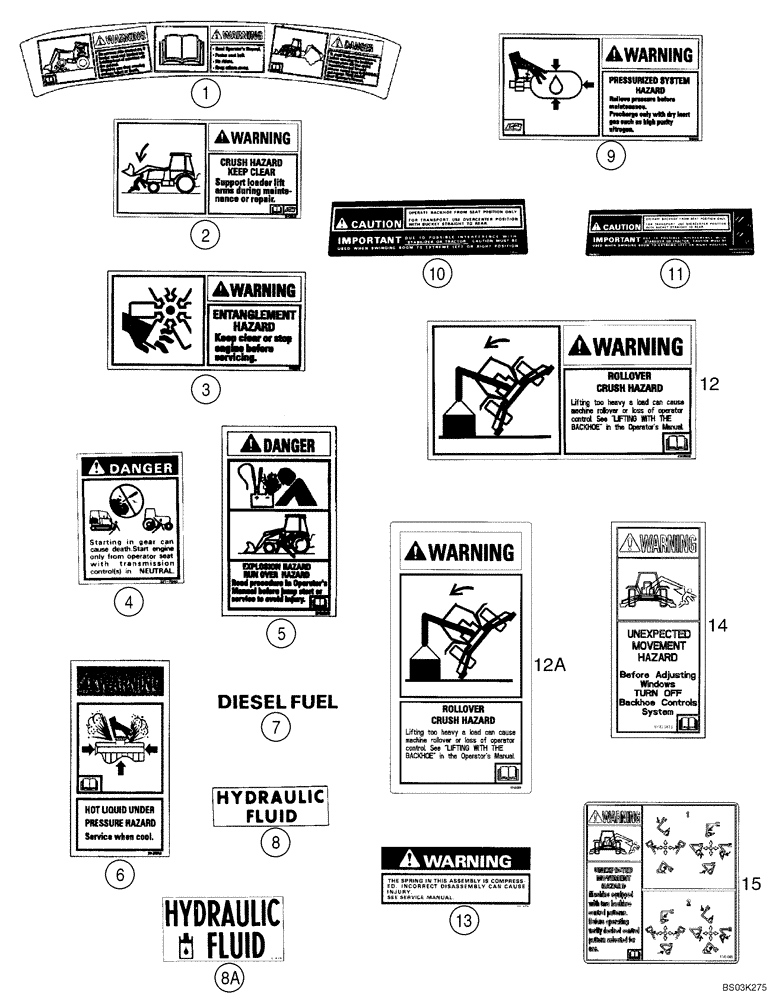

Запчасти Case 580M (09-81) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

1

398601A1

WARNING DECAL

Warning/Warning/Danger; Front, With Ride Control; Do Not Turn Ride Control On/Read Operator's Manual/To Avoid Inadvertent Movement

1шт.

2

398579A1

WARNING DECAL

Crush Hazard; Keep Clear; Support Loader Lift Arms During Maintenance

1шт.

3

398581A1

WARNING DECAL

Entanglement Hazard, Fan; Keep Clear or Stop Engine Before Servicing

2шт.

4

398676A1

DANGER DECAL

Starting In Gear

1шт.

5

398583A1

DANGER DECAL

Jump Start

2шт.

6

398571A1

WARNING DECAL

Hot Liquid Under Pressure

1шт.

7

398668A1

DECAL

Diesel Fuel

1шт.

8

398666A1

DECAL

Hydraulic Fluid

1шт.

8a

321-6376

DECAL

Hydraulic Fluid, English Decal Only

1шт.

9

398573A1

WARNING DECAL

Ride Control Accumulator

1шт.

10

398656A1

DANGER DECAL

Caution/Important; For All Models With Foot Swing Backhoe Controls and Standard Backhoe Models With Hand Swing

1шт.

11

398654A1

DANGER DECAL

Caution/Important; Extendahoe Backhoe Models With Hand Swing

1шт.

12

87435940

WARNING DECAL

Rollover Crush Hazard; Lifting Too Heavy A Load; Models Without Pilot Controls

1шт.

12a

87434772

WARNING DECAL

Rollover Crush Hazard; Lifting Too Heavy A Load; Models With Pilot Controls

1шт.

13

398671A1

DECAL

Warning; Seat Spring

1шт.

14

87429164

WARNING DECAL

Unexpected Movement Hazard; Before Adjusting Windows

2шт.

15

87429166

DECAL

Pilot Control Pattern; If Used

1шт.

15

87336844

WARNING DECAL

Unexpected Movement; Pattern Selecting; With Backhoe/Excavator Black Silhouette on Decal; If Used; Not Illustrated

1шт.
