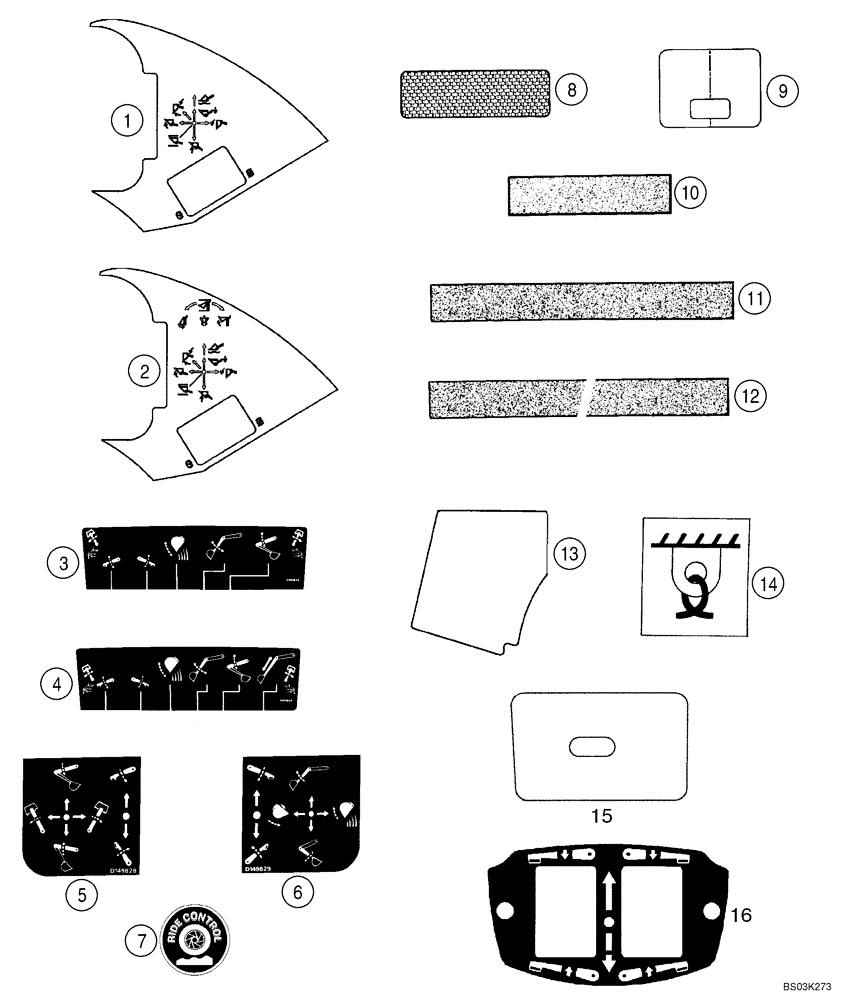

Запчасти Case 580M (09-74) - DECALS (09) - CHASSIS/ATTACHMENTS

1

384930A2

DECAL

Two Function Loader Control

1шт.

2

384931A2

DECAL

Three Function Loader Control

1шт.

3

D149824

DECAL

Upper; Standard Backhoe Control Pattern

1шт.

4

D149825

DECAL

Upper; Extendahoe Control Pattern; With Foot Swing

1шт.

5

D149828

DECAL

Upper; Standard Backhoe Control Pattern; With Hand Swing; Left-Hand Side Of Console

1шт.

6

D149829

DECAL

Upper; Standard Backhoe Control Pattern; With Hand Swing; Right-Hand Side Of Console

1шт.

7

304083A1

DECAL

Ride Control

2шт.

8

449842A1

REFLECTOR,160mm x 50.8mm H - Red

2 x 6-5/16 in; Red, Reflector

2шт.

9

192450A1

DECAL

Clear Vinyl; Hood

1шт.

10

D55216

PAD,2" x 9"

2 x 9 in

2-11шт.

11

D80270

ANTI-SKID STRIP,635mm / 25 Inch

635 mm (25 in)

3-4шт.

12

307348A1

ANTI-SKID STRIP

700 mm (27-9/16"); 40 gallon fuel tank

2шт.

13

367848A2

PAD

Anti-Skid; Canopy Models

1шт.

14

87626017

DECAL

Tie Down; Replaces 139728A1

4шт.

15

406723A1

DECAL

Poly Film; Lockup Cover; Canopy Models

1шт.

16

87423812

DECAL

Stabilizer Switch; Models With Pilot Controls

1шт.
