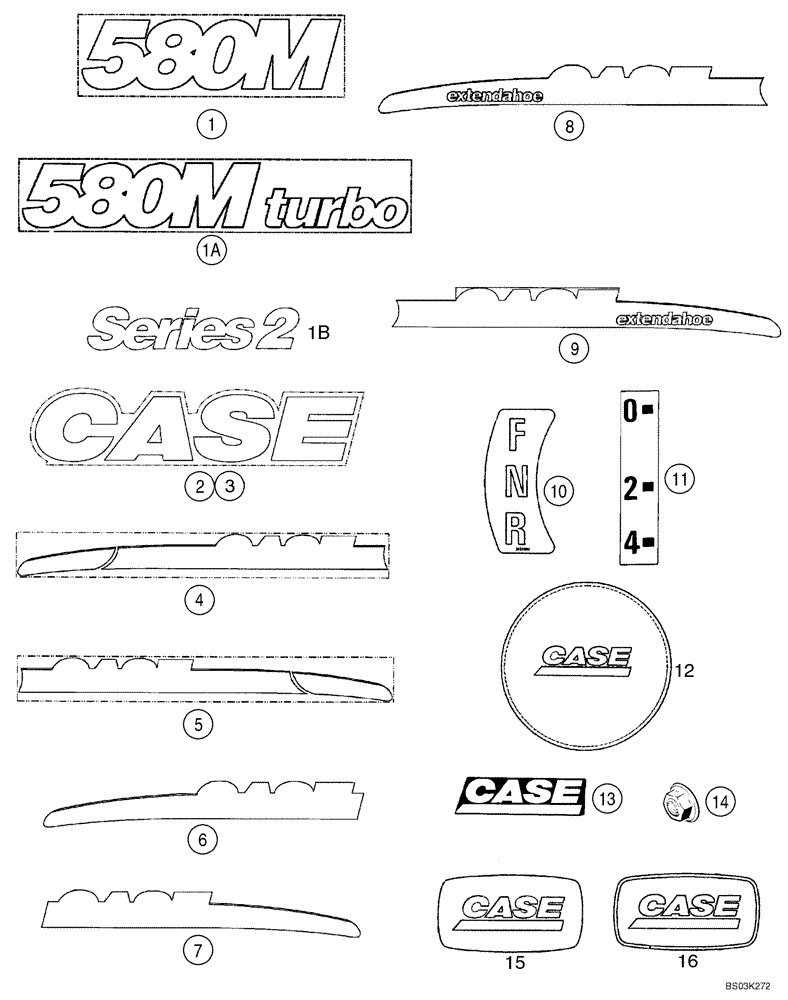

Запчасти Case 580M (09-73) - DECALS (09) - CHASSIS/ATTACHMENTS

1

401462A1

DECAL

Model Designation

2шт.

1a

401466A1

DECAL

Model Designation

2шт.

1b

87436192

DECAL

Series 2

2шт.

2

401457A1

DECAL

525 mm (20-11/16 in) Wide; Case Logo; Loader Arm

2шт.

3

401458A1

DECAL

655 mm (25-13/16 in) Wide, Case Logo; Backhoe Dipper

4шт.

4

401459A2

DECAL

Case, Loader Arm Pin Stripe, Left-Hand Stripe

1шт.

5

401460A2

DECAL

Case, Loader Arm Pin Stripe, Right-Hand Stripe

1шт.

6

407009A2

DECAL

Case, Standard Dipper, Left-Hand Stripe

1шт.

7

407010A2

DECAL

Case, Standard Dipper, Right-Hand Stripe

1шт.

8

373698A2

DECAL

Case, Extendahoe Dipper, Left-Hand Stripe

1шт.

9

373699A2

DECAL

Case, Extendahoe Dipper, Right-Hand Stripe

1шт.

10

395910A2

DECAL

FNR (Forward/Neutral/Reverse); Shuttle Shift Lever Control Pattern

1шт.

11

321-1708

DECAL

0-2-4, Clam Bucket Opening Indicator

1шт.

12

87435569

EMBLEM

Insert, Case; Steering Wheel

1шт.

13

186989A1

EMBLEM

EMBLEM, Case

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

15

87415931

DECAL

Case, 37 x 70 mm; Located On Engine Filters

2шт.

16

87429186

EMBLEM

Case, 37 x 70 mm; Located On Engine

1шт.
