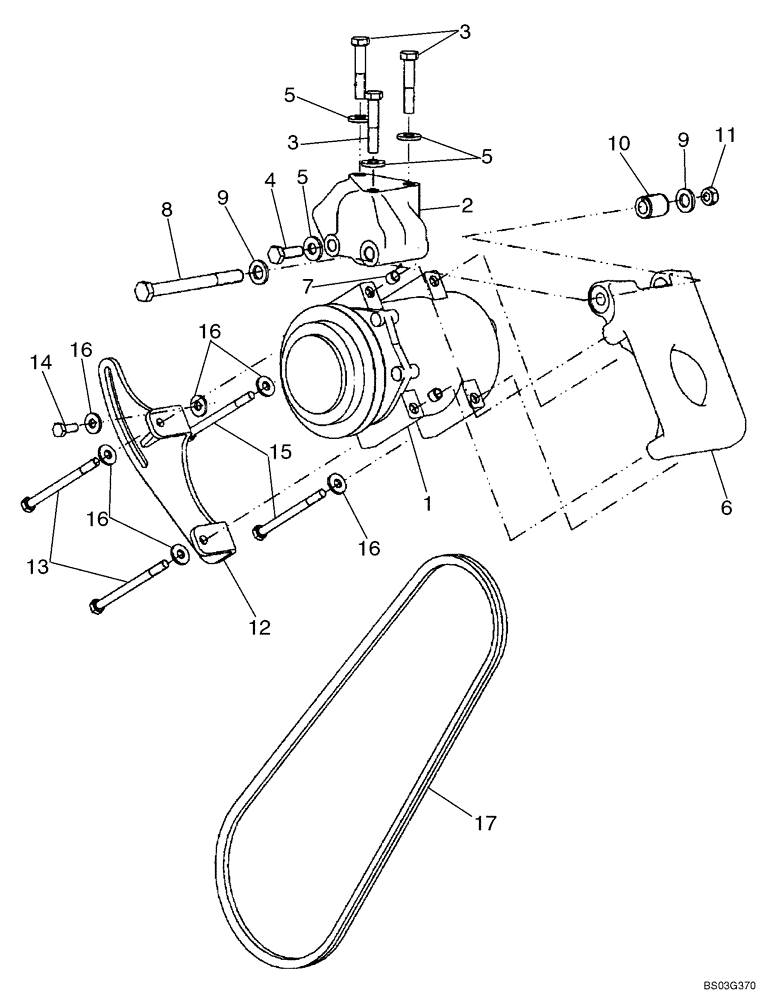

Запчасти Case 580M (09-67) - CAB - AIR CONDITIONING COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

87430122

AIRCOND. COMPRESSOR

Compressor Component Parts Not Serviced Separately

1шт.

84159489R

REMAN-COMPRESSOR,12V, W/ Clutch, W/ Pulley

580M SERIES 2 LOADER BACKHOETIER 2 (2/04-) Reman for new P/N 87430122

1шт.

84159489C

CORE-COMPRESSOR

Return Number

1шт.

2

87429950

SUPPORT

Mounting Support

1шт.

3

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

3шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

6

87429948

SUPPORT

1шт.

7

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

2шт.

8

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

87429951

SPACER,12.5mm ID x 22.4mm OD x 27mm L

Pivot

1шт.

11

829-1412

NUT,M12, Cl 10.9

1шт.

12

87429949

BRACKET, SUPPORTING

1шт.

13

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

15

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

17

87429954

BELT,1265.00 mm L

1шт.
