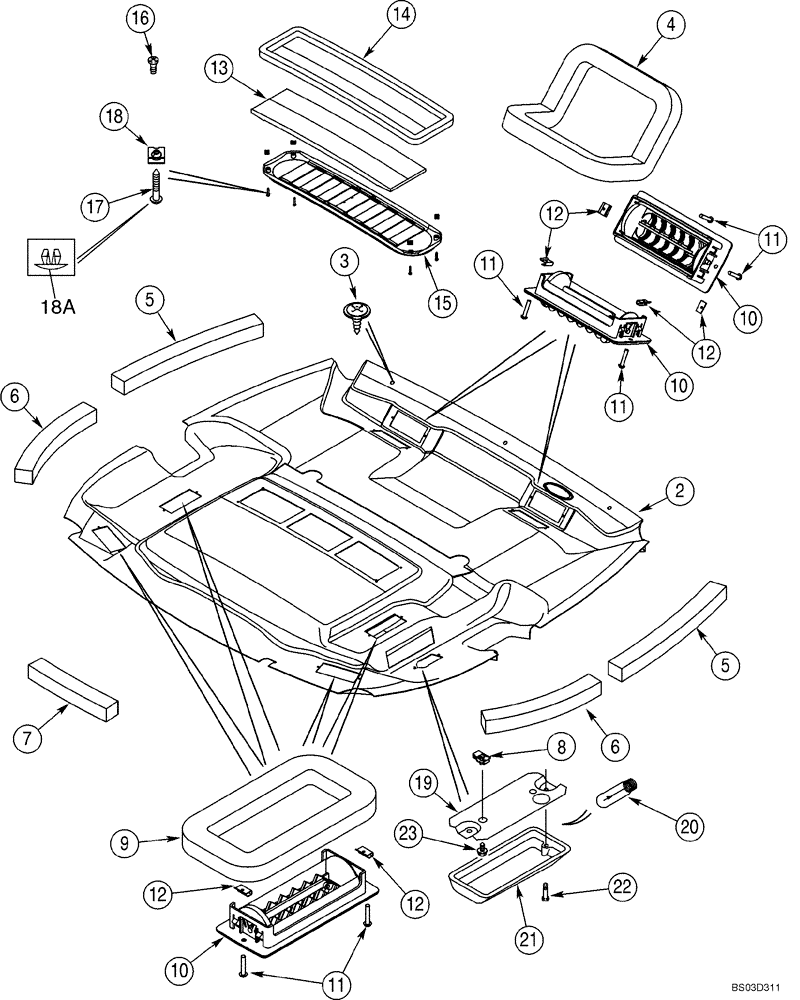

Запчасти Case 580M (09-61) - CAB HEADLINER - FILTER, LOUVERS, DOME LAMP (09) - CHASSIS/ATTACHMENTS

367705A6

ROOF LINING

HEADLINER ASSY, Standard Interior; Incl. Ref 1, 4 - 18A

1шт.

360272A6

HEADER

HEADLINER ASSY, Deluxe Interior; Incl. Ref 2, 4 - 18A

1шт.

1

367704A4

ROOF LINING

Shell; Standard Interior; Not Illustrated

1шт.

2

381696A5

ROOF LINING

Shell With Foam and Fabric Covering; Deluxe Interior

1шт.

3

396516A1

SCREW,POINTED

3шт.

4

368813A2

SEAL,168mm L

Defrost

2шт.

5

379160A1

FOAM INSULATION,50mm W x 494mm L x 45mm Thk

494 mm; Foam; Adhesive Back; Front

2шт.

6

379161A1

SEAL,379mm L

379 mm; Foam; Adhesive Back; Rear

2шт.

7

379209A1

SEAL,303mm L

303 mm; Foam; Adhesive Back, Center, Rear

1шт.

8

131-861

SPRING NUT,Tinn, U, #10-24

Dome Lamp

2шт.

9

377194A1

SEAL

Heat and Air

4шт.

10

363883A1

LOUVER

8шт.

11

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

16шт.

12

125749A1

SPRING NUT

J-Type, No. 6

16шт.

13

377594A5

FILTER

Air Recirculation

1шт.

14

381972A1

SEAL,592.5mm L

1шт.

15

369450A1

GRILLE

Air Recirculation; Incl. Ref 16

1шт.

16

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

2шт.

17

414600A1

SCREW,Pan HD, M8 x 1"

4шт.

18

177269A1

SPRING NUT,M4.2

4шт.

18a

409723A1

PLUG

Plastic; Fits 5,5 mm Hole

4шт.

380719A2

INTERIOR LIGHT

(If Pin A = 12V - Order 47602061, if Pin A = Grd - Order 47774628) Dome Lamp; Incl. Ref 19 - 21

1шт.

47602061

COURTESY LIGHT

1шт.

47774628

COURTESY LIGHT

1шт.

19

NSS

NOT SOLD SEPARAT

Base

1шт.

20

N14466

BULB

1шт.

21

NSS

NOT SOLD SEPARAT

Lens; With Switch

1шт.

22

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

Base to Lens

2шт.

23

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

No. 10 x 3/4; Lamp To Headliner

2шт.
