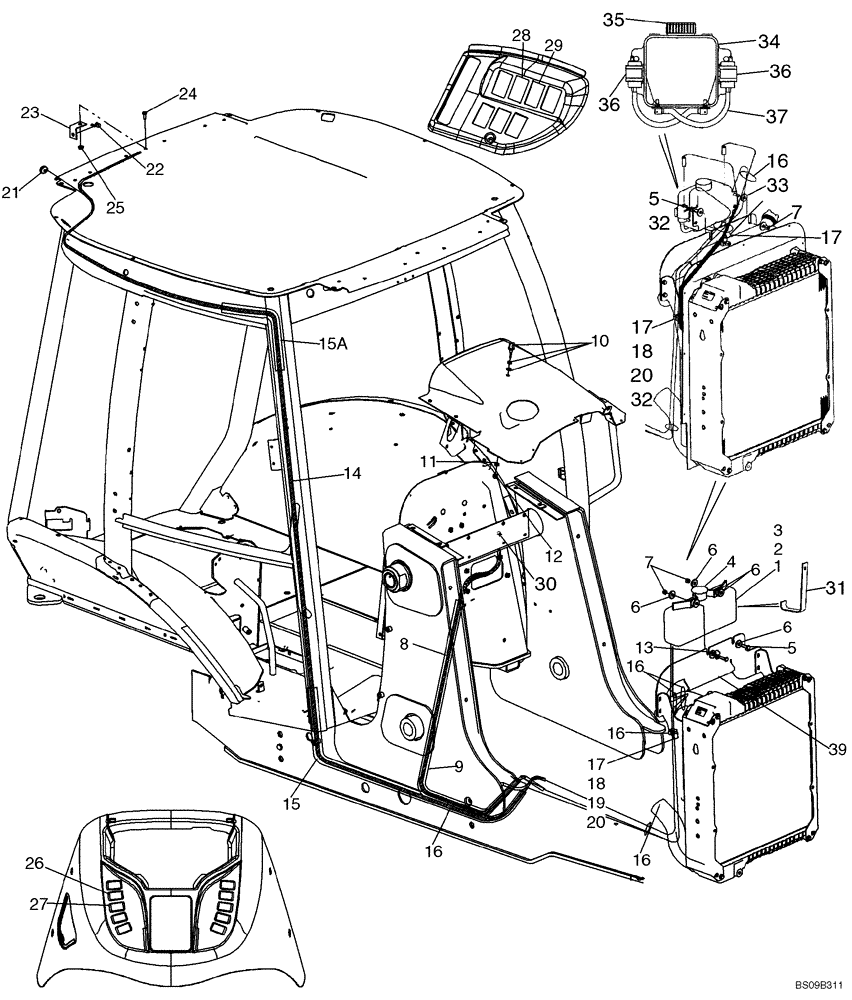

Запчасти Case 580M (09-59) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

E46560

RESERVOIR

Incl. Ref 1 - 4; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR

1шт.

2

E47239

SEAL,6.5mm ID x 12mm OD x 10mm L

2шт.

3

E47238

PUMP,12V

MOTOR, 12 Volt

2шт.

4

E47240

PLUG

Cap

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

7шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

8

87428316

HOSE, BULK

HOSE, METERS 3150 mm (124-1/64 in); Front Washer; Cut From 1968141CX

1шт.

9

386718A3

GUARD

1630 mm (64-3/16 in); Cut From 397155A2

1шт.

10

284154A1

NOZZLE,3/8" - 16

Front, Includes A Steel and Rubber Washer Which Are Not Serviced SeparatelyBrass; If Used

1шт.

10

E43769

SPRAY

NOZZLE; Front; Includes Rubber Gasket; Plastic; If Used

1шт.

11

492-11038

LOCK WASHER,3/8"

If Used

1шт.

12

425-106

NUT,3/8"-16, Cl 5

If Used

1шт.

13

D147383

CLIP,5/8" J

J-Clamp, 5/8

1шт.

14

87423346

HOSE

6325 mm (249-1/64 in); Rear Washer; Cut From 1968141CX

1шт.

15

408966A1

GUARD

2200 mm (86-5/8 in); Rear Washer Hose; Lower; Cut From 397155A2

1шт.

15a

408965A1

GUARD

550 mm (21-11/16 in); Rear Washer Hose, Upper; Cut From 397155A2

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

6шт.

17

D147383

CLIP,5/8" J

J-Clamp, 5/8

1шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

21

87442441

GROMMET,27mm OD, 9.53mm ID, 11.1mm L

Washer, Hose

1шт.

22

E43769

SPRAY

Rear Nozzle; Includes Rubber Seal Which Is Not Serviced Separately

1шт.

23

386720A1

BRACKET

Rear Nozzle

1шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

26

386785A1

WINDSHIELD WIPER SWI

Front Wiper

1шт.

27

386787A1

WINDSHIELD WASHER SW

Front

1шт.

28

386786A1

ROCKER SWITCH

Rear Wiper

1шт.

29

386788A1

WINDSHIELD WIPER SWI

Rear Washer

1шт.

30

87444176

HOSE CLIP

If Used

1шт.

31

87442924

BRACE

Used With E46560 Reservoir; If Used

1шт.

32

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

33

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

87448685

WINDSHIELD WASHER

RESERVOIR; Incl. Ref 34 - 38; If Used

1шт.

34

87449514

RESERVOIR, WINDSHIEL

2 Quart

1шт.

35

86507190

CAP

1шт.

36

86507198

PUMP,Windshield Washer

Component Parts Not Serviced Separately

2шт.

37

87449517

HOSE, BULK

HOSE, METERS 203 mm (8 in)

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Not Illustrated

1шт.

39

87448489

BRACKET

Replaces 87417223

1шт.
