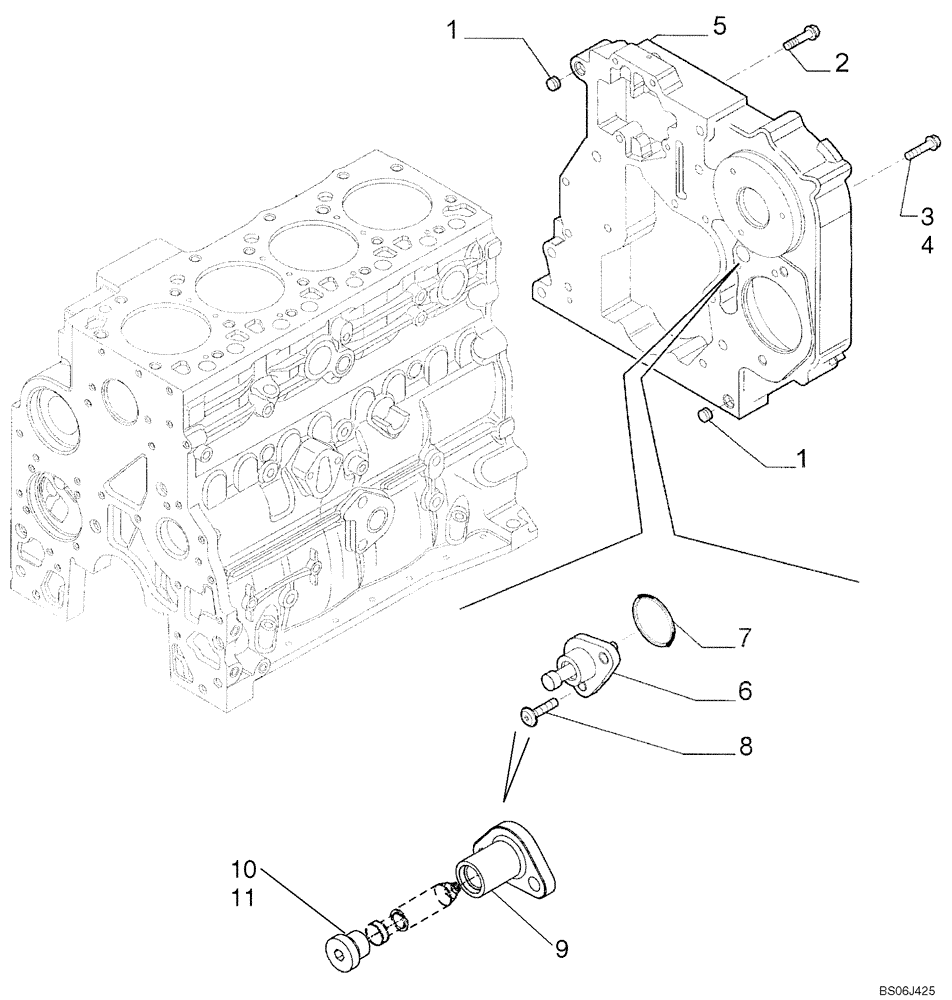

Запчасти Case 580M (02-12) - CYLINDER BLOCK - COVERS (02) - ENGINE

1

4899026

DOWEL,M18 x 10

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

5шт.

4

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

2шт.

5

2853671

HOUSING

Rear Cover

1шт.

6

2852515

PIN

Timing Pin and Housing; Includes (1) 2852517 Internal O-Ring, (1) 2852759 Ring, (1) 2852516 Pin, (1) 2852518 Housing; If Used

1шт.

2852517

O-RING

1шт.

2852759

CIRCLIP

1шт.

2852516

PIN

1шт.

2852518

HOUSING

1шт.

7

17278781

O-RING

Replaces 2852519

1шт.

8

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

9

2855287

HOUSING

Timing Pin and Housing, Incl. Ref 10, 11; If Used

1шт.

10

16882515

PLUG

Socket Head Plug

1шт.

11

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.
