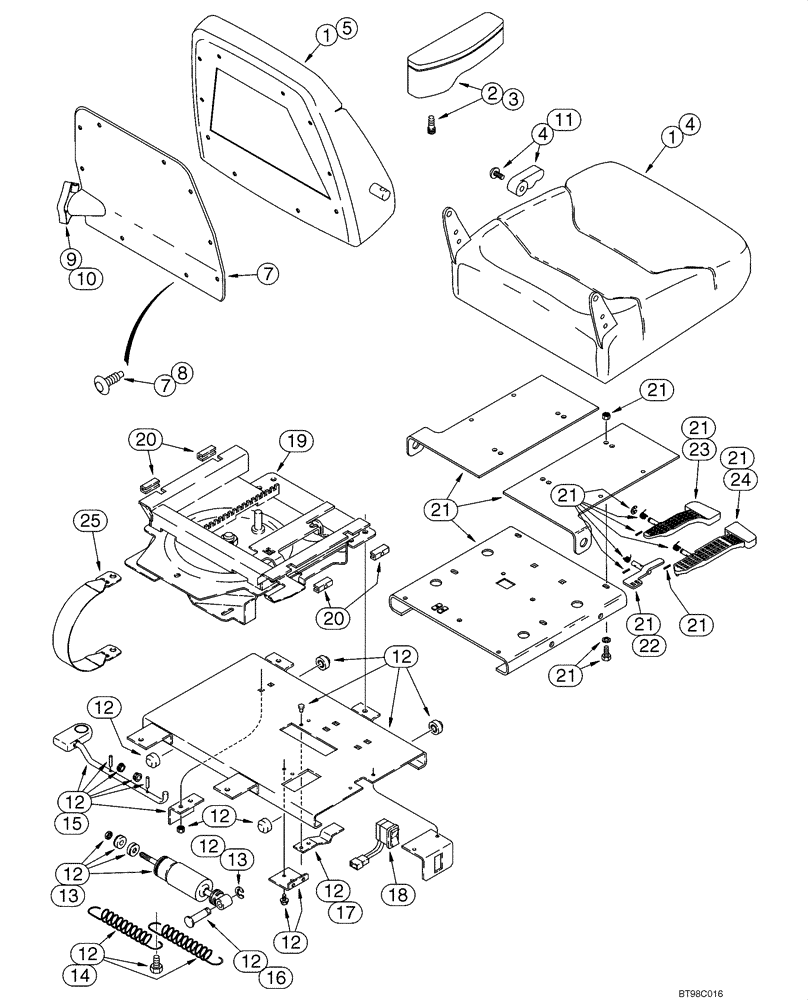

Запчасти Case 580M (09-51) - SEAT ASSY, AIR SUSPENSION (SEARS) (09) - CHASSIS/ATTACHMENTS

121414A1

FUSE,20A, Mini, Yellow

Not Illustrated

1шт.

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

M12 x 30

4шт.

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

397137A1

SEAT ASSY.

Air Suspension Seat, Cloth, With Armrests, Incl. Ref 1 - 25; Also Includes Parts On Figure 09-52

1шт.

1

400981A1

KIT

Seat Cushion and Backrest, Includes Seat, Backrest, Backrest Cover and Hardware

1шт.

2

300659A1

KIT

Armrest, Right-Hand, Includes Armrest Knob and Shaft, Groove Pin, Pivot Stud and Screw

1шт.

3

300661A1

KIT

Armrest, Left-Hand, Includes Armrest Knob and Shaft, Groove Pin, Pivot Stud and Screw

1шт.

4

400837A1

KIT

Seat Cushion, With Frame, Includes (5) Clips, (18) Rings, (1) Screw and Recliner Handle

1шт.

5

400838A1

KIT

Backrest Cushion, With Frame, Includes (23) Rings, Lumbar, (2) Screws and (2) Clips

1шт.

6

176091A1

PACKAGE,SERVICE

Package of 48 Rings For Cushions, Not Illustrated

1шт.

7

300664A1

KIT

Backrest Cover and Retainers, Incl. Ref 8

1шт.

8

1999693C1

KIT

Clip, Package of 14

1шт.

9

300665A1

KIT

Lumbar, Includes Actuator

1шт.

10

300667A1

KNOB

Lumbar

1шт.

11

1987212C1

PACKAGE

Seat Cushion Back Tilt Knob, Includes Knob, Recliner Handle and (1) Screw

1шт.

12

300670A1

KIT

Lateral Isolator Assy, Incl. Ref 13 - 17

1шт.

13

1987219C2

SET OF PARTS

Lateral Isolator Shock, Includes Shock Absorber, (1) Bearing, (2) Bushings, (1) Nut, (2) Washers, (1) Spacer, (1) Ring

1шт.

14

1987290C1

SET OF PARTS

Spring, Includes (2) Springs, (1) Bolt

1шт.

15

259054A1

SET OF PARTS

Lock, Includes Latch Rod, Bracket, (2) Bearings, Knob, (2) Roll Pins

1шт.

16

1344025C1

PIVOT PIN

1шт.

17

1344026C1

SPRING

1шт.

18

300672A1

SWITCH

Rocker, Height Adjustment

1шт.

300674A1

HARNESS

Swivel Switch, Not Illustrated

1шт.

19

300675A1

KIT

Slide/Swivel Assy, Incl. Ref 21

1шт.

20

300680A1

KIT

Slide Blocks, Includes (2) Adjustable Slider Blocks, (2) Stationary Slider Blocks, (2) Setscrews

1шт.

21

300677A1

KIT

Upper Slide Plate Assy, Includes Upper Slide Plate, Slide and Swivel Levers, (3) Springs, (3) Roll Pins, (3) E-Rings and Slide Latch, Incl. Ref 22 - 24

1шт.

22

300679A1

SLIDE

Latch

1шт.

23

300681A1

CONTROL LEVER

Slide

1шт.

24

300683A1

LEVER

Swivel

1шт.

25

300684A1

SAFETY BELT

SAFETY BELT

1шт.
