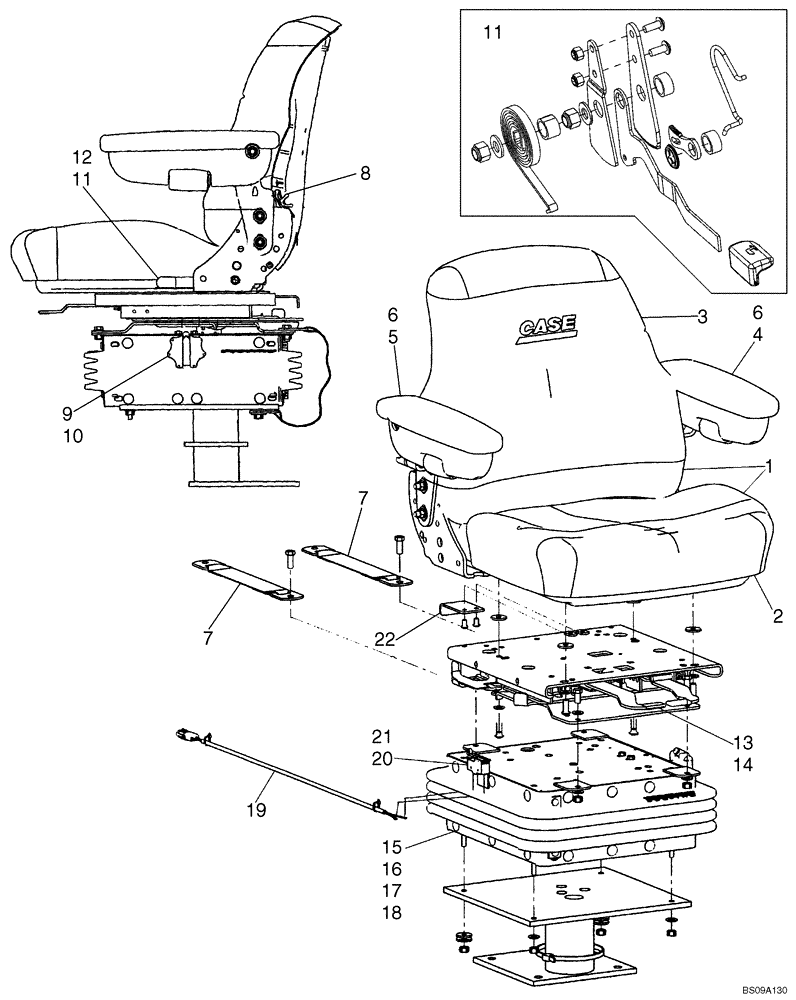

Запчасти Case 580M (09-50A) - SEAT ASSY, MECHANICAL SUSPENSION (SEARS) (09) - CHASSIS/ATTACHMENTS

87399492

DRIVER SEAT

Vinyl, Mechanical Suspension, Sears SA26269; This Seat is Located 19 mm (3/4 in) Farther Forward From Center of Pedestal; Incl. Ref 1 - 21; Also Includes 87555125 Pedestal Assy; Replaces 87454295 Seat Assy, Which Included 87349995 Pedestal

1шт.

87399491

DRIVER SEAT

Cloth, Mechanical Suspension, Sears SA26268; This Seat is Located 19 mm (3/4 in) Farther Forward From Center of Pedestal; Incl. Ref 1 - 21; Also Includes 87555125 Pedestal Assy; Replaces 87454294 Seat Assy, Which Included 87349995 Pedestal

1шт.

87555125

PEDESTAL

Assembly; 87399492 or 87399491 Seat Assy; Replaces 87349995 Pedestal Assy Used in 87454295 or 87454294 Seat Assy

1шт.

1

87308118

SEAT

Top Assy, Vinyl; Includes Back and Seat Cushions

1шт.

1

87308157

SEAT BACK

Top Assy, Cloth; Includes Back and Seat Cushions

1шт.

2

87308119

SEAT CUSHION

Vinyl

1шт.

2

87308158

SEAT CUSHION

Cloth

1шт.

3

87308127

SEAT BACK

Vinyl

1шт.

3

87308159

SEAT CUSHION

Cloth

1шт.

4

87308153

ARMREST

Left-Hand

1шт.

5

87308152

ARMREST

Right-Hand

1шт.

6

87308154

SEAT ACCESSORY

Kit, Arm Pad; Includes (1) Arm Pad, (1) Screw

2шт.

7

87308128

SEAT ACCESSORY

Kit, Tether Belt; Includes (2) Tether Belts, (2) Bolts, (4) Washers, (2) Lock Nuts

1шт.

8

87037462

SEAT BACK ADJUST DEV

Lumbar Knob Kit; Includes Knob, 1/8 x 5/8 Roll Pin

1шт.

87308130

SEAT BACK ADJUST DEV

Kit, Lumbar; Includes (2) Screws, (2) Rivets, (1) Back Support, (1) Lumbar Shaft Yoke

1шт.

9

123969A1

SEAT ACCESSORY

Kit, Height/Weight Adjustment; Incl (1) Knob, (1) Shaft, (1) 5/32 x 1 in Roll Pin

1шт.

10

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

130674A1

SET

Kit, Weight Adjustment; Includes (1) Thrust Washer, (2) Shaft and Gear

1шт.

87308145

THRUST WASHER

2 OD x .6 in ID

1шт.

11

86994165

SEAT ACCESSORY

Recliner Kit; Includes (2) Brackets, (3) Spacers, (2) Springs, Knob, Latch, Lever, (2) Bolts, (2) Washers, (5) Nuts

1шт.

12

87416475

KNOB

Recliner Cap

1шт.

87308143

SEAT SUPPORT

Upper Housing, Boxed

1шт.

1977725C1

SLIDER

Kit, Bearing, Slider Block; Includes (4) Tube Bearings, (1) Ride Indicator, (1) A45512 Slider Block, (1) A45515 Slider Block, (1) A45516 Slider Block, (1) NSS Slider Block

1шт.

13

87308131

SEAT ACCESSORY

Swivel Assembly

1шт.

14

87308132

BEARING ASSY

Swivel Bearing; Includes (1) Bolt, (8) Ball Bearings, (1) Clip, (1) Nut, (1) Cotter Pin, (1) Plastic Washer, (1) Ball Retainer

1шт.

15

87308141

SEAT SUPPORT

Kit, Suspension Assembly, Boxed

1шт.

16

87308144

SEAT SUPPORT

Suspension Arm, Boxed

1шт.

17

87308146

SEAT ACCESSORY

Kit, Spring, Suspension

1шт.

18

87308147

SEAT ACCESSORY

Kit, Boot, Suspension, Boxed; Includes (1) Boot, (26) Buttons

1шт.

87308148

SEAT ACCESSORY

Kit, Shock Absorber, Boxed; Includes (1) Shock Absorber, (2) Bushings

1шт.

51200906

BRACKET

Shaft, Suspension

1шт.

112884A1

SHAFT,368mm L

Bearing Shaft Weldment, Boxed

2шт.

A45504

SPRING WASHER

Spring, Square, With Weldnut

1шт.

A45505

GEAR

Large Gear and Shaft Weldment

1шт.

A45513

GEAR

Gear and Shaft Weldment

1шт.

A45054

BUMPER,Neoprene

Rubber, Black

2шт.

87308142

SEAT SUPPORT

Lower Housing, Boxed

1шт.

19

87308149

WIRE HARNESS

1шт.

20

87308150

SWITCH

Seat

1шт.

21

87308151

SEAT ACCESSORY

Kit, Switch and Actuator Lever; Includes Switch, Actuator, (4) Screws, (2) Lock Washers, (2) Nuts

1шт.

22

84174986

BRACKET

Front Stop

1шт.
