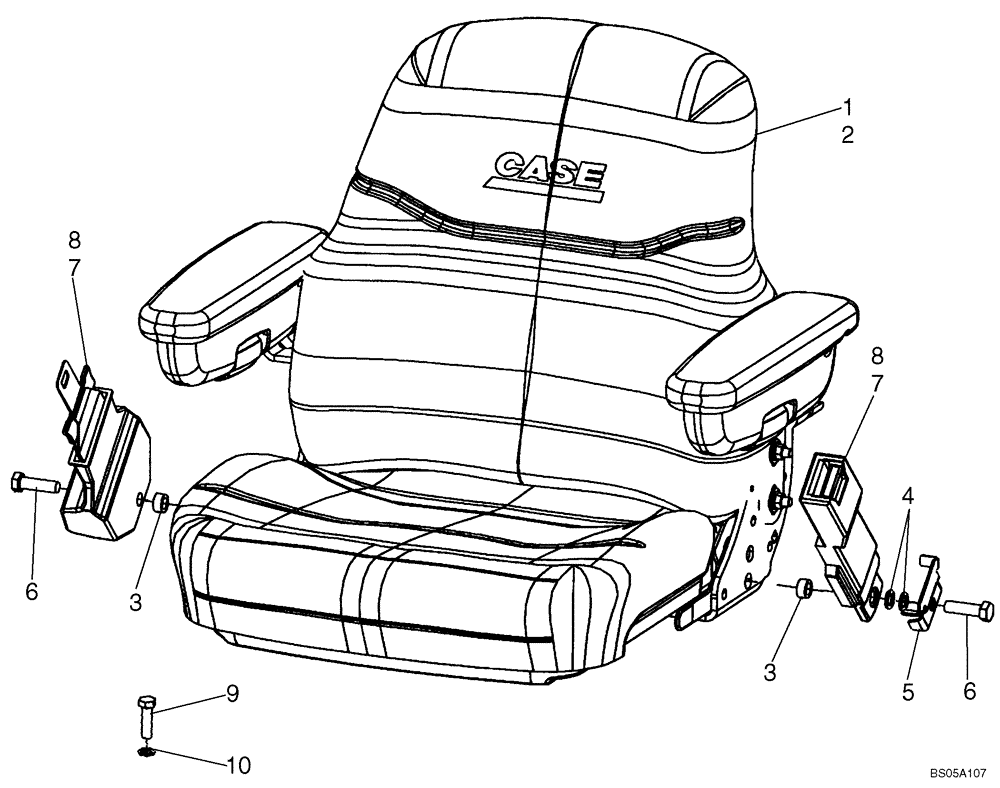

Запчасти Case 580M (09-46B) - SEAT - MOUNTING (SEARS MECHANICAL SUSPENSION) (09) - CHASSIS/ATTACHMENTS

1

87399492

DRIVER SEAT

Mechanical Suspension, Sears SA26269, Vinyl, With Armrests; This Seat is Located 19 mm (3/4 in) Farther Forward From Center of Pedestal; See Figure 09-50A; Replaces 87454295

1шт.

2

87399491

DRIVER SEAT

Mechanical Suspension, Sears SA26268, Cloth, With Armrests; This Seat is Located 19 mm (3/4 in) Farther Forward From Center of Pedestal; See Figure 09-50A; Replaces 87454294

1шт.

3

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

4

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

Left-Hand Side

2шт.

5

87310149

BRACKET

Belt Mounting

1шт.

6

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

7

87408888

SAFETY BELT ,76.20 mm W

Retractable, If used

1шт.

8

87408889

SAFETY BELT ,50.80 mm W

If used

1шт.

9

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

Locking, M12 x 30; Seat Pedestal to Floor

4шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.
