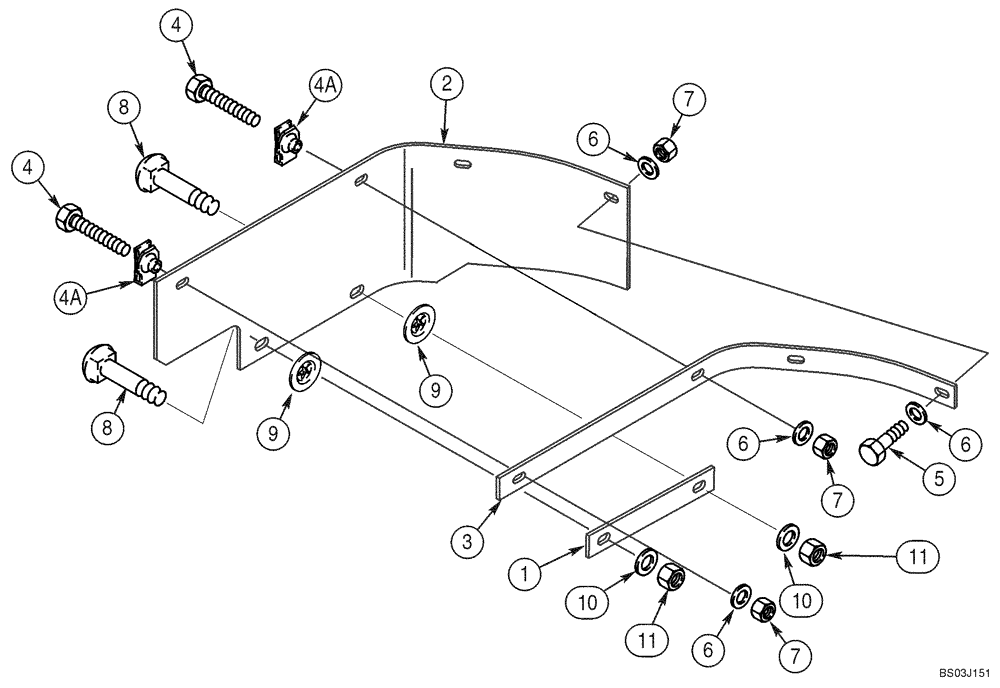

Запчасти Case 580M (09-45) - GUARD, MUD (09) - CHASSIS/ATTACHMENTS

1

362557A1

STRIP

Plate

1шт.

2

362556A2

GUARD

Mounts At Right-Hand Fender

1шт.

3

362558A1

STRIP

Angle

1шт.

4

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

4a

833-40408

NUT,M8, U

2шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

495-21038

WASHER,5/16"

6шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

8

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

M10 x 40

2шт.

9

368417A1

WASHER

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
