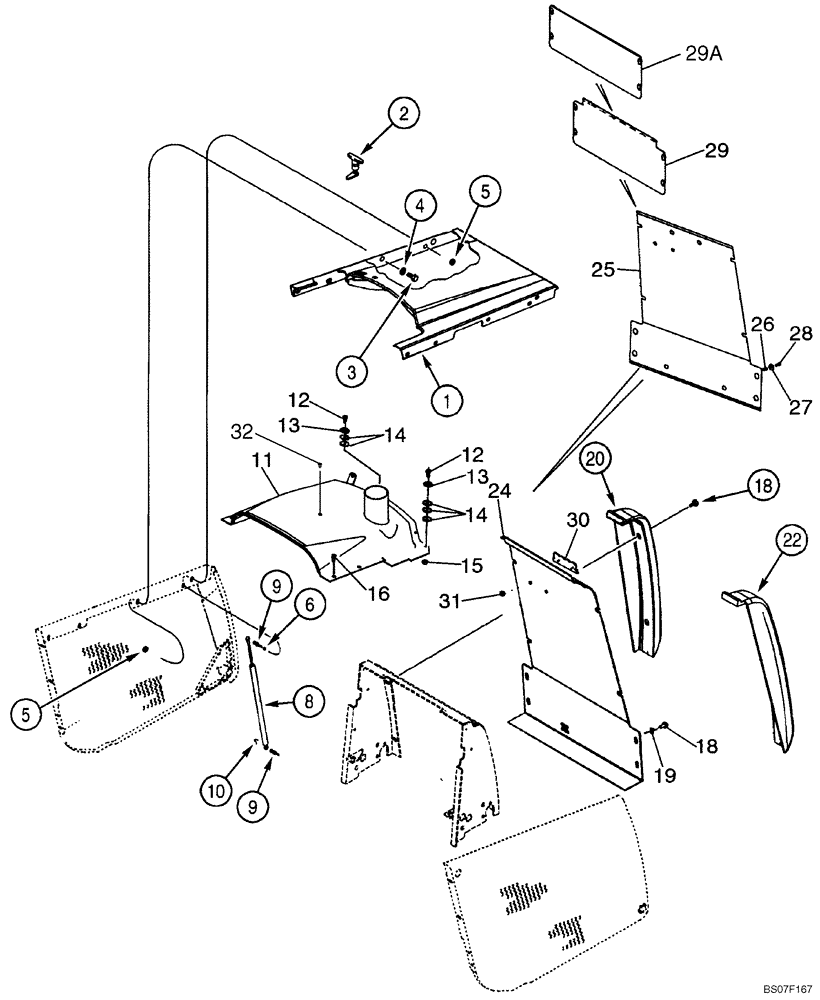

Запчасти Case 580M (09-41) - HOOD - GRILLE (09) - CHASSIS/ATTACHMENTS

1

362340A6

HOOD

Engine; Tilt

1шт.

2

175599A1

LATCH

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

5

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

5шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

114980A1

GAS STRUT

Spring; Counterbalance

2шт.

9

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

Stud

4шт.

10

F44883

CLIP,DIN 71805 - S10

4шт.

11

87439448

PLATE ASSY.

Fixed Hood

1шт.

12

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

3шт.

13

109879A1

SPACER,5.5mm ID x 30mm OD

3шт.

14

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

8шт.

15

86625057

NUT,#10-24, GB

3шт.

16

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

With Washer, M10 x 40

4шт.

18

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

With Washer, M10 x 40

8шт.

19

87423817

WASHER,11mm ID x 40mm OD x 2mm Thk

4шт.

20

381927A1

BUMPER

Left-Hand

1шт.

22

381926A1

BUMPER

Right-Hand

1шт.

24

87402618

SCREEN

GRILLE

1шт.

87431128

SCREEN

Chaff Screen Kit; Incl. Ref 25 - 28, Plus Instructions; No Longer Includes 87402618 Grille or Ref 30, 31

1шт.

25

87444040

SCREEN

Chaff Screen; If Used

1шт.

26

255447A1

THREADED INSERT

4шт.

27

257382A1

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 x 25 x 1.6 mm

4шт.

28

257381A1

BOLT

Hex, 1/4 x 3/4

4шт.

29

87445597

SCREEN

Lower Chaff Screen; Models With Air Conditioning; If Used

1шт.

29a

87344278

SCREEN

Lower Chaff Screen; Models With Air Conditioning; If Used

1шт.

30

186989A1

EMBLEM

Case Emblem

1шт.

31

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

32

353-403

PLUG,Dome, .437" hole, Nylon

Used on ROPS and Malaysian units only

1шт.
