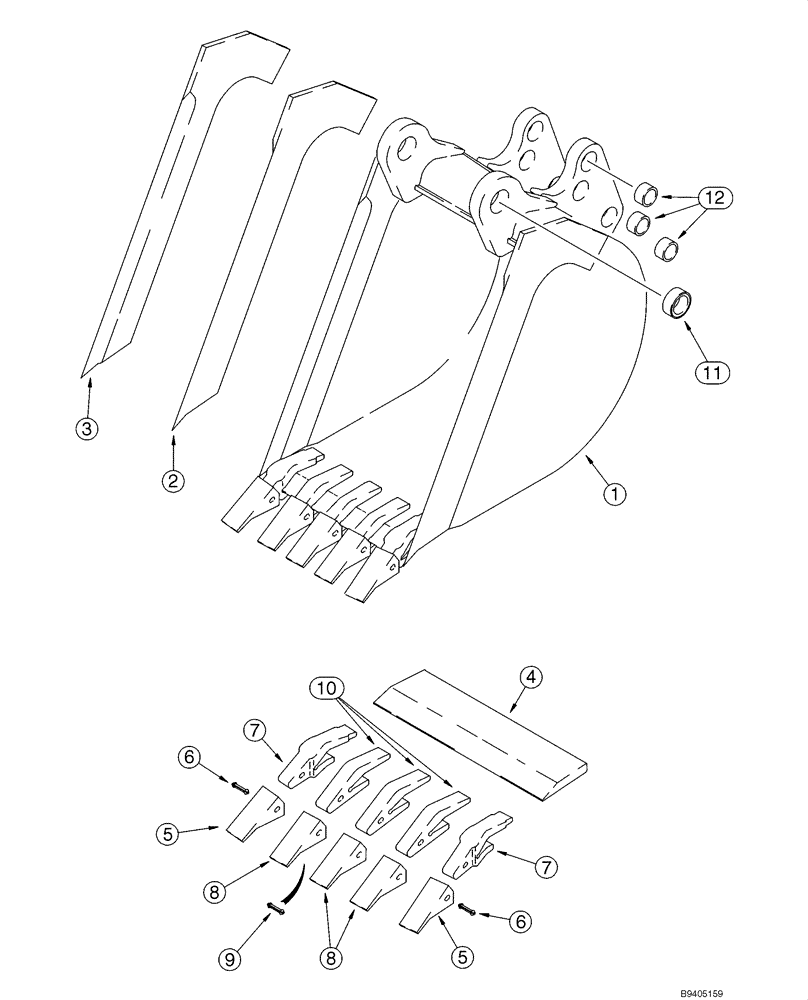

Запчасти Case 580M (09-35) - BUCKET, UNIVERSAL BACKHOE (610 MM (24 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS

1

87724907

BUCKET

610 mm (24 in); With 5 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12; Replaces 141232A2

1шт.

2

141234A1

EDGE, CUTTING

Right-Hand

1шт.

3

141233A1

EDGE, CUTTING

Left-Hand

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

1шт.

D139851

BUCKET TOOTH

Outer; Incl. Ref 5 - 7

2шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

D138157

SHANK

1шт.

D139849

BUCKET TOOTH

Center; Incl. Ref 8 - 10; Order Ref 8 - 10

3шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

10

D48212

SHANK

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

6шт.
