(09-28) - BUCKET, UNIVERSAL BACKHOE (305 MM (12 INCH) WIDE)

Запчасти Case 580M (09-28) - BUCKET, UNIVERSAL BACKHOE (305 MM (12 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS

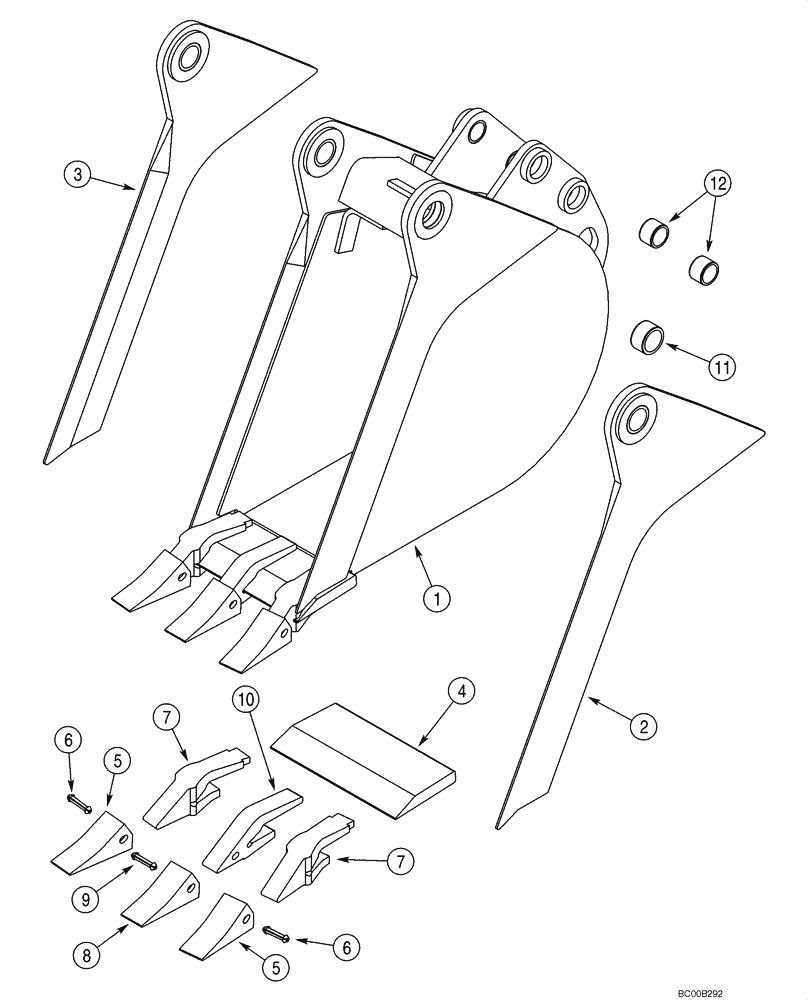

Схема запчастей Case 580M - (09-28) - BUCKET, UNIVERSAL BACKHOE (305 MM (12 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS
2
8
5
1
5
11
6
6
3
7
12
4
7
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87724903

BUCKET

305 mm (12 in); With 3 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12; Replaces 381488A4

1шт.

2

NSS

NOT SOLD SEPARAT

Edge, Right-Hand; Incl. Ref 11

1шт.

3

NSS

NOT SOLD SEPARAT

Edge, Left-Hand; Incl. Ref 11

1шт.

4

D147409

EDGE, CUTTING

1шт.

D139851

BUCKET TOOTH

Outer; Incl. Ref 5 - 7

2шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

D138157

SHANK

1шт.

D139849

BUCKET TOOTH

Center; Incl. Ref 8 - 10; Order Ref 8 - 10

1шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

10

D48212

SHANK

1шт.

11

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

1-3/4 x 2-1/4 x 1

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.
