Запчасти Case 580M (09-27) - BACKHOE - DIPPER, EXTENDABLE (09) - CHASSIS/ATTACHMENTS

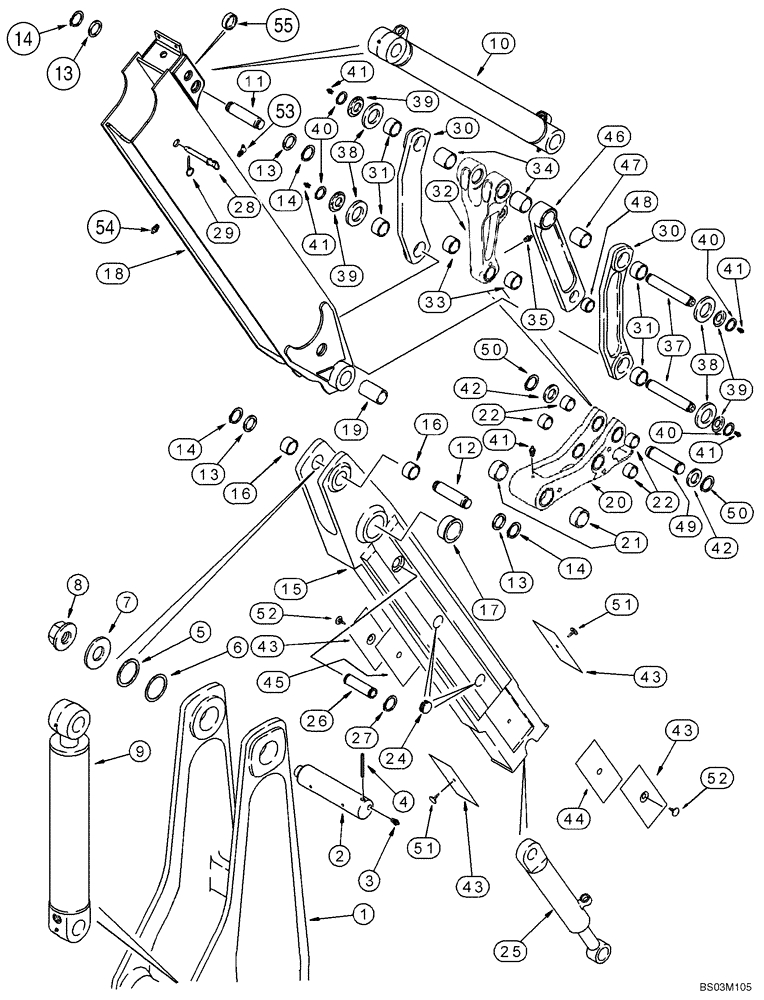

Схема запчастей Case 580M - (09-27) - BACKHOE - DIPPER, EXTENDABLE (09) - CHASSIS/ATTACHMENTS
32
40
33
19
43
27
5
13
13
14
20
47
49
10
54
46
8
42
18
50
51
11
22
1
26
45
21
40
51
43
6
31
42
22
14
14
40
2
41
16
13
48
13
43
39
37
14
53
17
12
44
16
30
4
43
52
41
31
55
41
38
34
28
25
50
41
15
30
41
7
35
24
38
29
3
52
9
39
39

Артикул

Название

Примечание

Количество

1

129883A1

BOOM

Boom, See Figure 09-24

1шт.

2

D132494

PIN,70mm OD x 331mm L

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

135-51652

GROOVED PIN,12.7mm OD x 82.55mm L

1шт.

5

404834A1

SHIM

1шт.

6

404835A1

SHIM

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

1шт.

8

181042A1

FLANGE NUT

Flange, Special

1шт.

9

233114A2

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 685.8mm Stroke

108 ID x 686 mm strk, Dipper; See Figure 08-64

1шт.

9

233114A2R

REMAN-HYD CYLINDER

Reman For New PN 233114A2

1шт.

9

233114A2C

CORE-HYD CYLINDER

Return Number

1шт.

10

128760A1

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 871.7mm Stroke

83 ID x 872 mm strk, Bucket; See Figure 08-65

1шт.

10

128760A1R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

10

128760A1C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

11

D141666

PIN,50mm OD x 199mm L

1шт.

12

129041A1

PIN,50mm OD x 167mm L

1шт.

13

495-81282

WASHER,2 1/16" x 3" x .109"

2шт.

14

103-16175

SNAP RING,#175, Ext

4шт.

122503A1

DIPPER

Inner; Incl. Ref 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Dipper

1шт.

16

D145978

BUSHING,50.19mm ID x 60mm OD x 30mm L

2шт.

17

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 ID x 36 mm lg

2шт.

18

87619781

DIPPER

Outer Dipper; Incl. Ref 53, 54; Replaces 87436235

1шт.

19

307186A1

BUSHING,44.6mm ID x 57.15mm OD x 104mm L

104 mm lg

2шт.

281185A1

COUPLING

Bucket; Incl. Ref 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Coupler, Quick

1шт.

21

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

30 mm lg

2шт.

22

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

29 mm lg

4шт.

24

D133865

PLUG

4шт.

25

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

76 ID x 1068 mm strk, Extendable Dipper, See Figure 08-66

1шт.

25

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

25

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

26

300588A1

PIN,40mm OD x 136mm L

1шт.

27

800-44040

SNAP RING,M40, Ext

2шт.

28

D140247

LOCK PIN,25.4mm OD x 232.6mm L

Transport

1шт.

29

A33509

PIN,11.18mm OD

1шт.

30

348706A1

LINK ASSY.

Bucket Guide, Incl. Ref 31

2шт.

31

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm lg

2шт.

32

400398A1

LINK ASSY.

Bucket Dump, Incl. Ref 33, 34

1шт.

33

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

2шт.

34

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

37

D141142

PIN,50mm OD x 306mm L

306 mm lg

2шт.

38

495-81282

WASHER,2 1/16" x 3" x .109"

4шт.

39

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

4шт.

40

103-16175

SNAP RING,#175, Ext

4шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

42

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

43

451384A1

WEAR PLATE

4шт.

44

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

0.8 mm thk

1шт.

45

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1.6 mm thk

1шт.

46

244790A1

LINK ASSY.

Bucket Dump; Standard Equipment; Incl. Ref 47, 48

2шт.

47

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

1шт.

48

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

1шт.

49

D146288

PIN,44.45mm OD x 167mm L

1шт.

50

103-16175

SNAP RING,#175, Ext

2шт.

51

183443A1

PIN,6.6mm OD x 38.5mm L

2шт.

52

183509A1

PIN,8.3mm OD x 22mm L

2шт.

53

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

54

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

55

396483A1

SPACER

2шт.
