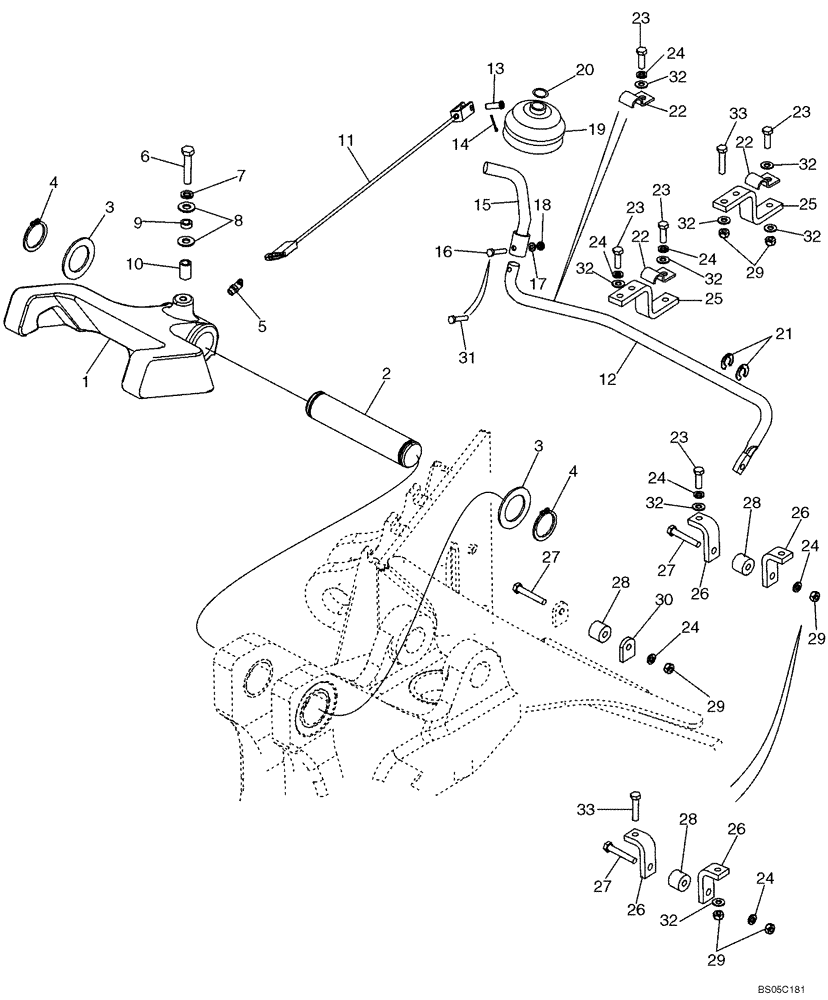

Запчасти Case 580M (09-25) - BOOM LATCH (WITHOUT PILOT CONTROLS) (09) - CHASSIS/ATTACHMENTS

1

379941A1

LATCH

1шт.

2

D129227

PIN,40mm OD x 196mm L

1шт.

3

D144592

WASHER,41mm ID

2шт.

4

800-44040

SNAP RING,M40, Ext

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

6

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

87445245

SPACER,11.06mm ID x 15.88mm OD x 6.4mm L

15.88 OD x 6.4 W x 2.41 mm thick wall; Replaces D143417 15.88 OD x 6.4 W x 2.77 mm thick wall Spacer Used On Some Models

1шт.

10

396092A1

SPACER,11.05mm ID x 15.88mm OD x 24mm L

1шт.

11

87435924

CABLE

1шт.

12

87422696

ROD

Boom Latch Release; 6.5 mm Mounting Hole; If Used

1шт.

12

87441850

ROD,15.9mm OD

Boom Latch Release; 6.0 mm Mounting Hole; If Used

1шт.

13

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

14

432-612

COTTER PIN,3/32" x 3/4"

1шт.

15

87444149

ROD

1шт.

16

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

If used

1шт.

17

892-11006

LOCK WASHER,M6

If Used

1шт.

18

829-1406

NUT,Hex, M6 x 1, Cl 10.9

If Used

1шт.

19

D86664

BOOT

1шт.

20

D143735

CLAMP,19.1mm - 22.2mm

Ring

1шт.

21

D143591

RING, SNAP,12.7mm ID, Ext

RING SNAP CLIP RING, 5/8 dia

2шт.

22

D143723

SHIN

CLAMP, 5/8

2шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2-6шт.

24

892-11008

LOCK WASHER,8mm ID

3-8шт.

25

87449995

BRACKET

Rod; Without Threaded Tapped Holes; Replaces 87422701 Bracket With Threaded Tapped Holes

1шт.

26

87449996

BRACKET

Cable; Without Threaded Tapped Holes; Replaces 87422702 Bracket With Threaded Tapped Holes

2шт.

27

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

28

86984547

GUIDE

Roller, Cable Guide

2шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2-7шт.

30

87432811

BRACKET

TAB

1шт.

31

87041331

BOLT,Hex, M6 x 16mm, Cl 8.8

Includes Loctite; May Replace Ref 16 - 18 On Some Models

1шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6-7шт.

33

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Used with Brackets (Ref 25, 26) without Threaded Tapped Holes

4шт.
