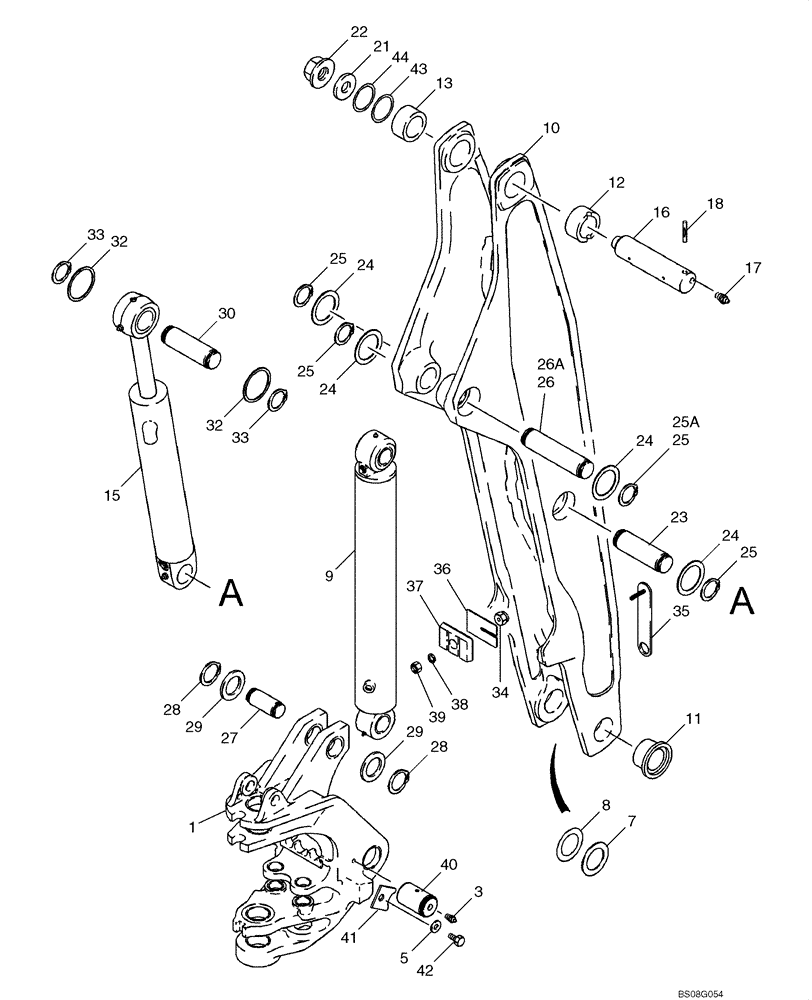

Запчасти Case 580M (09-24) - BACKHOE - BOOM AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

87737557

TOWER

Swing; See Figure 09-23 For Bushings

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

Replaces 496-41081 13/16 x 1-3/4 x 7/32 in Washer Used On Some Models

2шт.

7

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

1шт.

8

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

71 ID x 114 mm

1шт.

9

189653A2

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 981.5mm Stroke

114 ID x 982 mm strk; Boom; See Figure 08-63

1шт.

9

189653A2R

REMAN-HYD CYLINDER

580M SERIES 2 LOADER BACKHOE (TIER 2) (NA), Boom (2/04-)

1шт.

9

189653A2C

CORE-HYD CYLINDER

Return Number

1шт.

10

129883A1

BOOM

Incl. Ref 11 - 13

1шт.

11

D151071

BUSHING,70.19mm ID x 94mm OD x 38mm L

70 ID x 34 mm lg

2шт.

12

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 ID x 44 mm lg; With Slot For Groove Pin; Right-Hand Side

1шт.

13

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 ID x 44 mm lg; Without Slot For Groove Pin; Left-Hand Side

1шт.

15

233114A2

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 685.8mm Stroke

108 ID x 686 mm strk; Dipper; See Figure 08-64

1шт.

15

233114A2R

REMAN-HYD CYLINDER

Reman For New PN 233114A2

1шт.

15

233114A2C

CORE-HYD CYLINDER

Return Number

1шт.

16

D132494

PIN,70mm OD x 331mm L

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

18

135-51652

GROOVED PIN,12.7mm OD x 82.55mm L

Center Grooved

1шт.

21

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

1шт.

22

181042A1

FLANGE NUT

Flange, Special

1шт.

23

129040A1

PIN,50mm OD x 225mm L

1шт.

24

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

4шт.

25

103-16175

SNAP RING,#175, Ext

Used With Ref 26, 129040A1 Pin

4шт.

25a

5135061

CIRCLIP,M45, Ext

Used With Ref 26A, 87713665 Pin

1шт.

26

129040A1

PIN,50mm OD x 225mm L

No Longer Used; For Service Order 87713665, Ref 26A

1шт.

26a

87713665

GROOVED PIN,50mm OD x 225mm L

1шт.

27

142842A1

PIN,50mm OD x 170mm L

1шт.

28

800-44050

SNAP RING,M50, Ext

2шт.

29

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

1шт.

30

129041A1

PIN,50mm OD x 167mm L

1шт.

32

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

1шт.

33

103-16175

SNAP RING,#175, Ext

2шт.

34

184884A1

PLUG

Boom Bumper; 10 ID x 28 OD x 14.5 mm wide; Hex Head; If Used

1шт.

34

87592819

PLUG

Boom Bumper Plug; 11.04 ID x 25.4 OD x 14.5 wide; Headless; If Used

1шт.

35

184723A1

BRACKET, SUPPORTING

1шт.

36

138624A1

BLOCK

1.5 mm thk Shim; If Used

1шт.

37

87491322

BUMPER

Replaces 183938A1, 87371132

1шт.

38

892-11010

LOCK WASHER,M10

If used

1шт.

38

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

Flat; If Used

1шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

40

87326813

GROOVED PIN,70mm OD x 112mm L

Replaces 250663A1

2шт.

41

303646A1

BRACKET

2шт.

42

604-20035

BOLT,Hex, M20 x 35mm, Cl 8.8

2шт.

43

404834A1

SHIM

5 mm thk, Concave

1шт.

44

404835A1

SHIM

5 mm thk, Concave

1шт.
