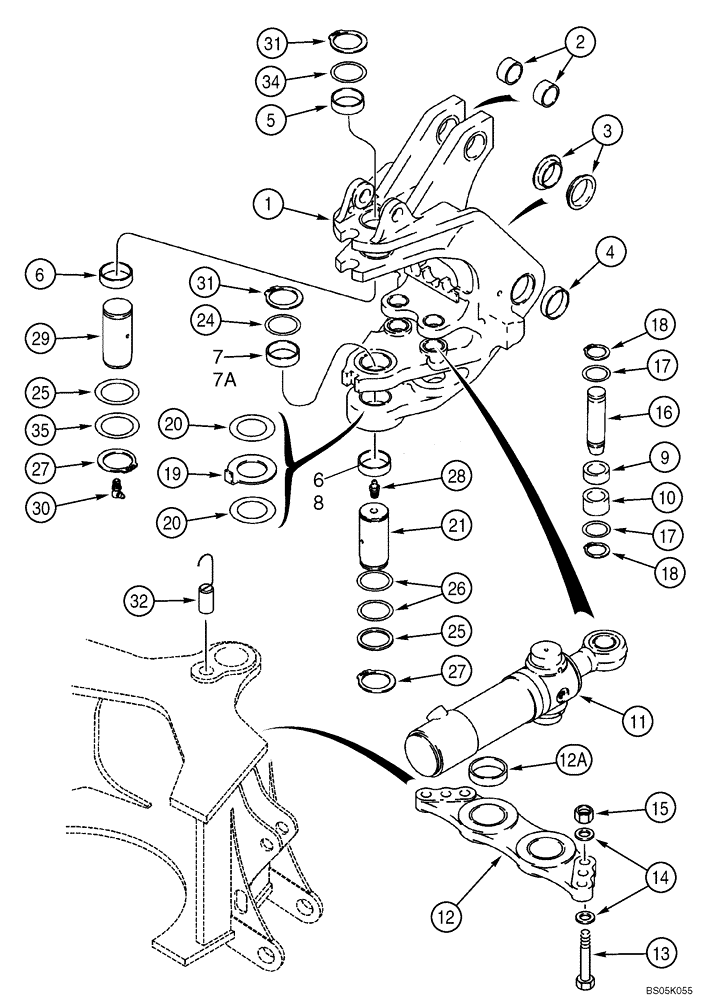

Запчасти Case 580M (09-23) - BACKHOE - SWING TOWER AND SWING CYLINDERS (09) - CHASSIS/ATTACHMENTS

87737557

TOWER

Swing; Incl. 1 - 10

1шт.

1

326806A1

TOWER

Swing

1шт.

2

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm wide

2шт.

3

121778A1

BUSHING,70.19mm ID x 94mm OD x 30mm L

2шт.

4

329998A1

BUSHING,70.19mm ID x 90mm OD x 21.5mm L

2шт.

5

D135557

BUSHING,70.5mm ID x 86mm OD x 30mm L

1шт.

6

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

70.22 ID x 86 OD x 28 mm wide

1-2шт.

7

D151073

BUSHING,70.19mm ID x 86mm OD x 34mm L

70.22 ID x 86 OD x 34 mm wide; If Used

1шт.

7a

D138042

BUSHING

70.22 ID x 86 OD x 34 mm wide; Replaces D151073 Bushing Used On Some Models

1шт.

8

D151074

BUSHING,70.19mm ID x 86mm OD x 28mm L

70.22 ID x 86 OD x 28 mm wide

1шт.

9

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

28.6 mm wide

2шт.

10

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

38.1 mm wide

2шт.

11

188027A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 292mm Stroke

95 ID x 292 mm strk; Swing; See Figure 08-62

2шт.

188027A2R

REMAN-HYD CYLINDER

580M (SERIES 2) (TIER 3) (NA) (2/04-)

2шт.

188027A2C

CORE-HYD CYLINDER

Return Number

1шт.

12

198976A1

PLATE

Incl Ref 12A

1шт.

12a

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 x 90 x 29.3 mm

2шт.

13

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

6шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

15

829-1420

NUT,M20, Cl 10

6шт.

16

386092A2

PIN,50.77mm OD x 194.7mm L

2шт.

17

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

4шт.

18

103-16200

SNAP RING,#200, Ext

4шт.

19

243084A1

LOCK WASHER,72mm ID x 146mm OD x 5mm Thk

5 mm thk

1шт.

20

134167A1

SHIM,72mm ID x 140mm OD x 2.05mm Thk

2.05 mm (.08 in) thk

1шт.

21

D151065

PIN,70mm OD x 152mm L

1шт.

24

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD)

1шт.

25

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

67 x 83 x 2.0 mm

2шт.

26

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD)

1шт.

27

800-40065

SNAP RING,M65, Ext

2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

29

292385A1

PIN,70mm OD x 128.5mm L

1шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

31

800-40070

SNAP RING,M70 Ext

2шт.

32

384815A1

PIN

Swing Stop

1шт.

34

293636A1

WASHER,71mm ID x 83mm OD x 3.05mm Thk

Upper

1шт.

35

D144423

WASHER,66.7mm ID x 86mm OD x 3.4mm Thk

2-5/8 x 3-3/8 x 1/8; Used As A Shim

1шт.
