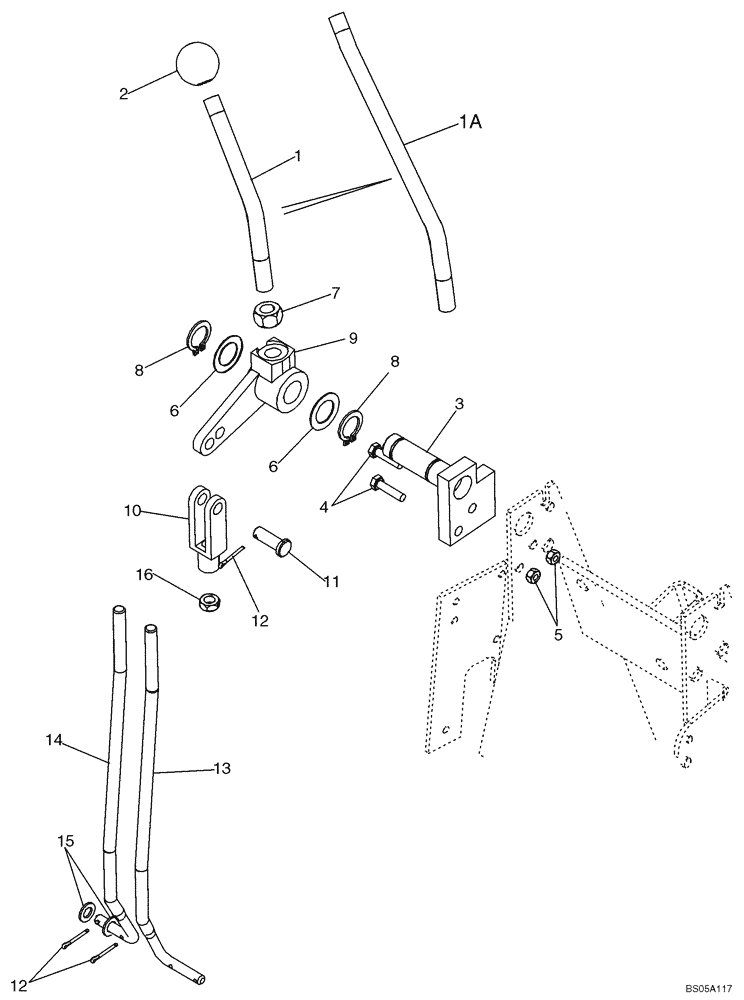

Запчасти Case 580M (09-21) - CONTROLS - BACKHOE AUXILIARY HYDRAULICS, WITHOUT PILOT CONTROLS (09) - CHASSIS/ATTACHMENTS

1

87425118

THREADED ROD

Auxiliary Control; 143 mm (5-5/8 in) long; If Used

1шт.

1a

221477A1

THREADED ROD,1/2"-20 UNF x 250mm L

Auxiliary Control; 250 mm (9-27/32 in) long; If Used

1шт.

2

D59912

KNOB

1шт.

3

87425117

PIVOT

7 or 8 Spool Valve

1шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

Used As A Shim

2шт.

7

425-118

NUT,1/2"-20, G5

1шт.

8

103-1475

SNAP RING,#75, Ext

2шт.

9

182006A1

LEVER

1шт.

10

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

11

D149288

PIN,8.33mm OD x 30.66mm L

Clevis, 3/8

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

3шт.

13

87439135

THREADED ROD

7 Spool Valve; If Used

1шт.

14

87438157

THREADED ROD

8 Spool Valve; If Used

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.
