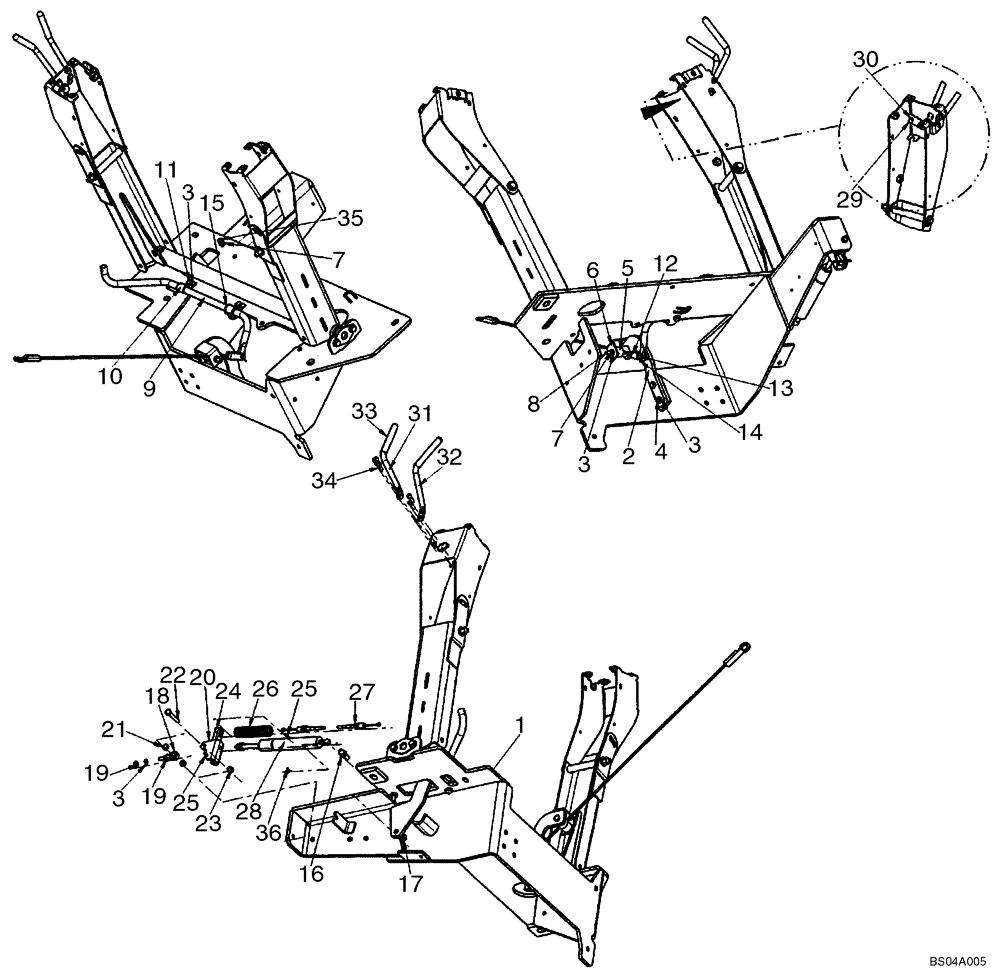

Запчасти Case 580M (09-15) - BACKHOE CONTROL TOWER LEVERS (BOOM LATCH), WITH PILOT CONTROLS (09) - CHASSIS/ATTACHMENTS

1

87440711

TOWER

Pilot Control Tower Assembly; See Figure 09-13

1шт.

2

86984544

BRACKET

Roller Mounting

1шт.

3

892-11008

LOCK WASHER,8mm ID

6шт.

4

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

5

86984547

GUIDE

2шт.

6

86984545

BRACKET

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

9

87422696

ROD

Boom Latch Release, See Figure 09-25A; 6.50 mm (1/32 in) Mounting Hole At Ref 2 Lever, If Used

1шт.

9

87441850

ROD,15.9mm OD

Boom Latch Release, See Figure 09-25A; 6.00 mm (1/64 in) Mounting Hole At Ref 2 Lever, If Used

1шт.

10

D143723

SHIN

Clamp

2шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

87435924

CABLE

Boom Latch

1шт.

13

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used with Ref 13 and 14

1шт.

14

432-612

COTTER PIN,3/32" x 3/4"

1шт.

15

D143591

RING, SNAP,12.7mm ID, Ext

RING SNAP

2шт.

16

85824067

BALL STUD,M10 x 1.5mm x 39mm L

BALL PIN Stud

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

18

85824081

BALL JOINT,7.94mm ID x 47.6mm L

1шт.

19

425-115

NUT,5/16"-24, G5

2шт.

20

85824080

BEZEL

1шт.

21

85821520

SPACER,8.3mm ID x 14.3mm OD x 5.3mm L

2шт.

22

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

23

231-1445

NUT,5/16"-18, GB

1шт.

24

86984549

CHANNEL

1шт.

25

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

26

87443692

SPRING,Extension, 16.5mm OD x 54.8mm L

1шт.

27

87437806

FLEXIBLE CABLE,1036mm L

Pilot Control Positioner

1шт.

28

86989616

GAS STRUT

Cylinder

1шт.

29

140-108

SCREW,Cross Pan Hd, #10 - 24 x 3/4"

1шт.

30

231-14409

NUT,#10-24, GB

1шт.

31

87418368

ROD,12.7mm OD

Tower Stationary

1шт.

32

87418369

ROD,12.7mm OD

Tower Position

1шт.

33

87442409

GRIP

2шт.

34

565-104

HEX SOC SCREW,M6 x 20mm, Cl 8.8

If used

4шт.

34

87303781

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

Polished; If Used

4шт.

34

87310098

BOLT,M6 x 20 Full SST BLO

Hex Flange, M6 x 20, Black Oxide; If Used

4шт.

35

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

36

3233348R1

CLIP

1шт.
