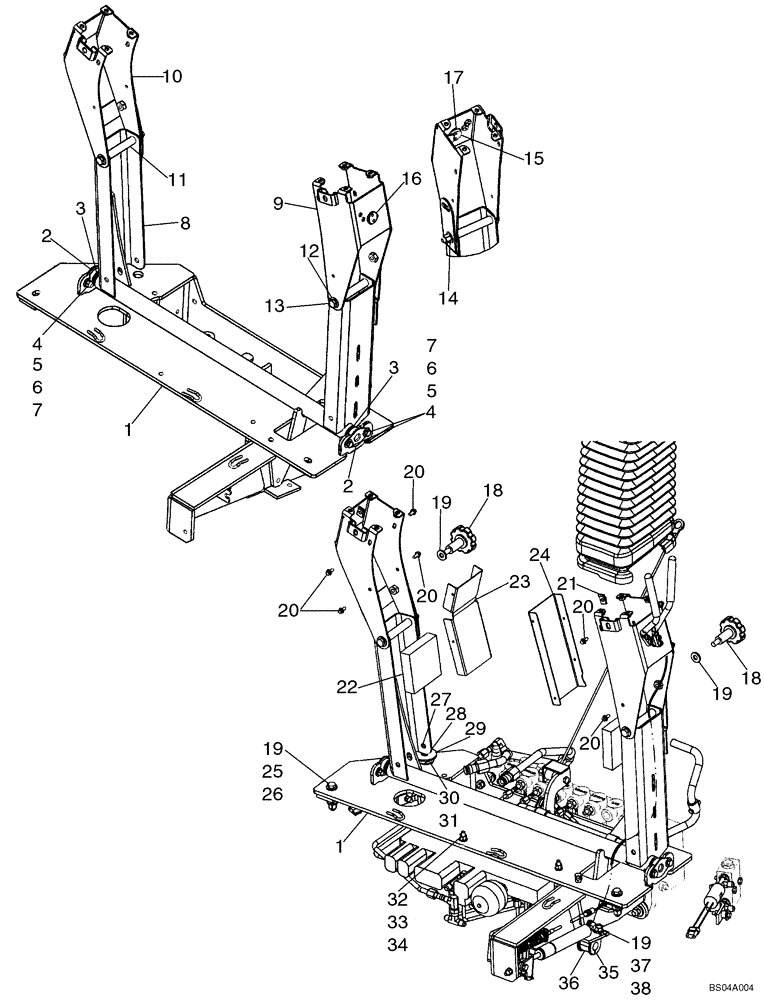

Запчасти Case 580M (09-13) - BACKHOE CONTROL TOWER SUPPORT, WITH PILOT CONTROLS (09) - CHASSIS/ATTACHMENTS

87440711

TOWER

Tower Assembly; Pilot Controls; Includes Ref 1 - 17

1шт.

1

87440710

SUPPORT

Bracket, Tower

1шт.

2

D148993

BEARING,19.06mm ID

2шт.

3

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

Seal

4шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

87435275

PIVOT ASSY.

1шт.

9

87440704

SUPPORT

RH Joystick Mounting

1шт.

10

87440706

SUPPORT

LH Joystick Mounting

1шт.

11

87329475

SPACER,11.06mm ID x 15.88mm OD x 91mm L

Split; Replaces 86983278 Non-Split Spacer Used On Some Models

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

87431529

LEVER

Control Tower Release

1шт.

16

103-11100

SNAP RING,#100, .925", Ext

Retaining

1шт.

17

87405706

WAVE WASHER,27mm ID x 34mm OD x 2.52mm Thk

Wave, 1 inch

1шт.

18

87437688

KNOB

Lateral Adjustment Pilot Control Tower

2шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

20

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

Flange Head, M6 x 13, Self-Tapping

8шт.

21

833-40406

NUT,M6, U

Spring

2шт.

22

87425696

FOAM,Pad

2шт.

23

87431301

SHIELD

Shield, Left-Hand

1шт.

24

87431300

SHIELD

RH

1шт.

25

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

27

87450914

BOLT,Hex, M10 x 40, Cl. 8.8

Locking, M10 x 40; Replaces 87040885 M10 x 45 Bolt Used On Some Models

2шт.

28

892-11010

LOCK WASHER,M10

2шт.

29

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

17/32 x 2 x 1/8; If Used

1шт.

30

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

Belleville

1шт.

31

87440381

SPACER,11.1mm ID x 19.05mm OD x 9.5mm Thk

1шт.

32

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

33

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

34

864-8055

HEX SOC SCREW,M8 x 55mm, Cl 8.8

2шт.

35

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

1шт.

36

D74182

GROMMET,3/4" ID x 1.46" L

Isolation Block

1шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

38

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.
