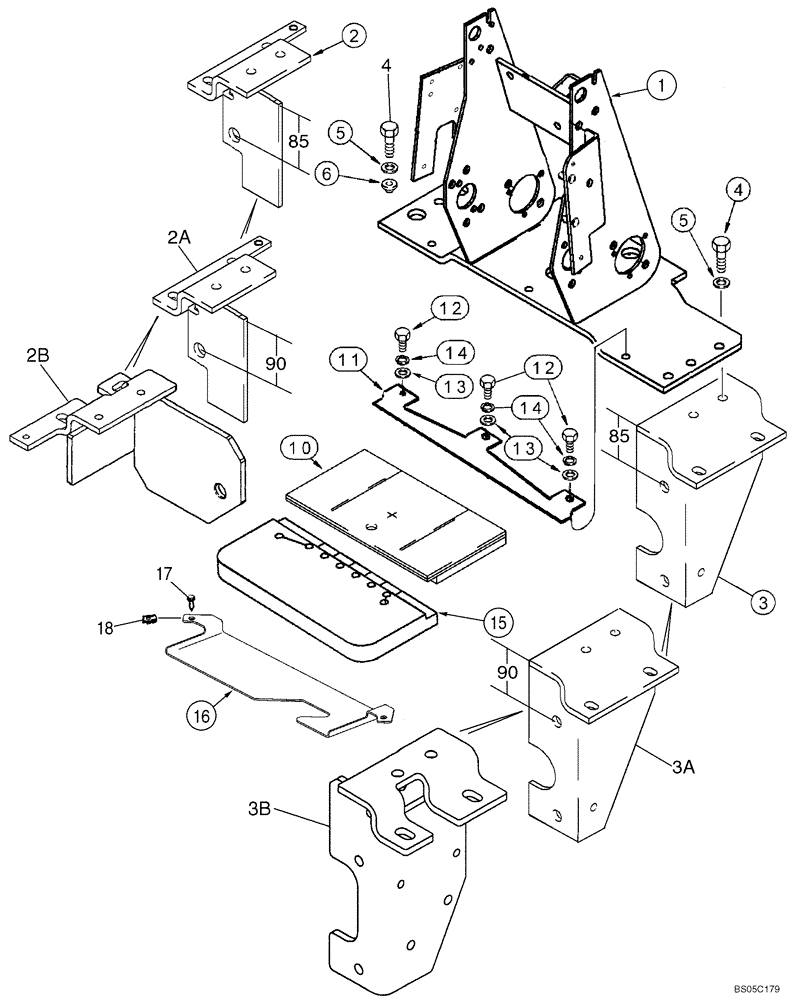

Запчасти Case 580M (09-12) - BACKHOE CONTROL TOWER SUPPORT AND SEALS, WITHOUT PILOT CONTROLS (09) - CHASSIS/ATTACHMENTS

1

87418516

SUPPORT

1шт.

2

86985341

BRACKET, SUPPORTING

Left-Hand; Distance Between Center of Hole and Top Edge Is 85 mm (3-11/32 in); Used With Ref 3; No Longer Used, When Replacing This Bracket, You Must Also Replace Ref 3 Bracket With Ref 2A and 3A

1шт.

2a

87448057

BRACKET, SUPPORTING

Left-Hand; Distance Between Center of Hole and Top Edge Is 90 mm (3-35/64 in); Used With Ref 3A; If Used

1шт.

2b

87448059

SUPPORT

LH; Used With Ref 3B; If Used

1шт.

3

86985339

BRACKET, SUPPORTING

Right-Hand; Distance Between Center Hole and Top Edge Is 85 mm (3-11/32 in); Used With Ref 2; No Longer Used, When Replacing This Bracket, You Must Also Replace Ref 2 Bracket With Ref 2A and 3A

1шт.

3a

87448055

BRACKET, SUPPORTING

Right-Hand; Distance Between Center Hole and Top Edge Is 90 mm (3-35/64 in); Used With Ref 2A; If Used

1шт.

3b

87452627

SUPPORT

RH; Used With Ref 2B; If Used

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

6

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

2шт.

10

400069A1

FOAM

1шт.

11

87418518

SUPPORT

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

892-11008

LOCK WASHER,8mm ID

3шт.

15

87439210

FOAM

1шт.

16

397911A1

BRACKET

1шт.

17

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

M6 x 25, Includes Washer, Stainless Steel; Replaces 233724A1 Non-Stainless Steel Screw Used On Some Models

2шт.

18

833-40406

NUT,M6, U

2шт.
