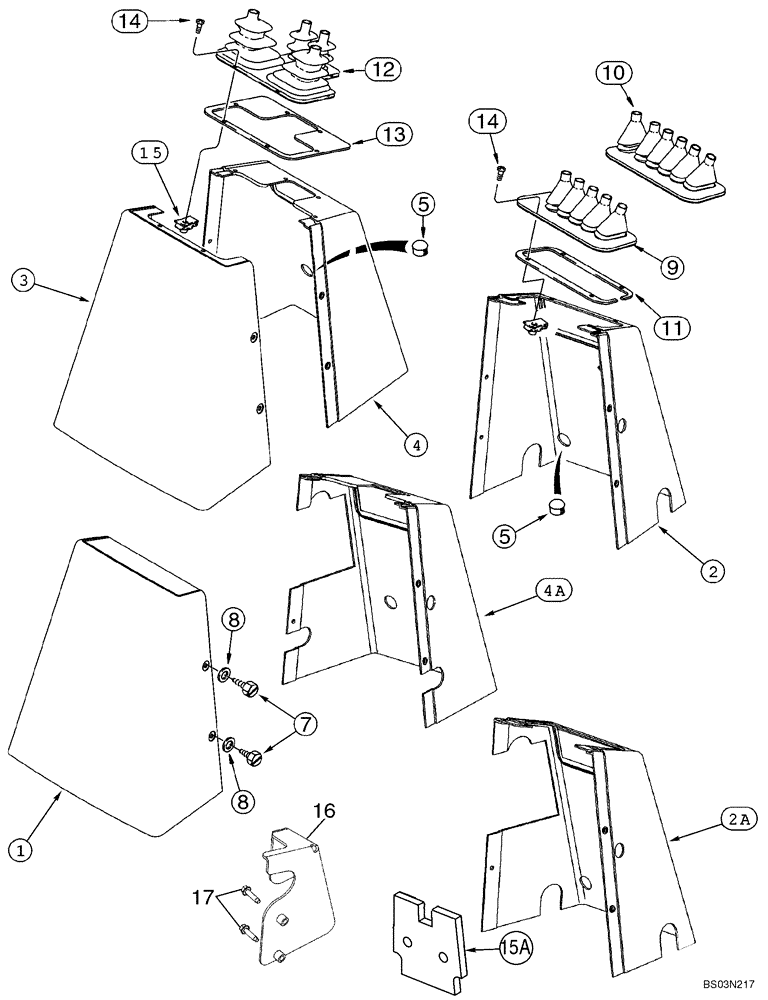

Запчасти Case 580M (09-11) - COVERS - BACKHOE CONTROL TOWER, WITHOUT PILOT CONTROLS (09) - CHASSIS/ATTACHMENTS

1

390759A1

COVER

Rear; All Models With Foot Swing

1шт.

2

390760A1

COVER

Front; Foot Swing; Without Auxiliary Hydraulics

1шт.

2a

87411083

COVER

Front; Foot Swing; With Auxiliary Hydraulics

1шт.

3

390758A1

COVER

Rear; All Models With Hand Swing

1шт.

4

390690A1

COVER

Front; Hand Swing; Without Auxiliary Hydraulics

1шт.

4a

87411084

COVER

Front; Hand Swing; With Auxiliary Hydraulics

1шт.

5

353-411

PLUG,Dome, 1.000" hole, Nylon

1-2шт.

7

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

M6.3 x 16 st, Stainless Steel; Replaces 779-37616 Non-Stainless Steel Screw Used On Some Models

5шт.

8

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

9/32 ID x 5/8 OD x 1/16 thk, Stainless Steel; Replaces 195-140 Non-Stainless Steel Washer Used On Some Models

5шт.

9

D149866

BOOT

5 Control Levers

1шт.

10

D149867

BOOT

6 Control Levers

1шт.

11

136822A1

RETAINER

1шт.

12

D149868

BOOT

4 Control Levers

1шт.

13

136824A1

LARGE PLATE

PLATE, LARGE Used With Ref 12 Only

1шт.

14

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

No. 10 x 1/2, Stainless Steel; Replaces 140-106 Non-Stainless Steel Screw Used On Some Models

4шт.

14

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel; Used With Ref 13 Retainer; Replaces 140-107 Non-Stainless Steel Screw Used On Some Models

6шт.

15

131-861

SPRING NUT,Tinn, U, #10-24

(4) used with Ref 11 retainer; (6) used with Ref 13 retain

4-6шт.

15a

397870A3

FOAM INSULATION

Front and Rear Console Covers; Noise Barrier; Adhesive Back

2шт.

16

87425122

BRACKET

Models With Backhoe Auxiliary Hydraulics

1шт.

87430677

DECAL

Auxiliary Hydraulics

1шт.

17

281-14716

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

2шт.
