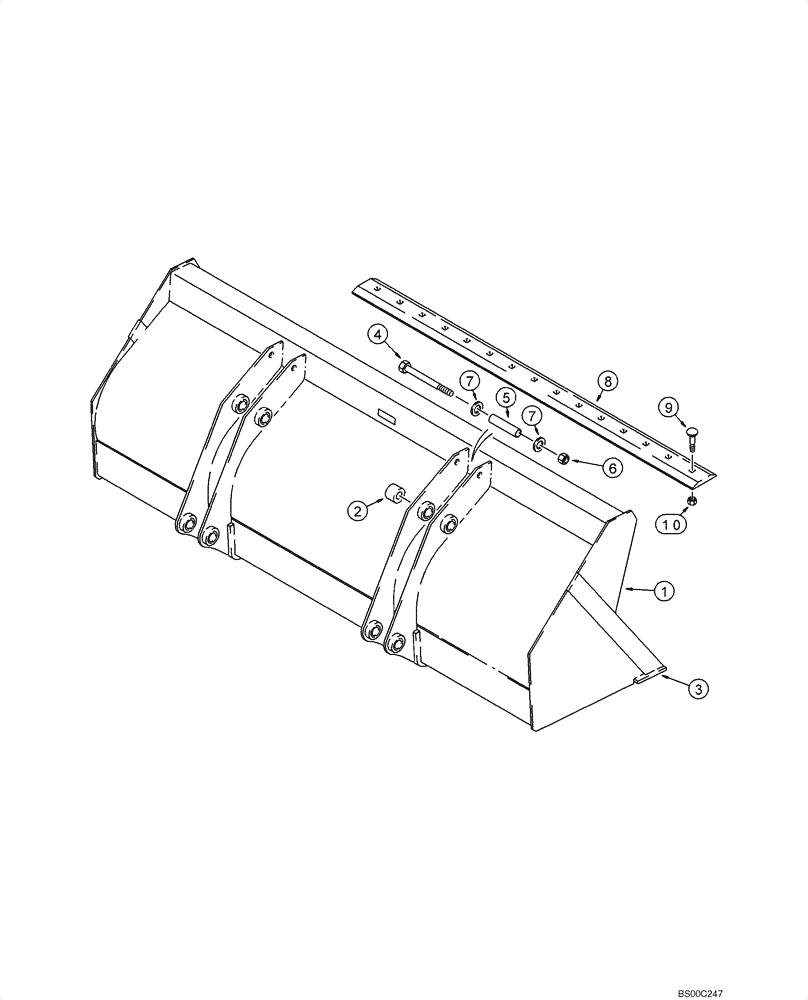

Запчасти Case 580M (09-07) - BUCKET, LOADER LONG LIP (93 IN) (09) - CHASSIS/ATTACHMENTS

87368710

BUCKET

2362 mm (93 in), Without Bucket Teeth; Assembly Includes Bolt-On Cutting Edge; Incl. Ref 1 - 10; Order Through Parts Marketing; Replaces 142687A1 or 87441059 Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket, Incl. Ref 2, 3

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

3

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

Weld-On

1шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

5

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

8

185506A1

CUTTING EDGE

Blade, Bolt-On, Tan; Replaces 87375240 Unpainted Cutting Edge

1шт.

9

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

10

429-1012

NUT,3/4"-10, G8

10шт.
