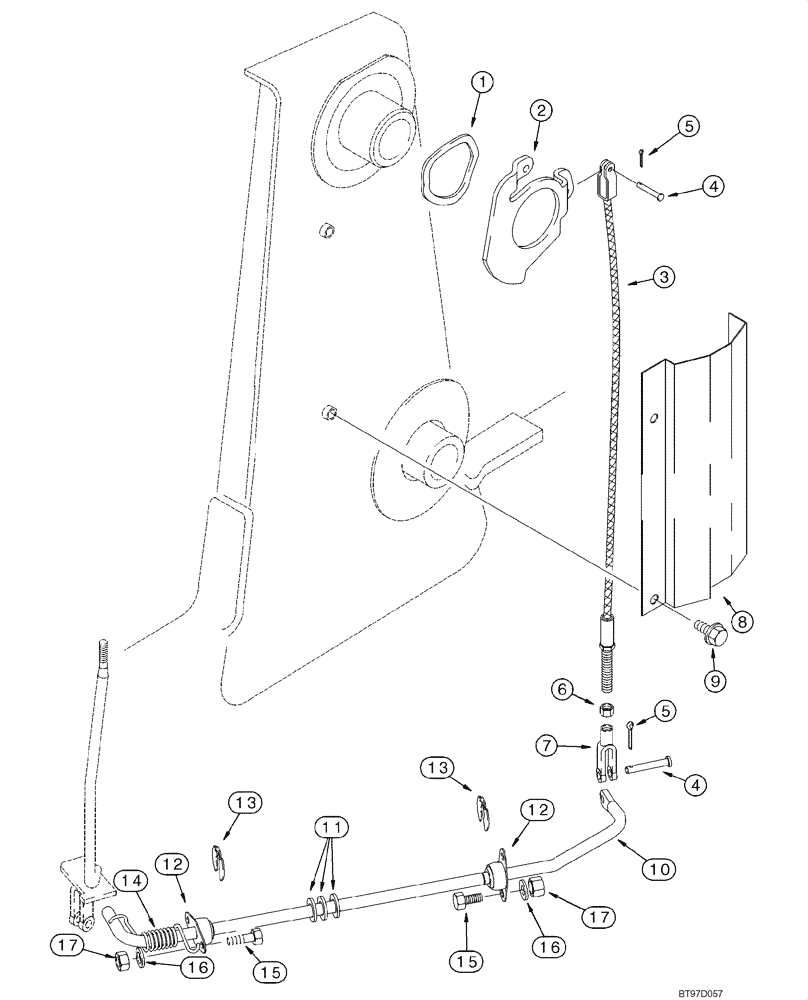

Запчасти Case 580M (09-03) - CONTROLS - LOADER SELF-LEVELING (09) - CHASSIS/ATTACHMENTS

1

137283A1

WAVE WASHER,85.6mm ID x 109.22mm OD x 1.14mm Thk

1шт.

2

142404A1

CAM

Self Leveling (Return to Dig)

1шт.

3

87428645

CABLE,682mm L

Self-Leveling

1шт.

4

D149287

PIN,7.9mm OD x 26.72mm L

2шт.

5

432-612

COTTER PIN,3/32" x 3/4"

2шт.

6

425-115

NUT,5/16"-24, G5

1шт.

7

239406A1

CLEVIS,5/16-24"

5/16

1шт.

8

139865A1

SHIELD

1шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

May Be Replaced By (2) 614-10020 M10 x 20 Bolts, (2) 895-11010 Washers Used On Some Models

2шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

87417601

ROD ASSY.

Incl. Ref 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Rod

1шт.

11

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

3шт.

12

L15401

BEARING,15.89mm ID

2шт.

13

D95096

SNAP RING,M15.88 x 1.27mm Thk

2шт.

14

124721A1

SPRING,Extension, 19mm ID x 61mm L

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.
